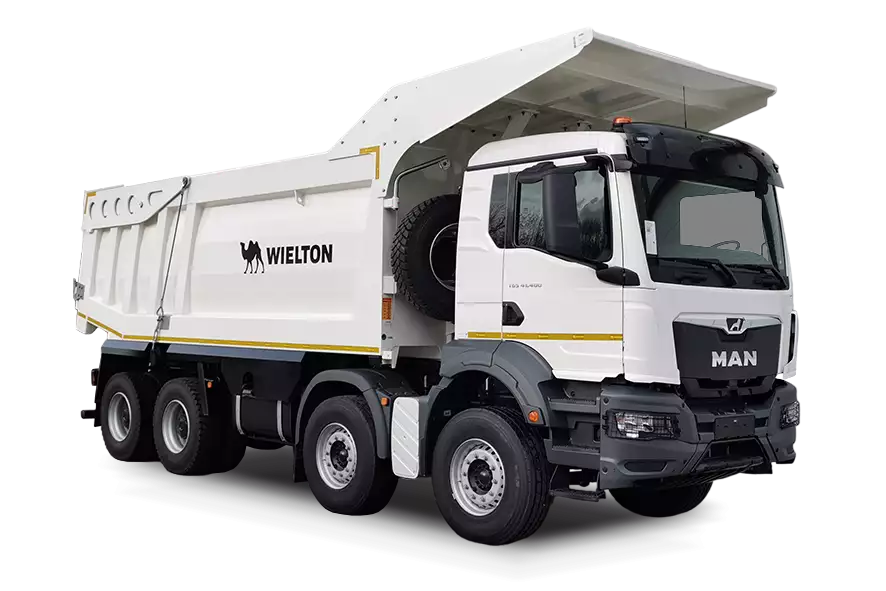

MAN TGS 41.400 BB CH 8x4 Tipper Truck

Price on request

  • Stock number VMA1541
  • Superstructure Tipper Truck
  • Construction make Wielton
  • Axle configuration 8x4
  • Engine power 400hp/294kW
  • Emission EURO-2
  • Fuel Diesel
  • Engine type D2066LF06
  • Cylinder capacity 10.518 cc
  • Cylinders 6
  • Transmission Automatic
  • Gearbox TipMatic 12.28OD
  • Suspension Spring
  • Tyres F: 385/65R22.5 - R: 315/80R22.5
  • Wheelbase 2.980 mm
  • Cabin Day
  • Total weight GVW 44.000 kg
  • Vehicle length 9.300 mm
  • Vehicle width 2.500 mm
  • Vehicle height 3.980 mm
  • Model year 2023
  • Production year 2022
  • Remarks Fuel tank: 400 ltr.
    Air conditioning
    Front axle suspension: 9.5 t.
    Rear axle suspension: 16 t.

    Equipped with 23 cbm. Wielton rear tipper:
    Type: Master mine
    Side walls 8 mm.
    Floor 12 mm. HB450
    FOPS cabin protection
    Inclined floor at rear part / SCOW end
    Mining spec tail gate

    Complete specification in PDF.
