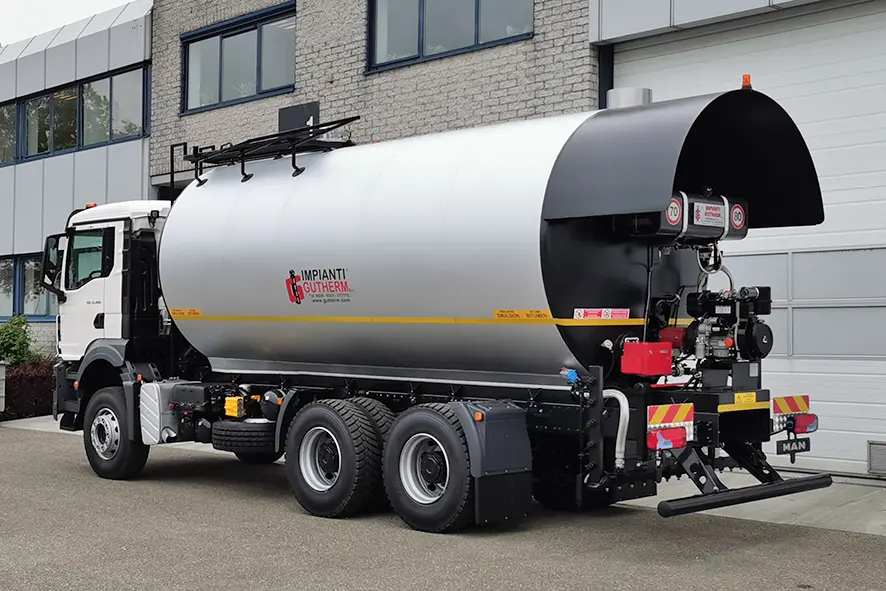

MAN TGS 33.400 BB CH 6x4 Bitumen Tank Sprayer
€ 199.000
Net unit price EXW
General
- ID
- VMA1568
- Brand
- MAN
- Construction
- Bitumen Tank Sprayer
- Construction brand
- Impianti
- Construction volume
- 20.000 Ltr.
- Fuel
- Diesel
- Production year
- 2023
- Model year
- 2023
- Vehicle status
- New / Unused
Chassis
- Wheel base
- 3.900 mm
- GVW
- 33.000 kg
- Axle configuration
- 6x4
- Suspension
- Spring
Engine
- Engine type
- D2066LF06
- Emission code
- EURO-2
- Engine power
- 400hp/294kW
Cabin
- Cabin
- Day
- Steering
- Left hand drive
Gearbox
- Transmission
- Automatic
- Gearbox
- TipMatic 12.28 OD
- PTO
- NH/1C
Dimensions
- External dimension
- 9.400 x 2.500 x 3.970 mm
- Empty weight
- 15.000 kg
Remarks
Fuel tank: 400 ltr.Air conditioning
Equipped with 20.000 ltr. Impianti bitumen tank:
Wave breakers within internal section
Man-hole 500 mm. with stairs, service gang-way with folding handrail
Bitumen pump driven by diesel engine
24.000 ltr/hour capacity (400 ltr/min)
Gasoil heating 130.000 Kcal/h
150 ltr. fuel tank for burner and diesel engine supply, spraying bar and pump washing.
Manual spraying hose with 4 mtr. lenght
Spraying bar adjustable from 2.5 mtr. to 4 mtr. wide and height adjustable.
Complete specification in PDF.
