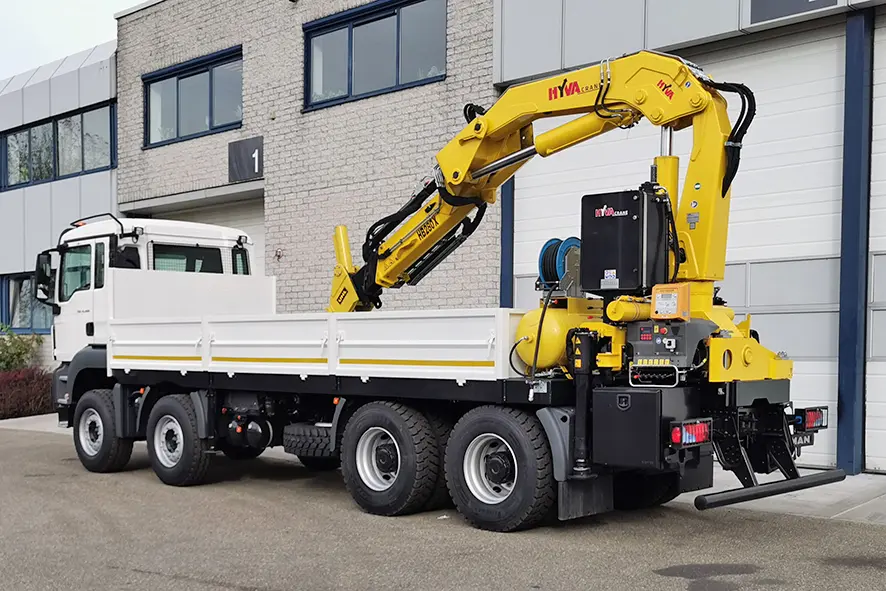

MAN TGS 41.400 BB-WW 8x4 Crane Truck
€ 197.500
Net unit price EXW
General
- ID
- VMA1517
- Brand
- MAN
- Construction
- Crane Truck
- Construction brand
- Hyva
- Fuel
- Diesel
- Production year
- 2020
- Model year
- 2021
- Vehicle status
- New / Unused
Chassis
- Wheel base
- 3.505 mm
- GVW
- 44.000 kg
- Axle configuration
- 8x4
- Suspension
- Spring
Engine
- Engine type
- D2066LF06
- Emission code
- EURO-2
- Engine power
- 400hp/294kW

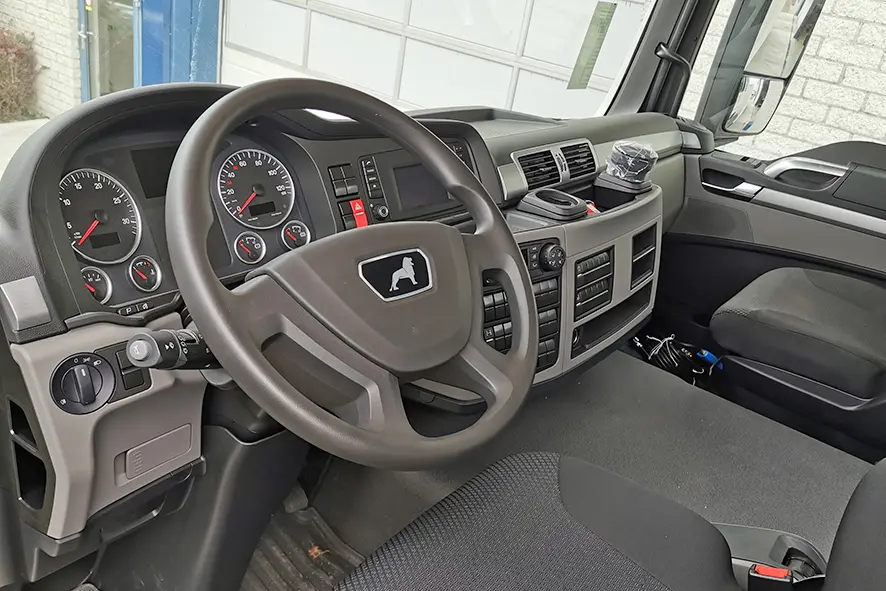

Cabin
- Cabin
- Day
- Steering
- Left hand drive
Gearbox
- Transmission
- Automatic
- Gearbox
- TipMatic 12.28 OD
- PTO
- NH/4C
Dimensions
- External dimension
- 9.000 x 2.500 x 3.800 mm
- Empty weight
- 20.000 kg
Remarks
Fuel tank: 400 ltr.Air conditioning
Equipped with crane and flatbed:
Type: Hyva HB280X
Lifting moment 25,9 T/M
UHL2705 Tire handler
Tire size Min. 17.20 x 25 / Max. 27.00 x 49
Operating range: 1.220 mm. to 2. 700 mm.
Compressor with large air tank fitted
Including air hose on reel
4 hydraulic stabilizers
Oil cooler
Remote control
Lifting capacity:
9.785 kg / 2.55 m
6.005 kg / 4.30 m
4.245 kg / 6.07 m
Open flatbed body with foldable sideboards
Flatbed body dimensions (LxWxH): 6.300 x 2.500 x 580 mm.
