MAN TGS 41.400 BB CH 8x4 Camion grue

Price on request

General

ID: VMA5339
Marque: MAN
Construction: Camion grue
Marque de construction: Stellar
Carburant: Gasoil
Année-modèle: 2026
État du véhicule: Neuf

Châssis

Empattement: 4.105 mm
Poids Total Autorisé en Charge (PTAC): 44.000 kg
Configuration des essieux: 8x4
Suspension: Suspension à lames

Moteur

Type de moteur: D2066LF06
Code d'émission: EURO-2
Puissance moteur: 400hp/294kW

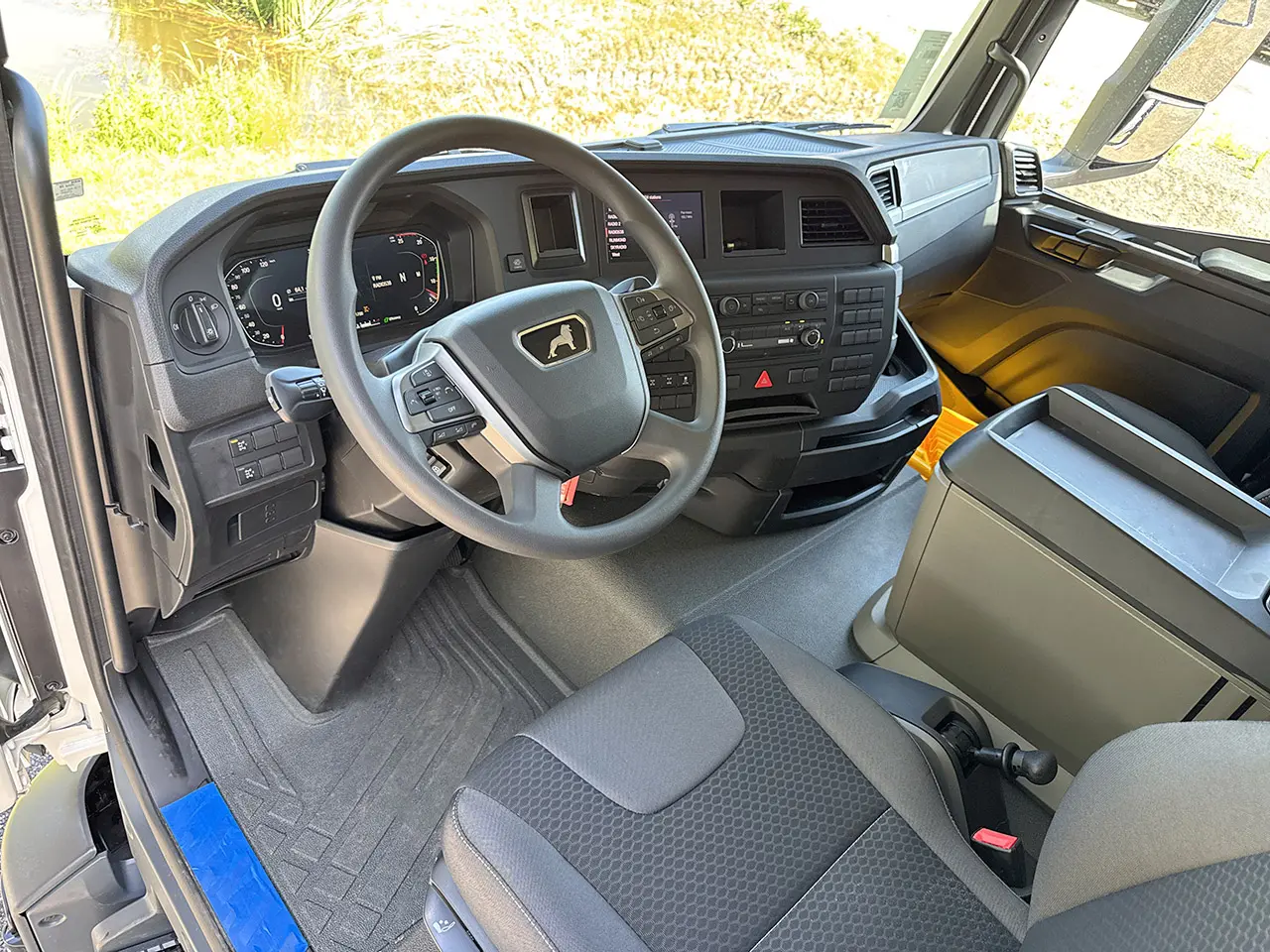

Cabine

Cabine: Cabine courte
Conduite: Volant à gauche

Boîte de vitesses

Transmission: Automatique
Boîte de vitesses: TipMatic 12.28 OD
PDF: NTX/10C

Remarques (Anglais)

Fuel tank: 300 ltr.
Air conditioning

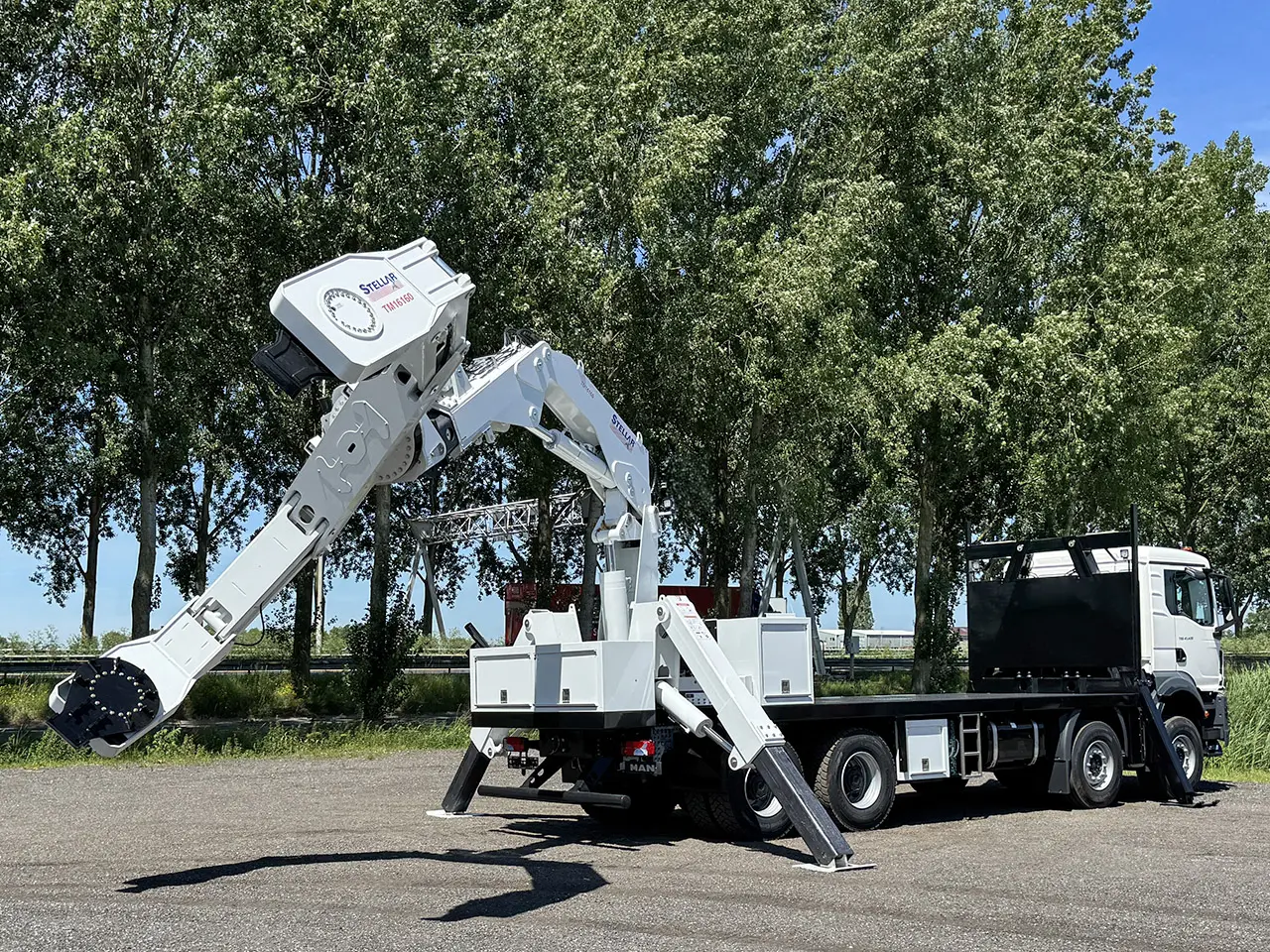

Equipped with Stellar crane with tire handler and flatbed:
Type: Stellar 28000 OTR
Crane Rating: 38.73 T/M
Standard Boom Length: 4.01 m
Max. Horizontal Reach: 4.95 m
Max. Vertical Lift: 7.62 m
315 degree power (planetary reduction)
Proportional paddle controls
Stabilizers front and rear
Compressor SHD-245 direct driven, mounted above deck for maintenance
4-cylinder, 2-stage capable of 110 CFM @ 175 PSI
Power Supply Req: 16 gpm @ 4200 psi - PTO & Pump

Lifting capacity:
12.701 kg / 3.05 m
9.662 kg / 4.01 m
7.802 kg / 4.95 m

TM16160 Tire Manipulator
Tireman Capacity: 7,484 kg / 4.57 m
Clamping Span: 40” to 158” (102 cm to 401 cm)
Clamping Pad Rotation: Continuous 360-degree power
Tilt: +80 degrees to -20 degrees

Complete specification in PDF.

Pre-Order Status:
Trucks are not yet in stock, they are in production and delivery to us will take place from 03/2026 - 04/2026. Please contact us for further information. Pictures do not represent the exact final product and will be updated when the trucks arrive.
