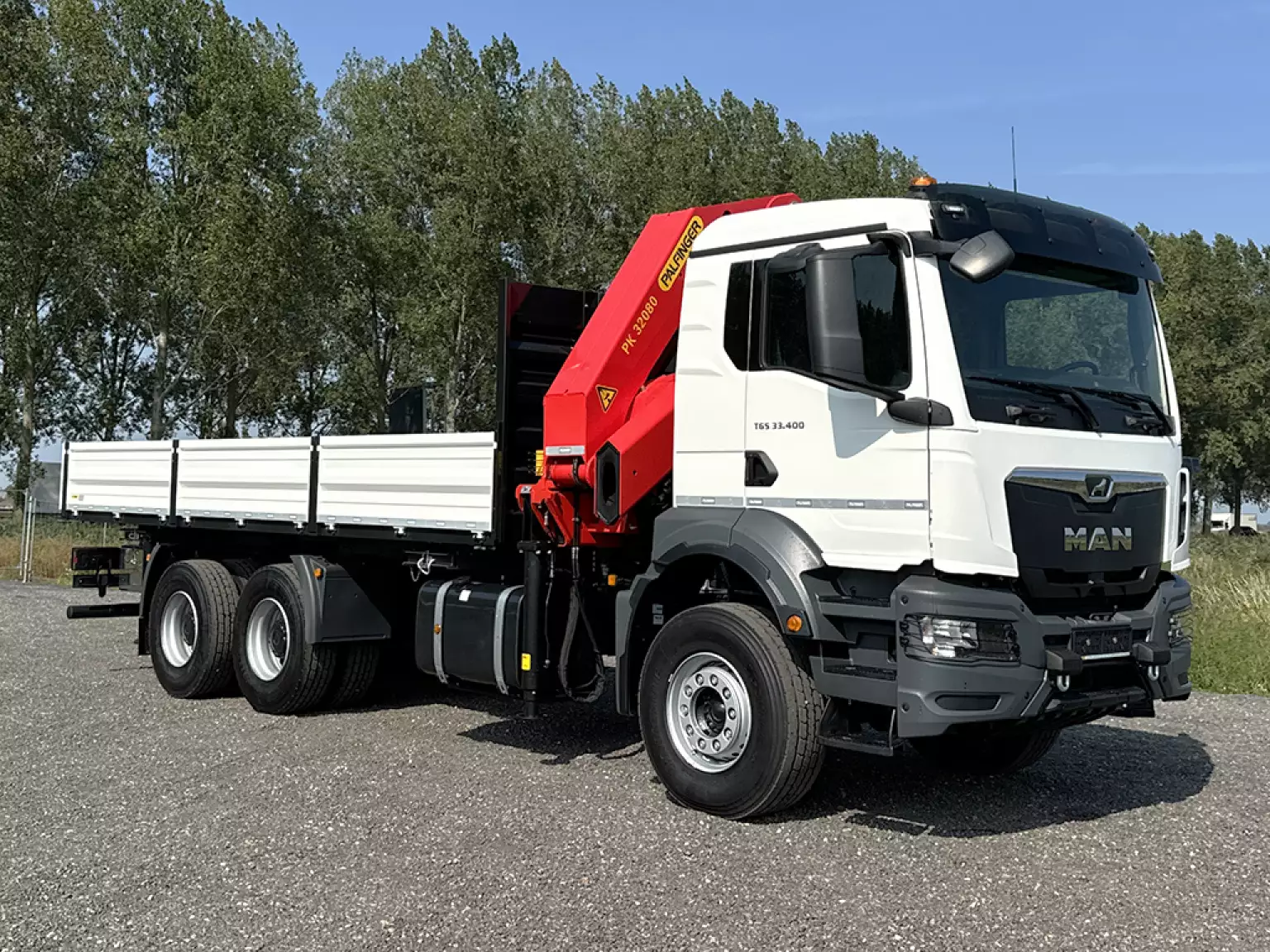

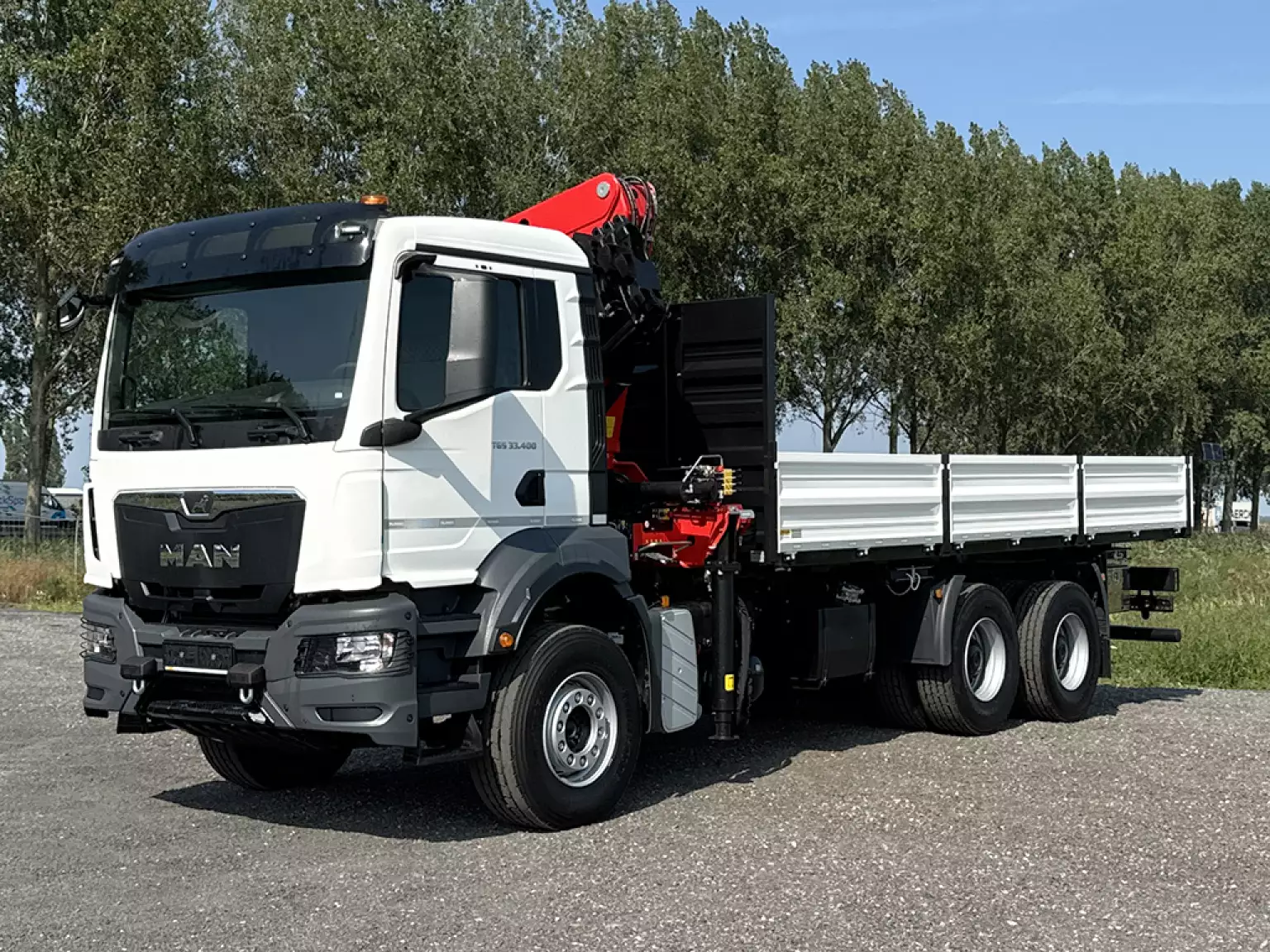

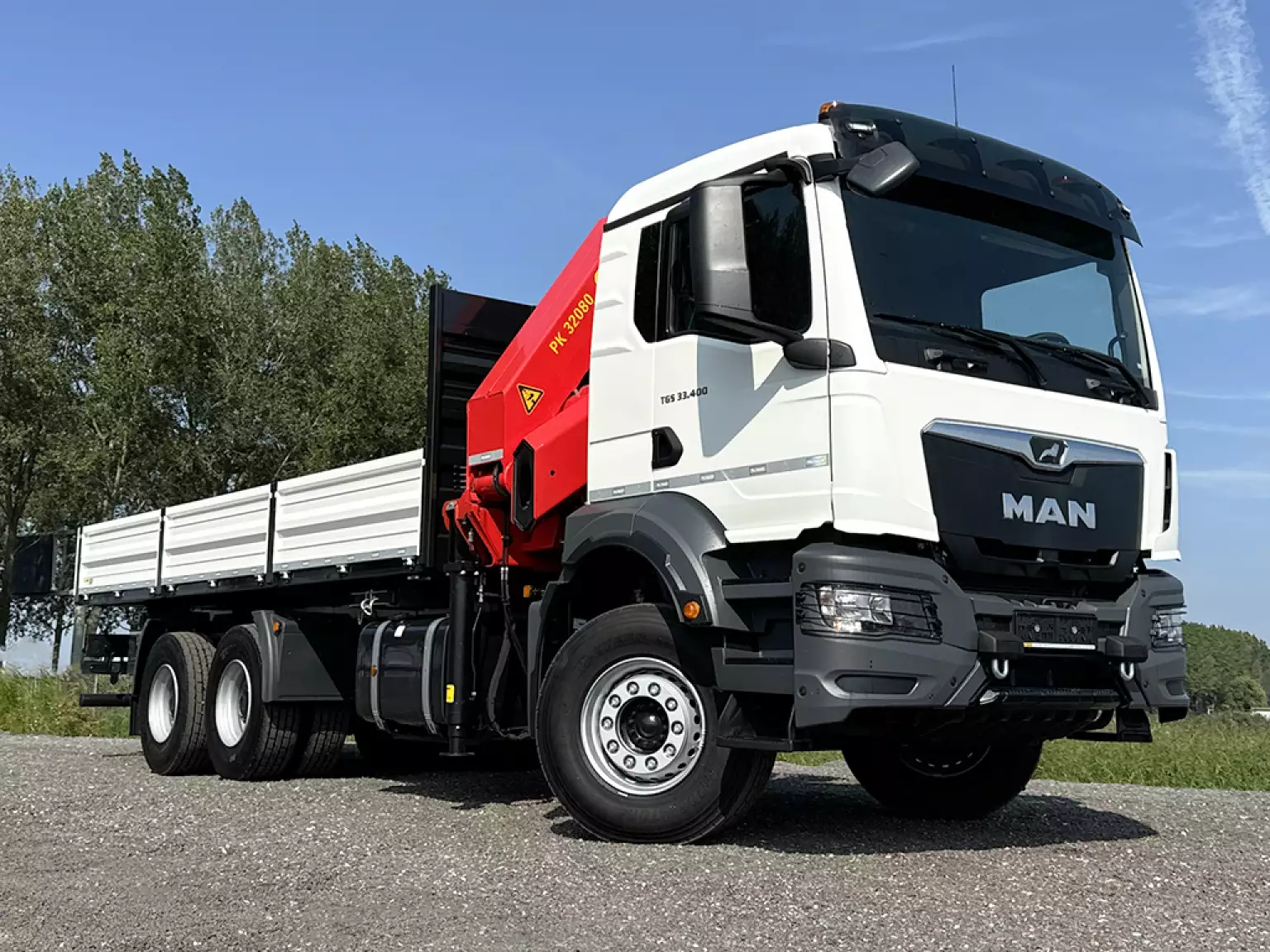

MAN TGS 33.400 BB CH
- New/unused
- Left hand drive
- 6x4
- EURO-2
- Automatic
- Palfinger
Web-ID: VMA5060
- Availability:
- 3
- Condition:
- New/unused
- Axle configuration:
- 6x4
- Engine:
- 400hp/294kW
- Emission:
- EURO-2
- Transmission:
- Automatic
- Price:
- € 215.000
Net unit price, EXW Nieuwerkerk aan den IJssel (NL), without VAT, subject to availability/prior sale.
Vehicle overview
- Category:
- Crane Trucks
- Brand:
- MAN
- Type:
- TGS 33.400 BB CH
- Axle configuration:
- 6x4
- Condition:
- New/unused
Technical Specifications
Stock number
VMA5060
Engine power
400hp/294kW
Emission
EURO-2
Fuel
Diesel
Engine type
D2066LF06
Cylinder capacity
10.518 cc
Cylinders
6
Transmission
Automatic
PTO
NH/4C
Gearbox
TipMatic 12.28OD
Suspension
Spring

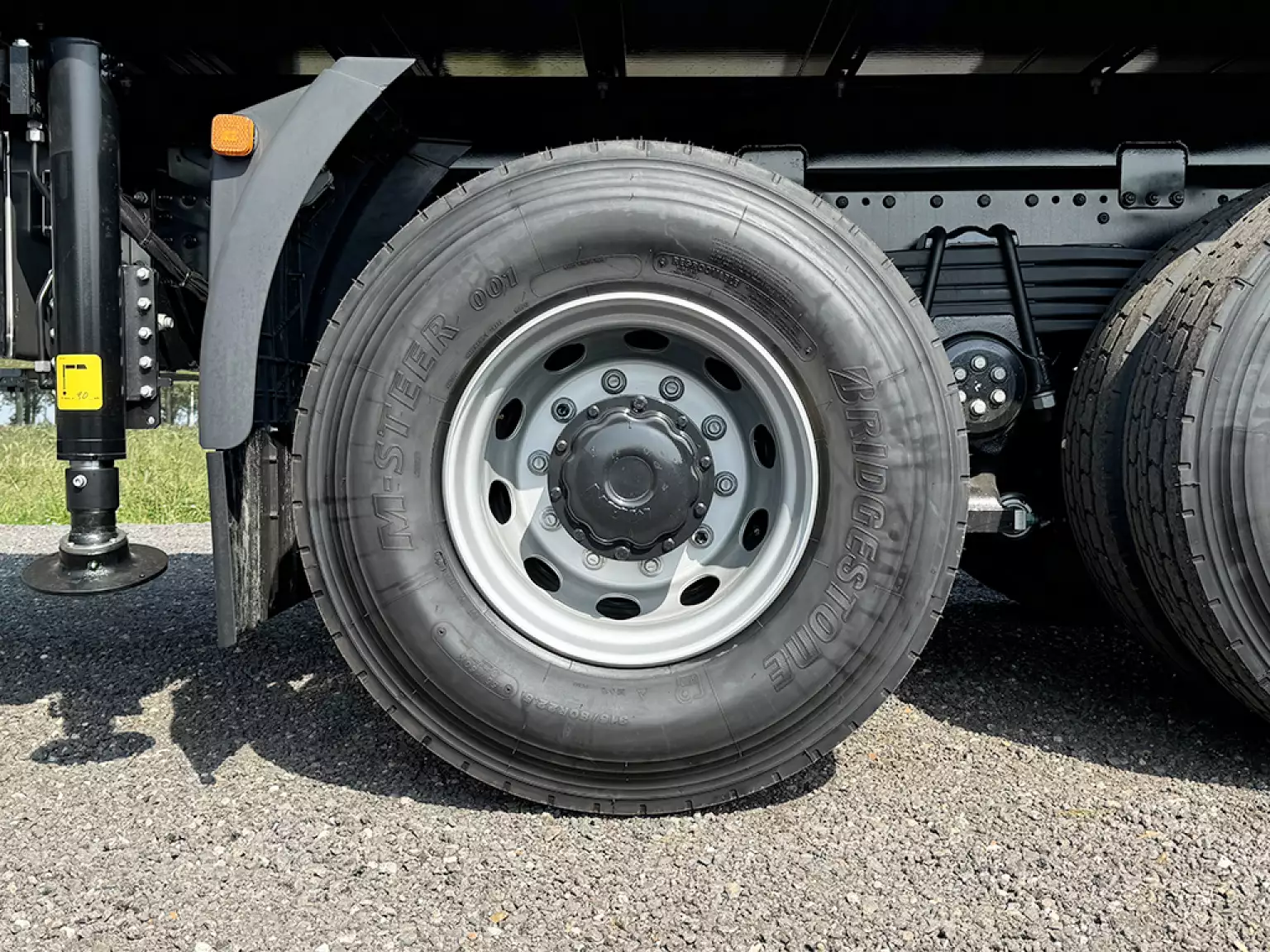

Tyres
F385/65R22.5 R315/80R22.5
Wheelbase
4.500 mm

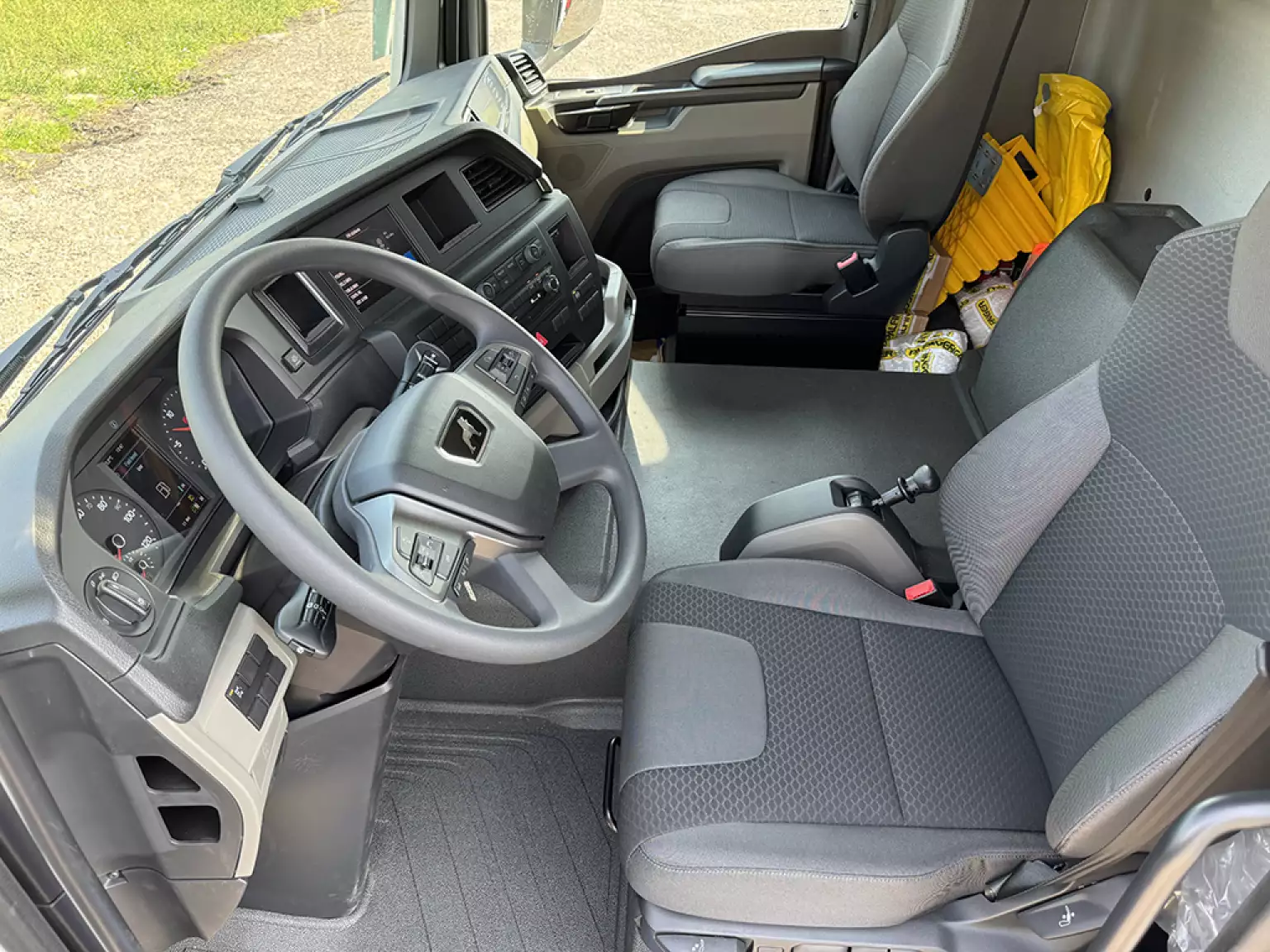

Cabin
Day
Total weight GVW
33.000 kg
Model year
2024
Superstructure
Crane Truck
Remarks

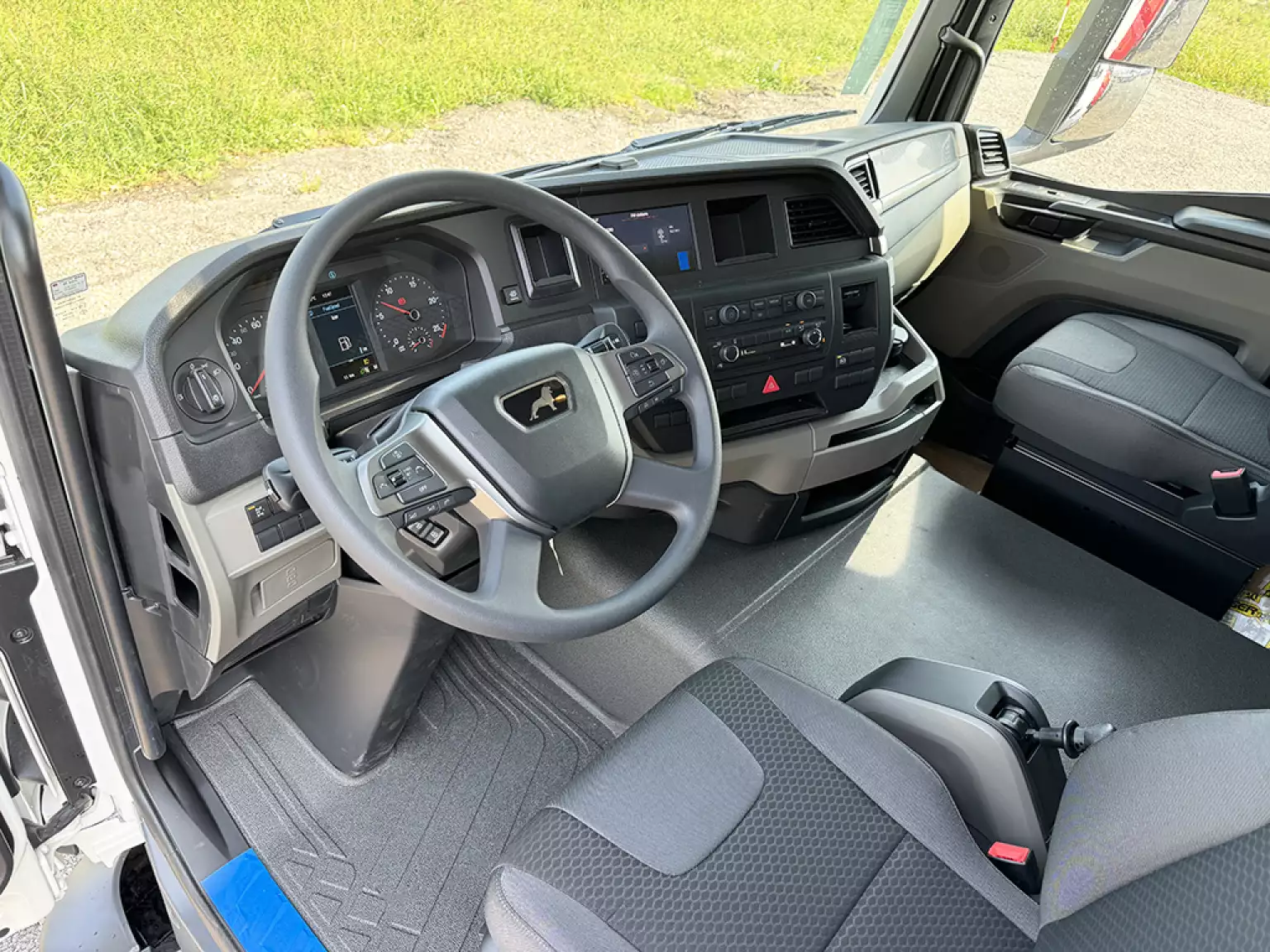

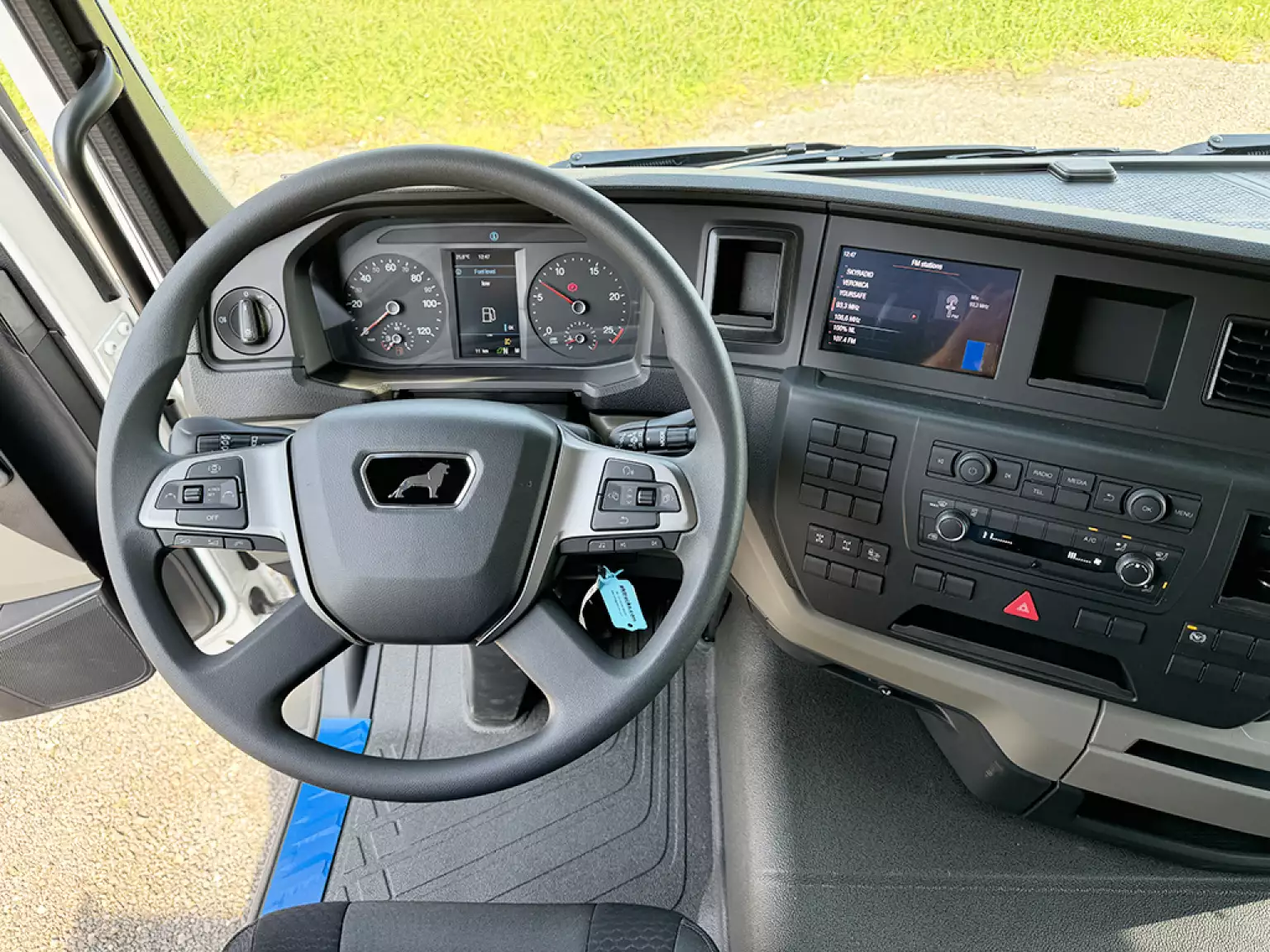

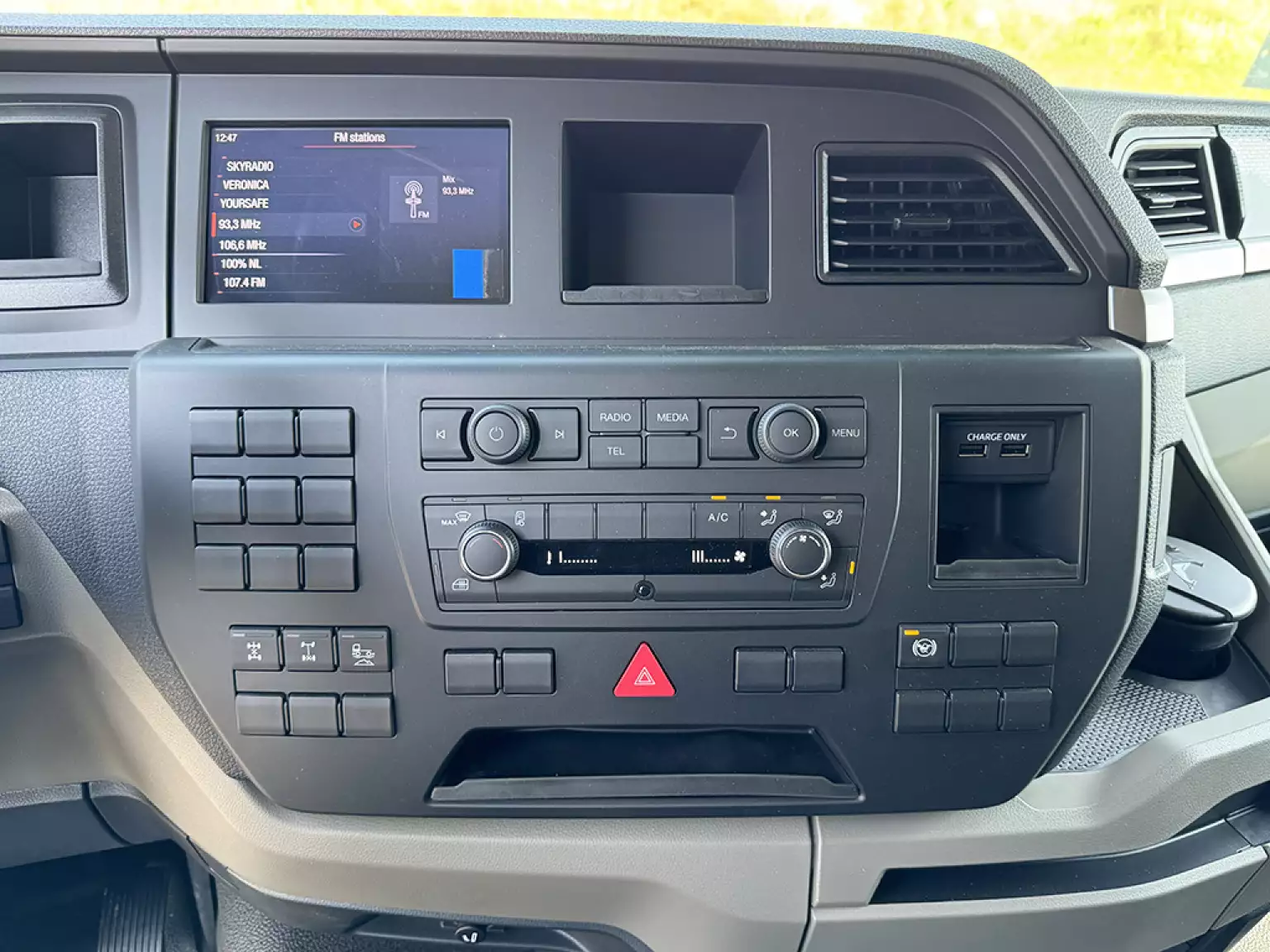

Air conditioning

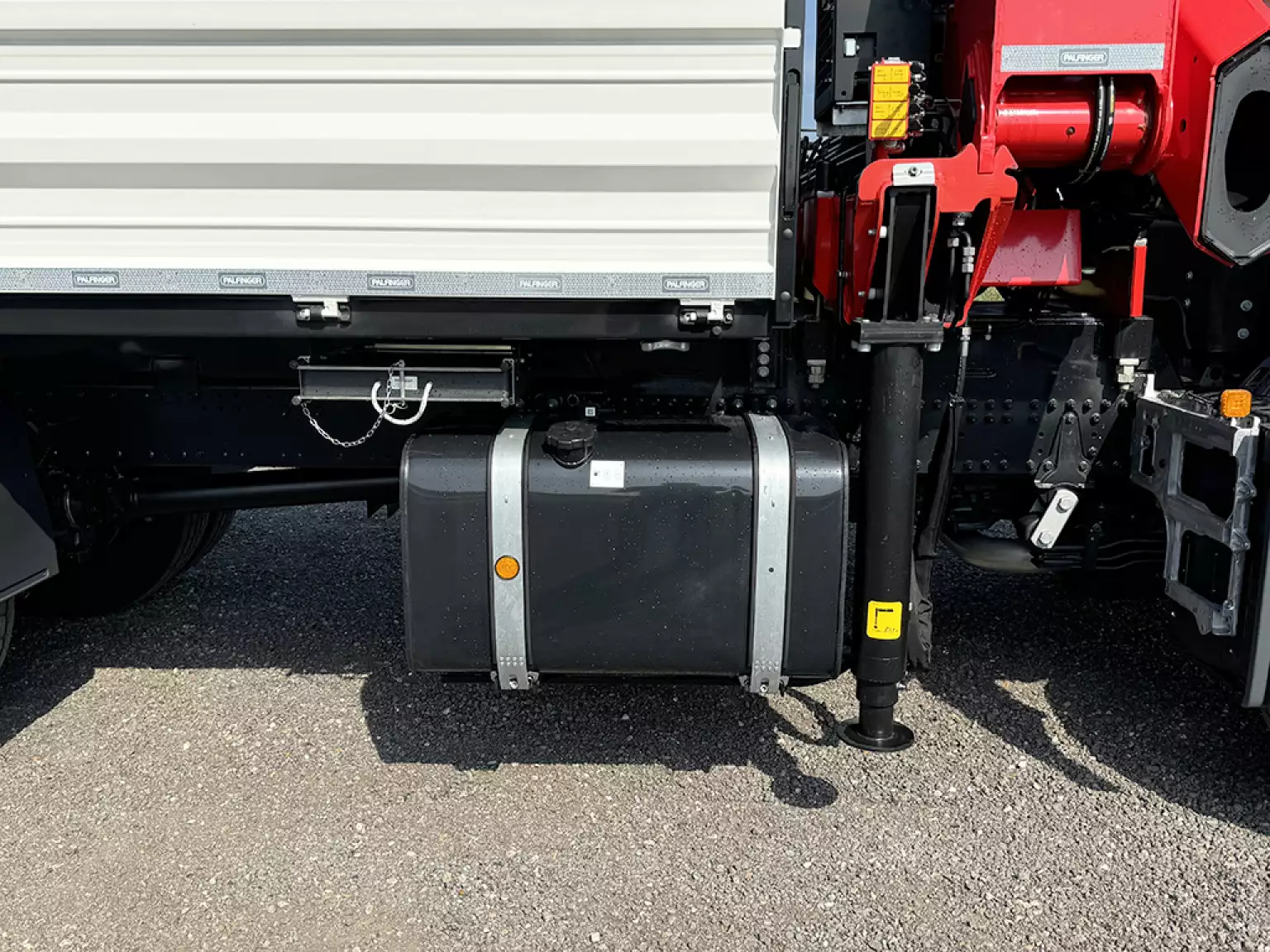

Fuel tank: 400 ltr.

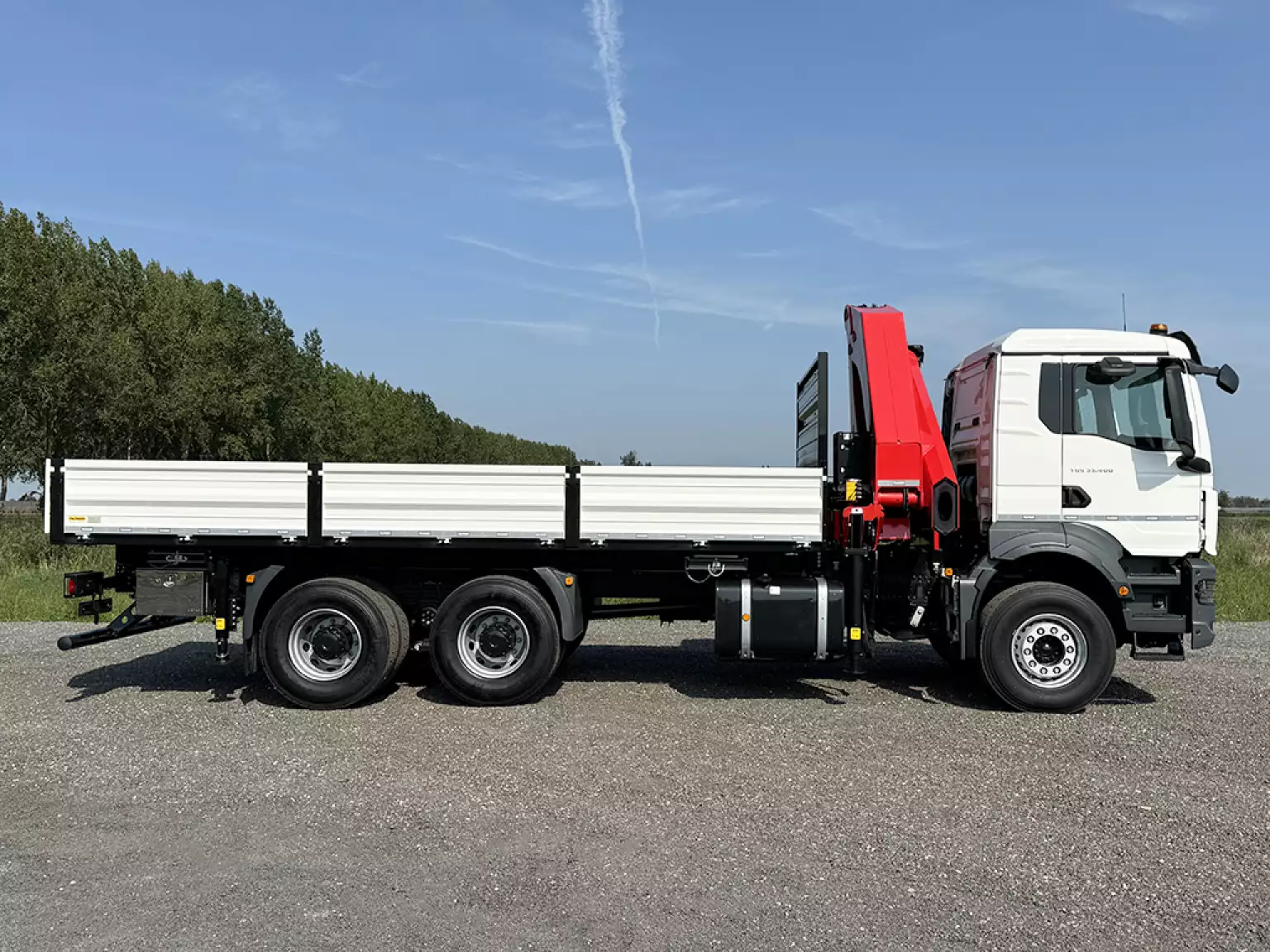

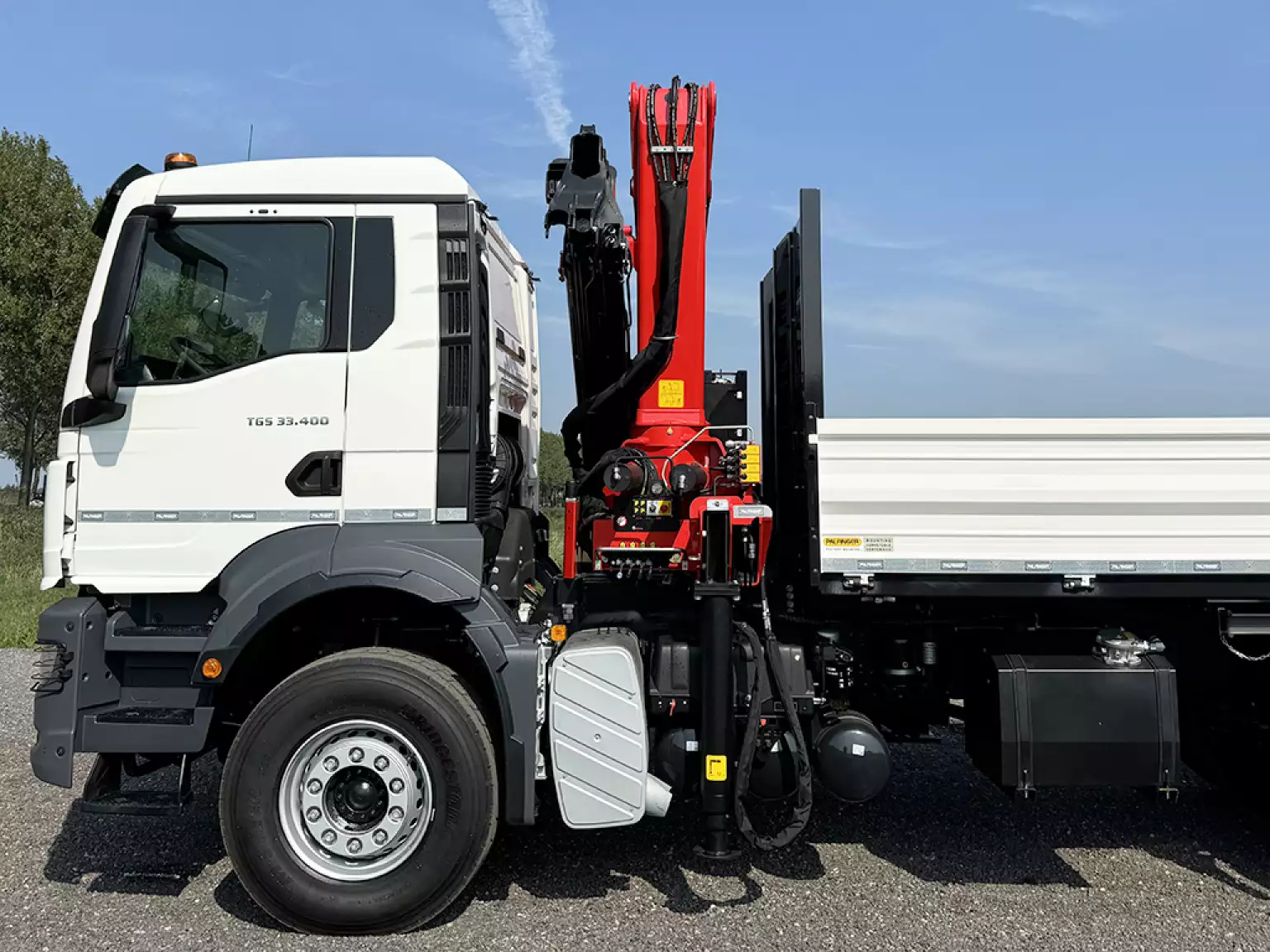

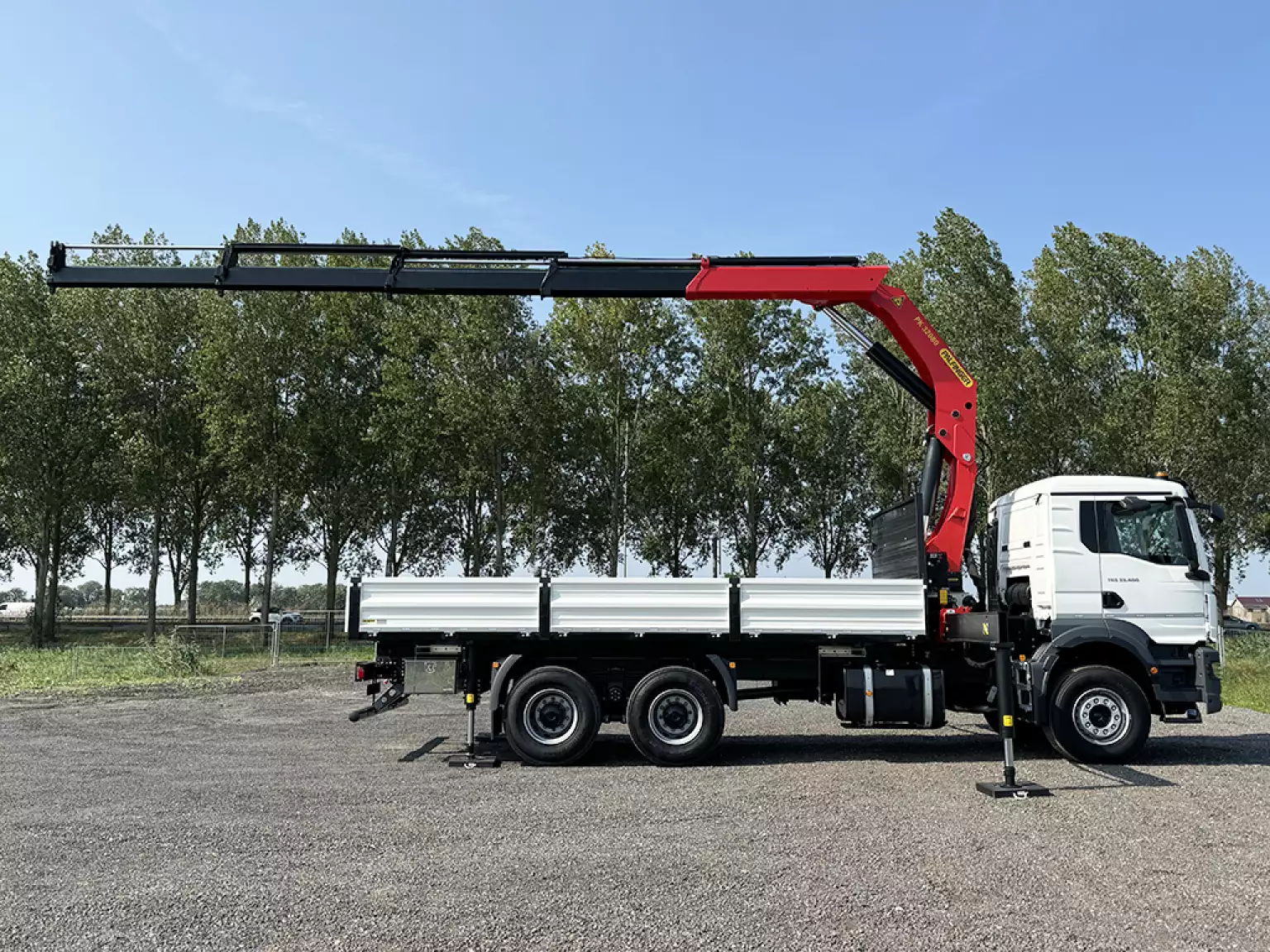

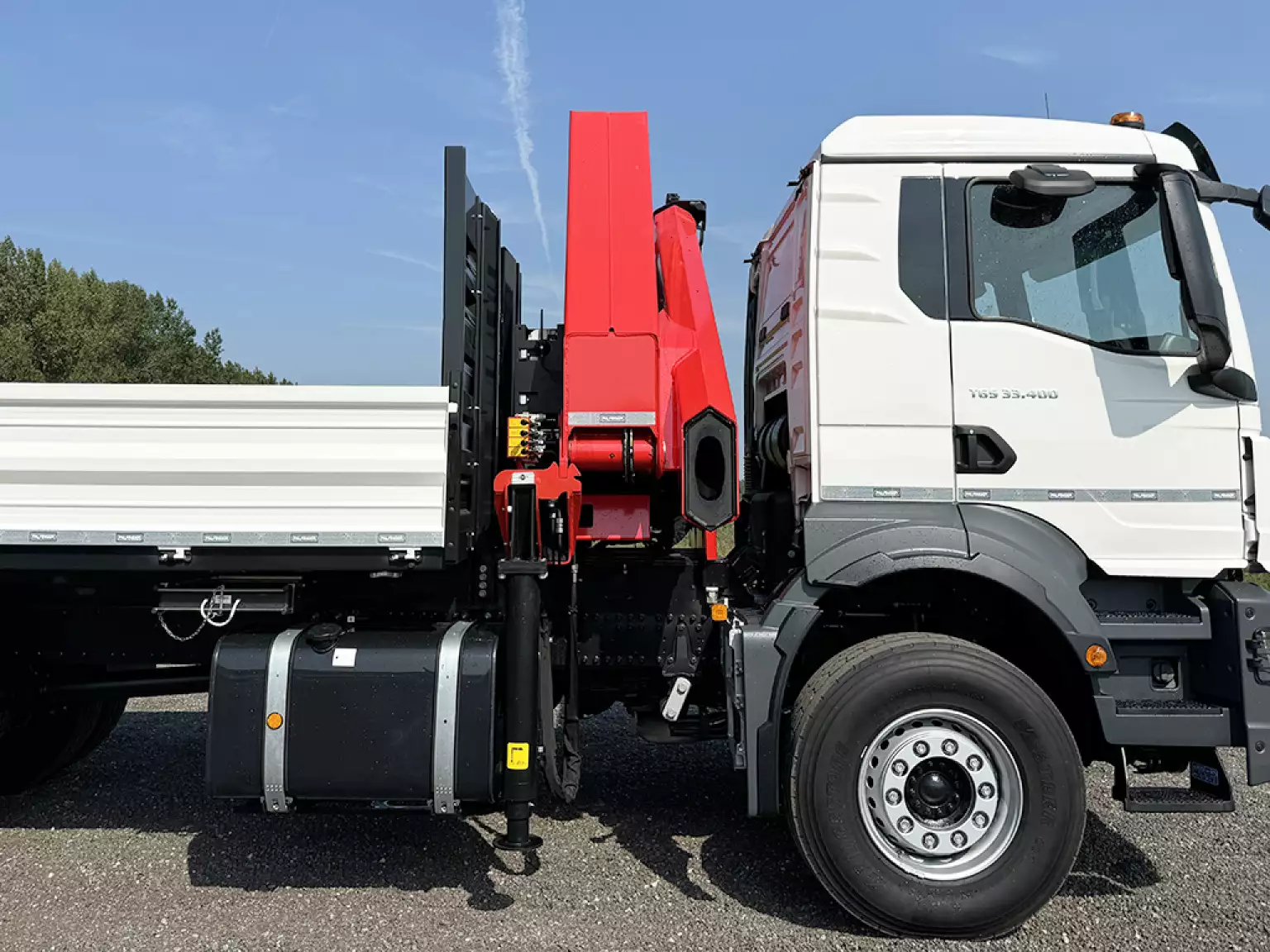

Equipped with crane and flatbed:

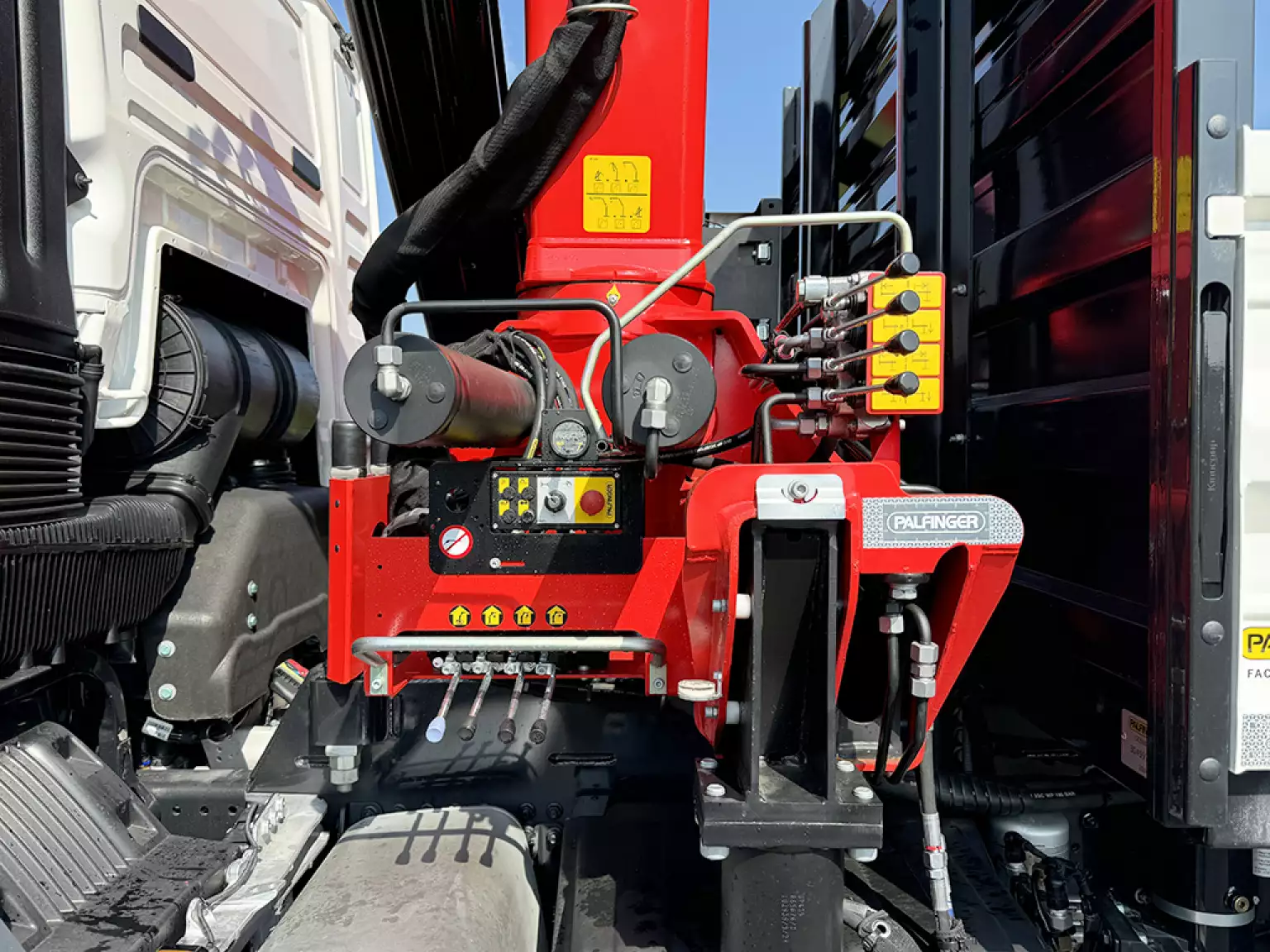

Type: Palfinger PK32080C
Lifting moment 298.2 kNm / 30.4 mt
Emergency cut off
Digital hour counter
Oil cooler 10,5kW
Hydraulic overload protection
Outriggers hydraulic long

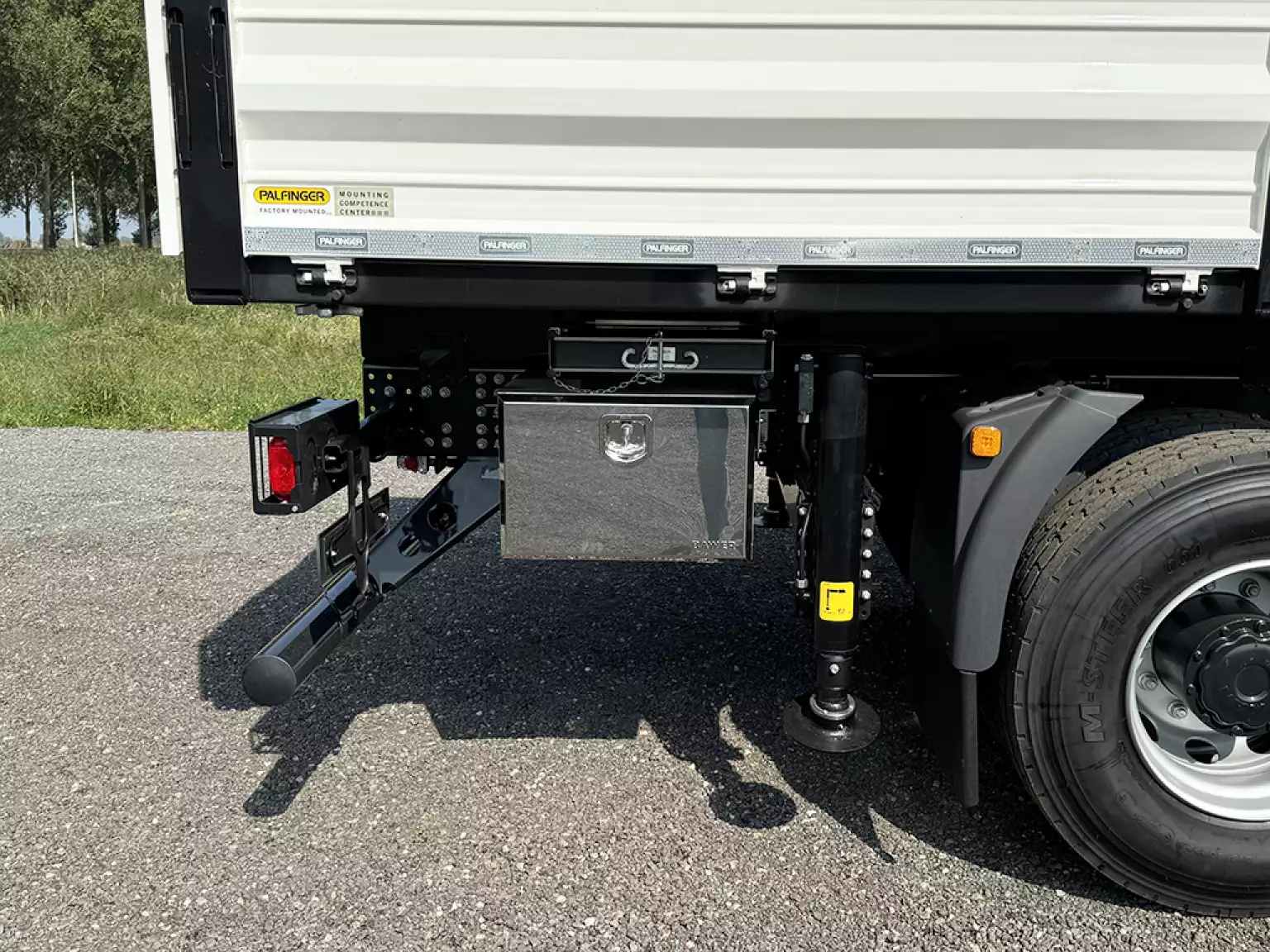

Rear stabilizers

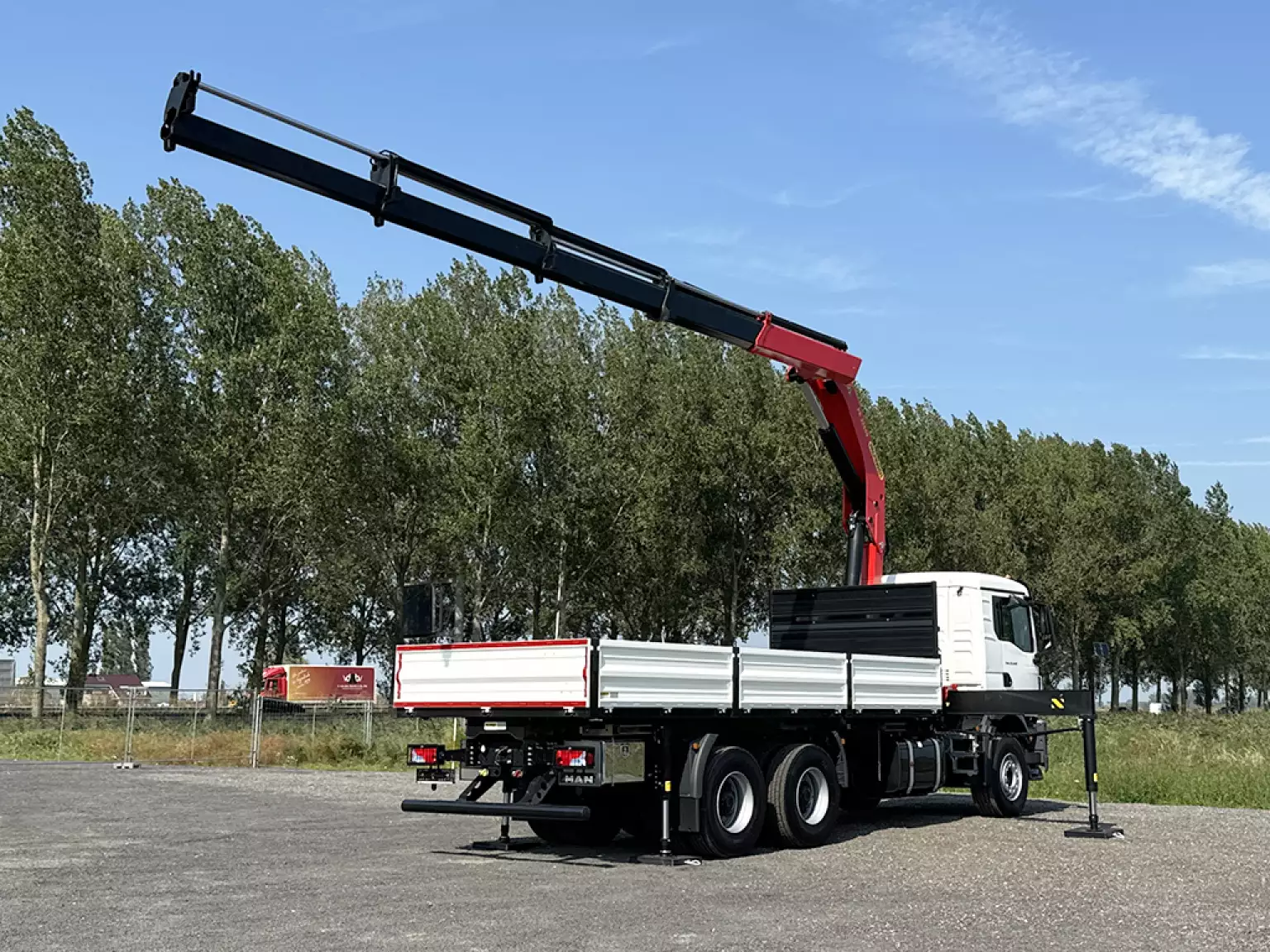

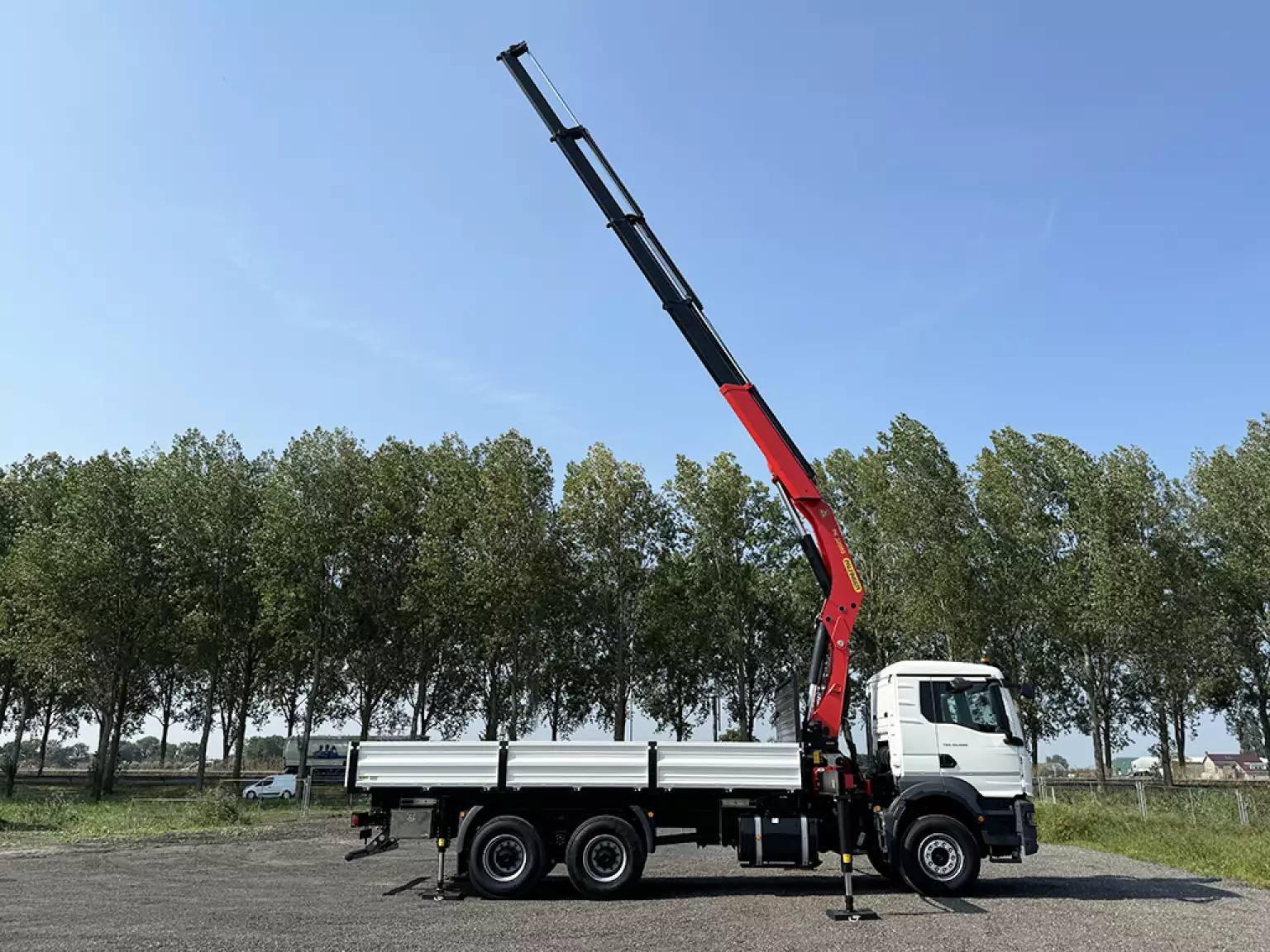

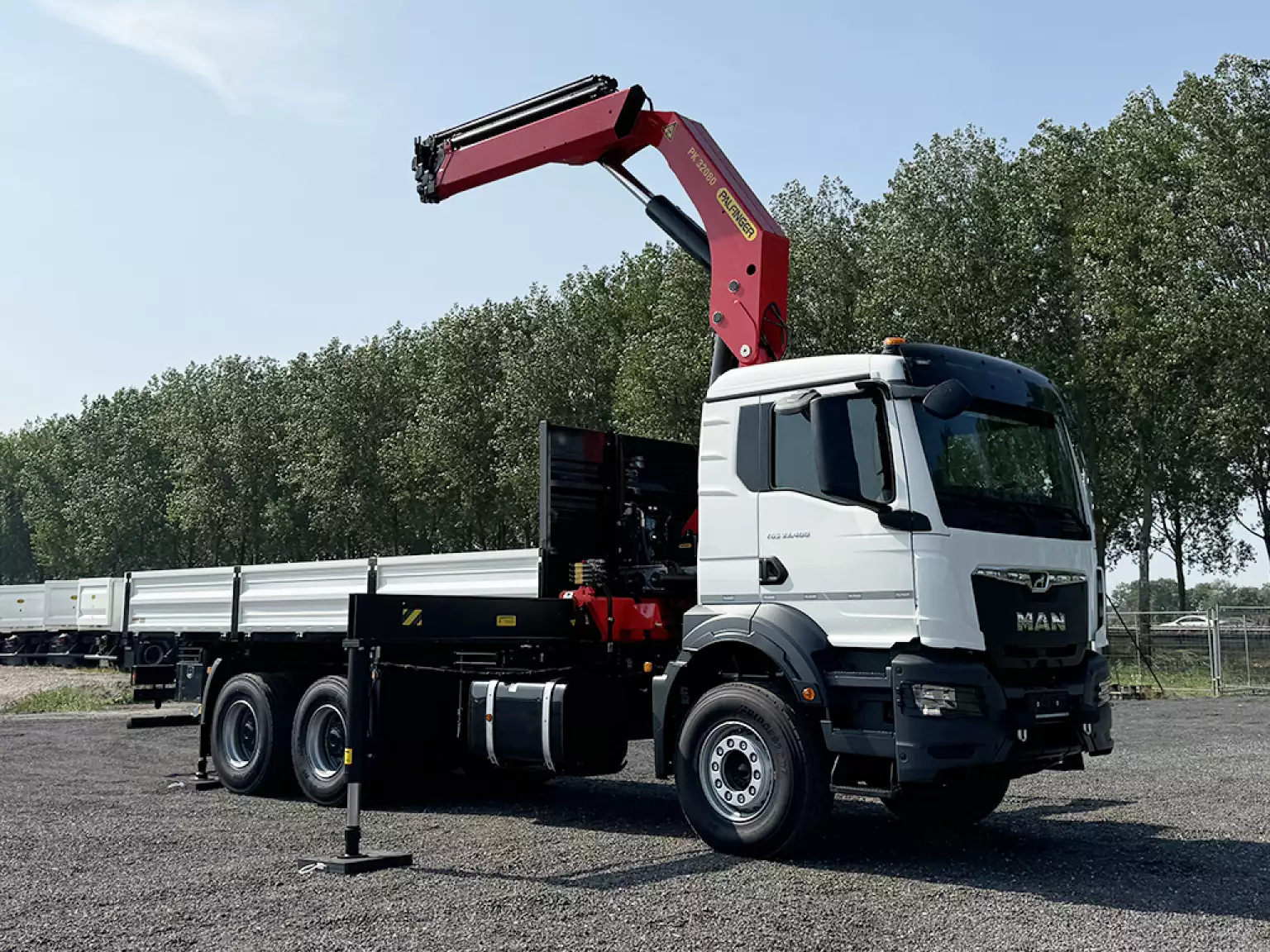

4 section hydraulic extension boom
Stabilizer pads 400x400x50mm
2 tool boxes
Lifting capacity:
8.100 kg / 3.60 m
6.600 kg / 4.40 m
4.570 kg / 6.20 m
3.430 kg / 8.00 m
2.710 kg / 10.00 m
2.260 kg / 11.90 m

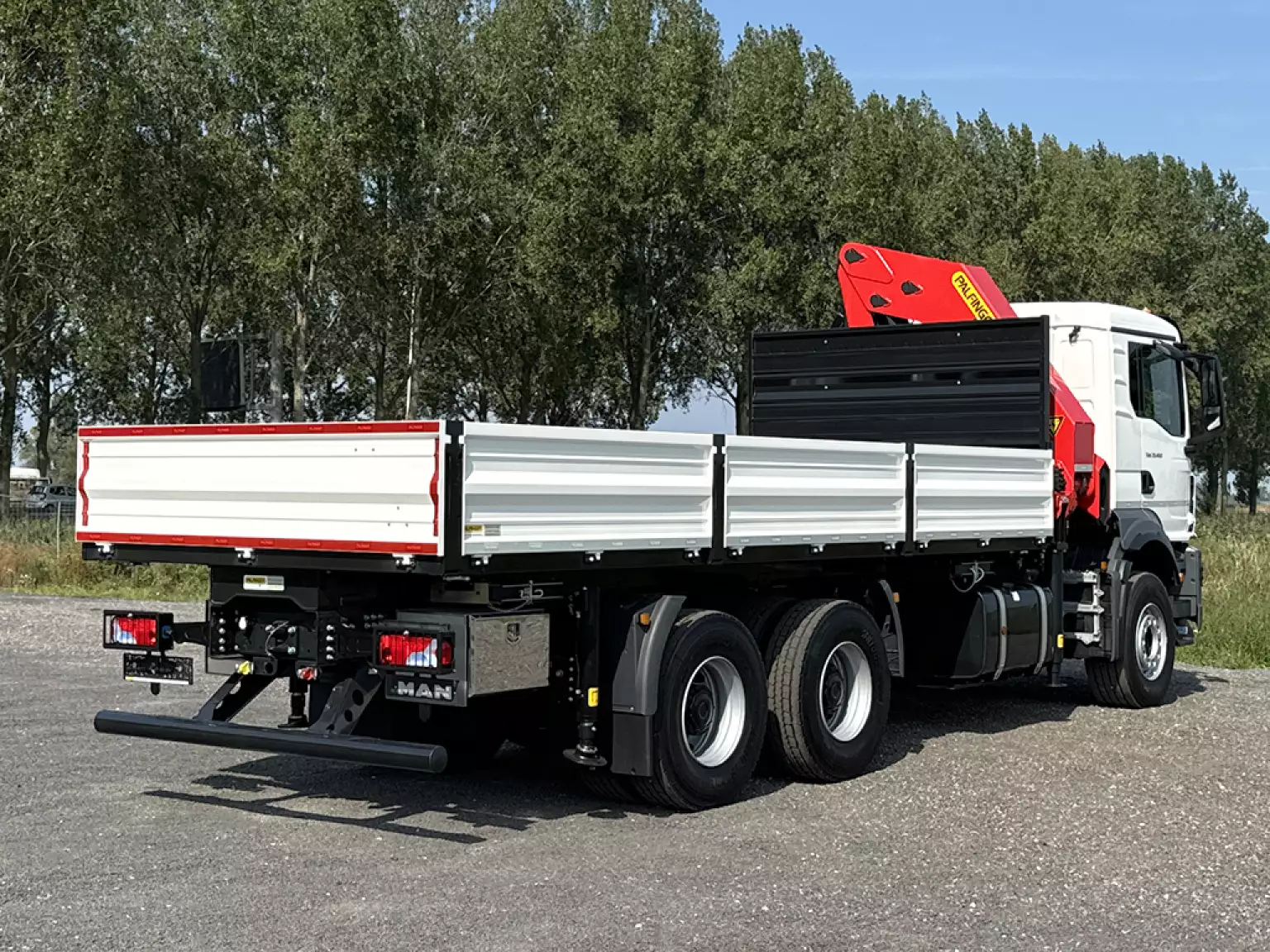

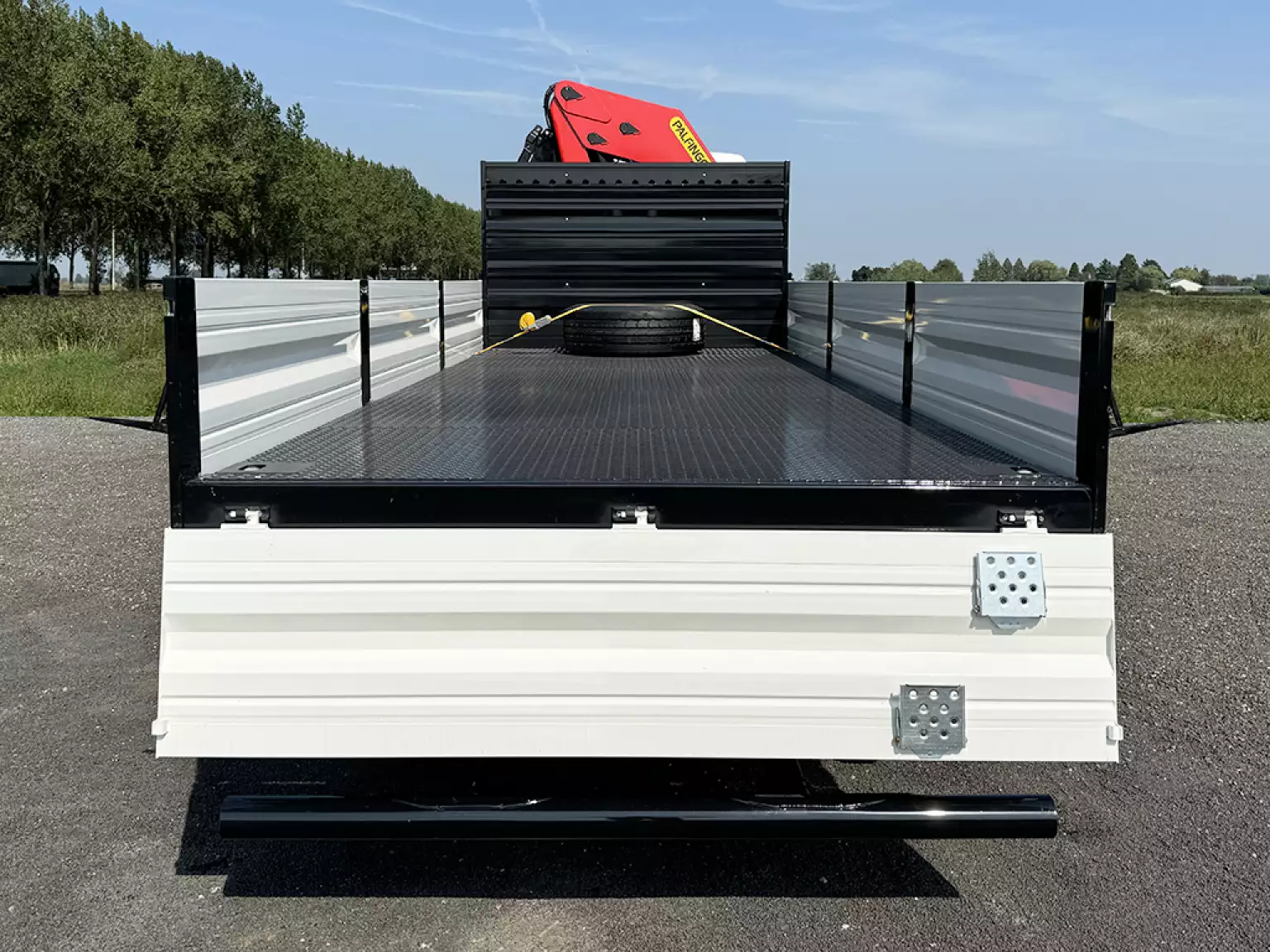

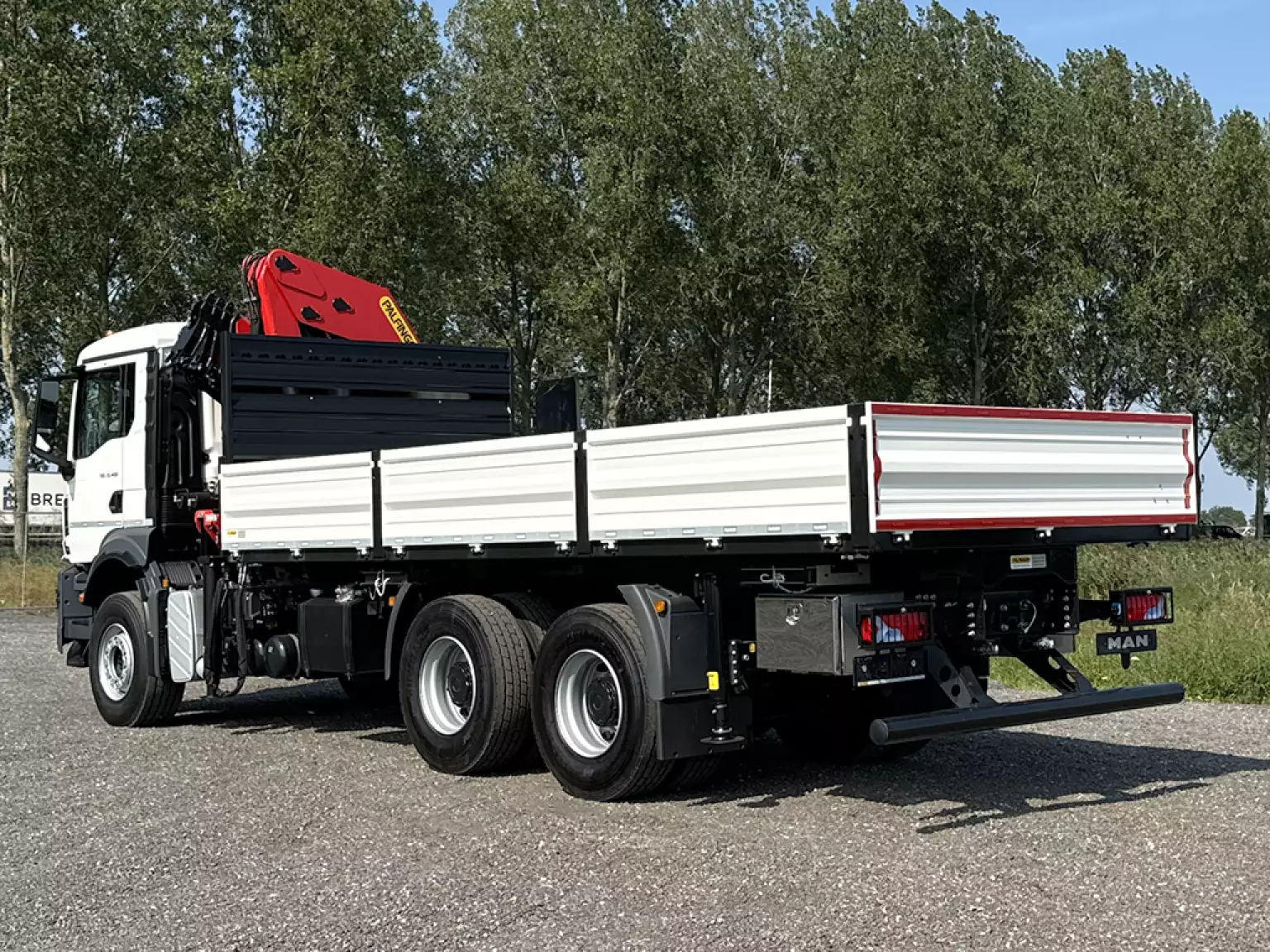

Open flatbed body with foldable sideboards:
Twistlocks for 20 ft container
Dimensions: 630 x 248 x 60 cm
Pre-Order Status:
Trucks are not yet in stock, they are in production and delivery to us will take place from 07/2024 - 08/2024. Please contact us for further information. Pictures do not represent the exact final product and will be updated when the trucks arrive.
Complete specification in PDF.
Fuel tank: 400 ltr.
Equipped with crane and flatbed:
Type: Palfinger PK32080C
Lifting moment 298.2 kNm / 30.4 mt
Emergency cut off
Digital hour counter
Oil cooler 10,5kW
Hydraulic overload protection
Outriggers hydraulic long
Rear stabilizers
4 section hydraulic extension boom
Stabilizer pads 400x400x50mm
2 tool boxes
Lifting capacity:
8.100 kg / 3.60 m
6.600 kg / 4.40 m
4.570 kg / 6.20 m
3.430 kg / 8.00 m
2.710 kg / 10.00 m
2.260 kg / 11.90 m
Open flatbed body with foldable sideboards:
Twistlocks for 20 ft container
Dimensions: 630 x 248 x 60 cm
Pre-Order Status:
Trucks are not yet in stock, they are in production and delivery to us will take place from 07/2024 - 08/2024. Please contact us for further information. Pictures do not represent the exact final product and will be updated when the trucks arrive.
Complete specification in PDF.
