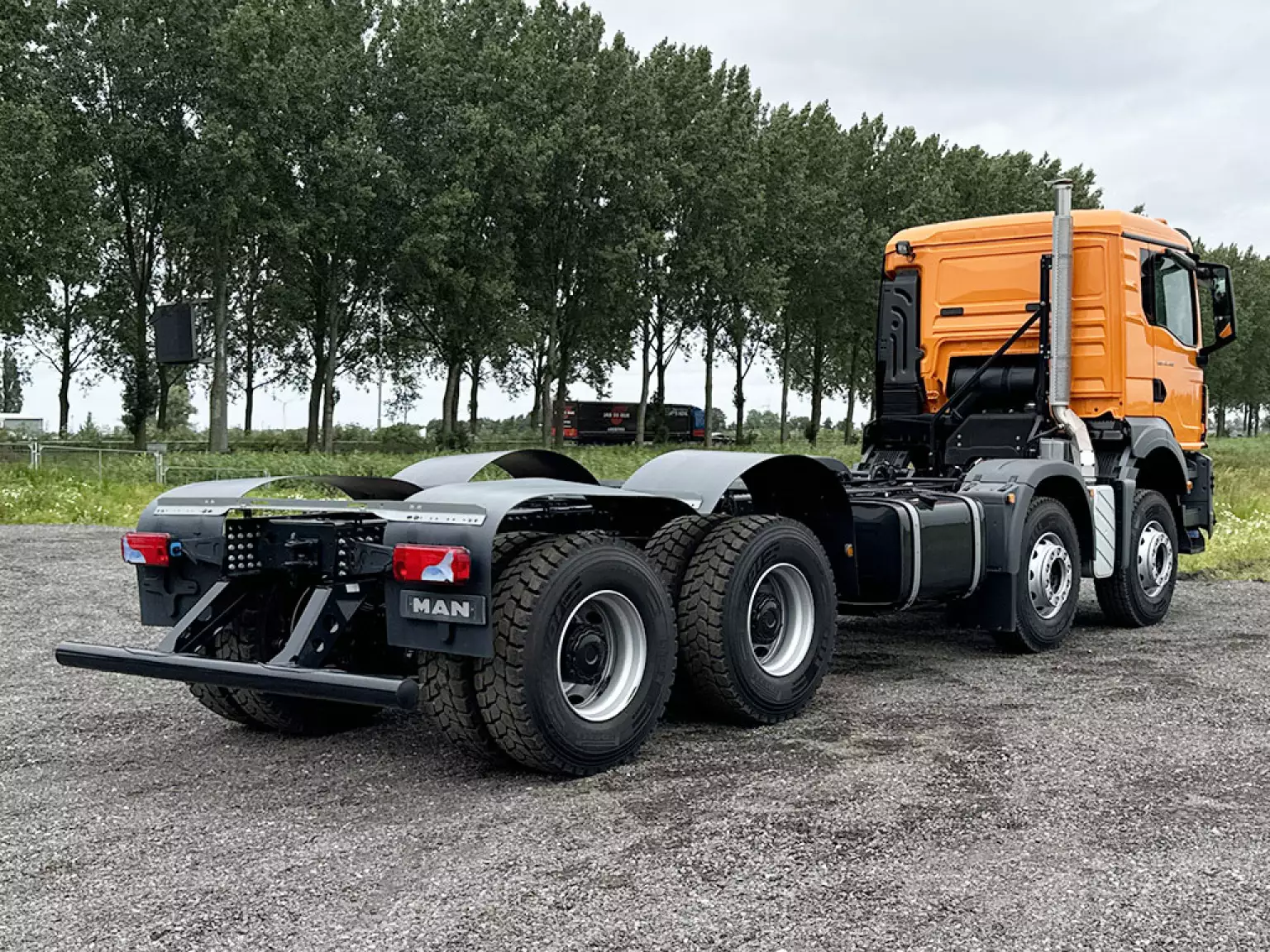

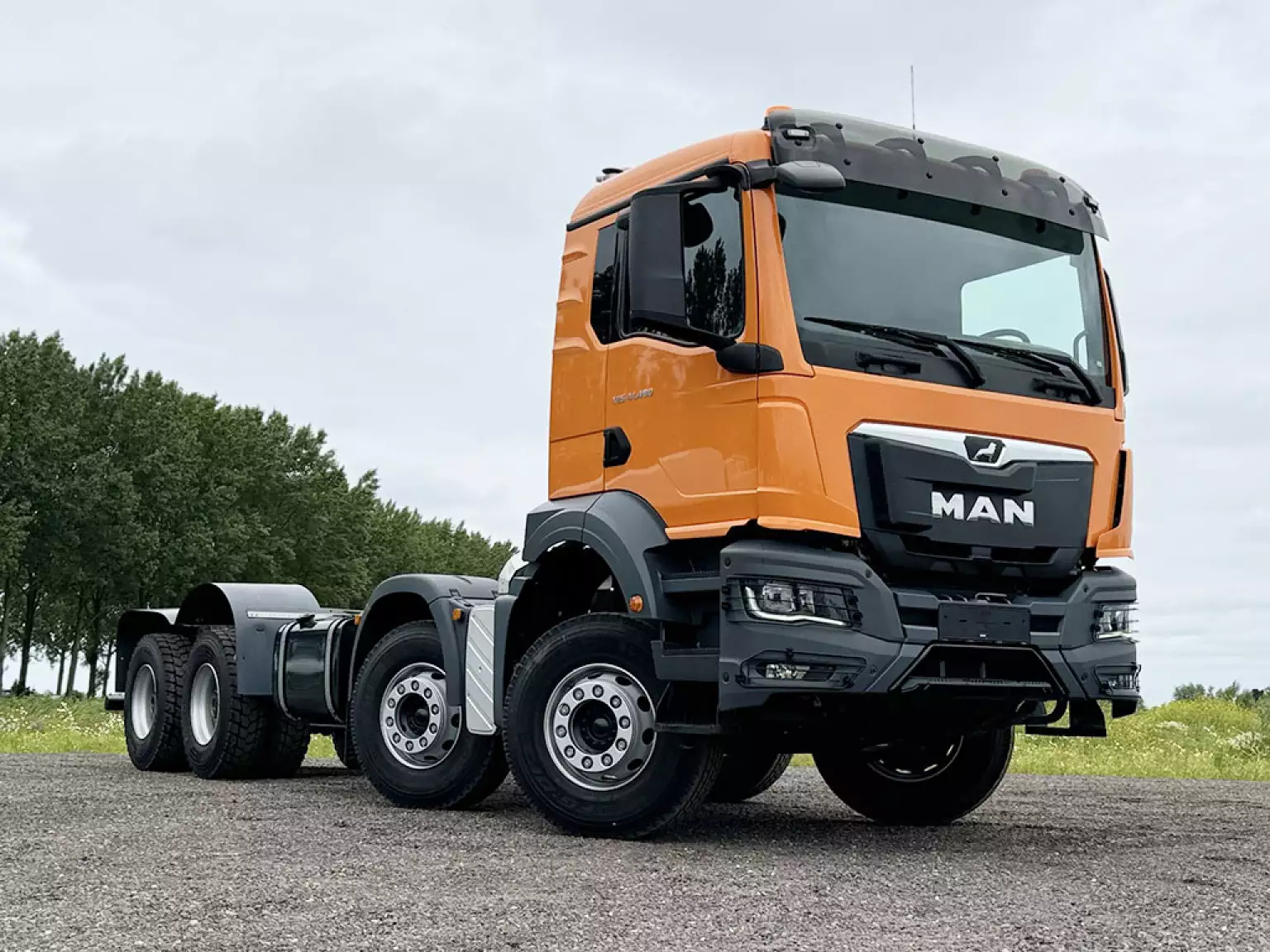

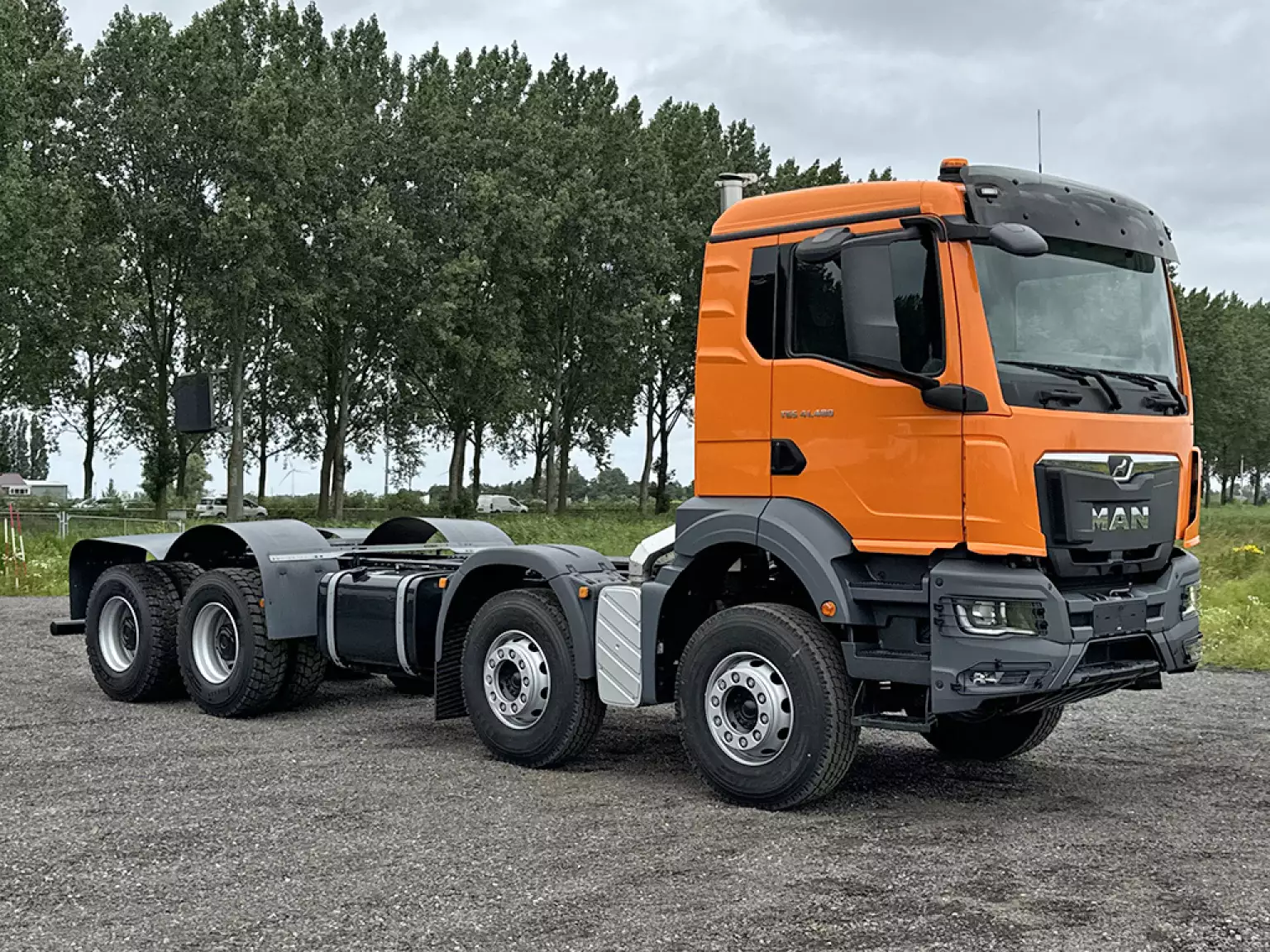

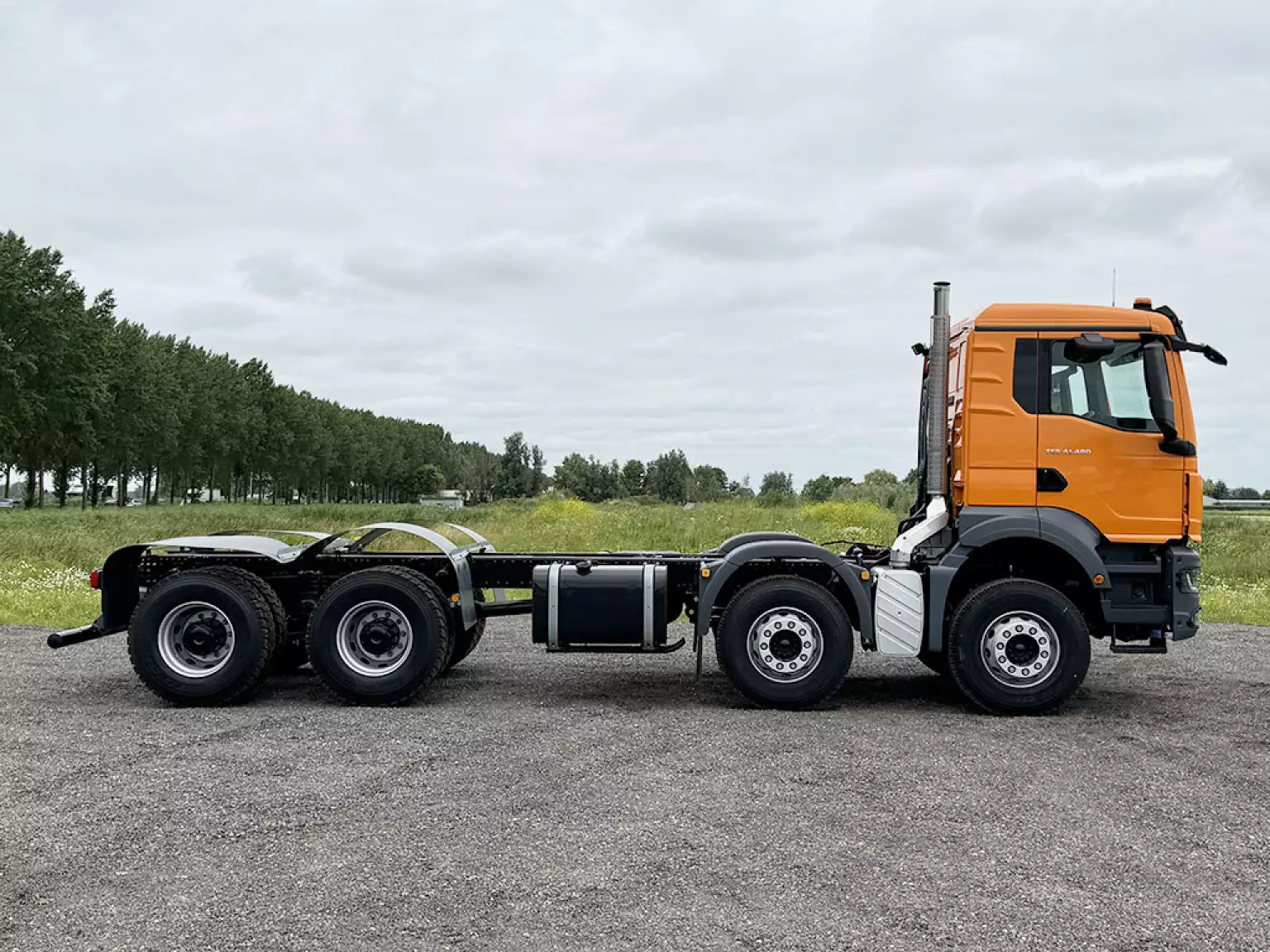

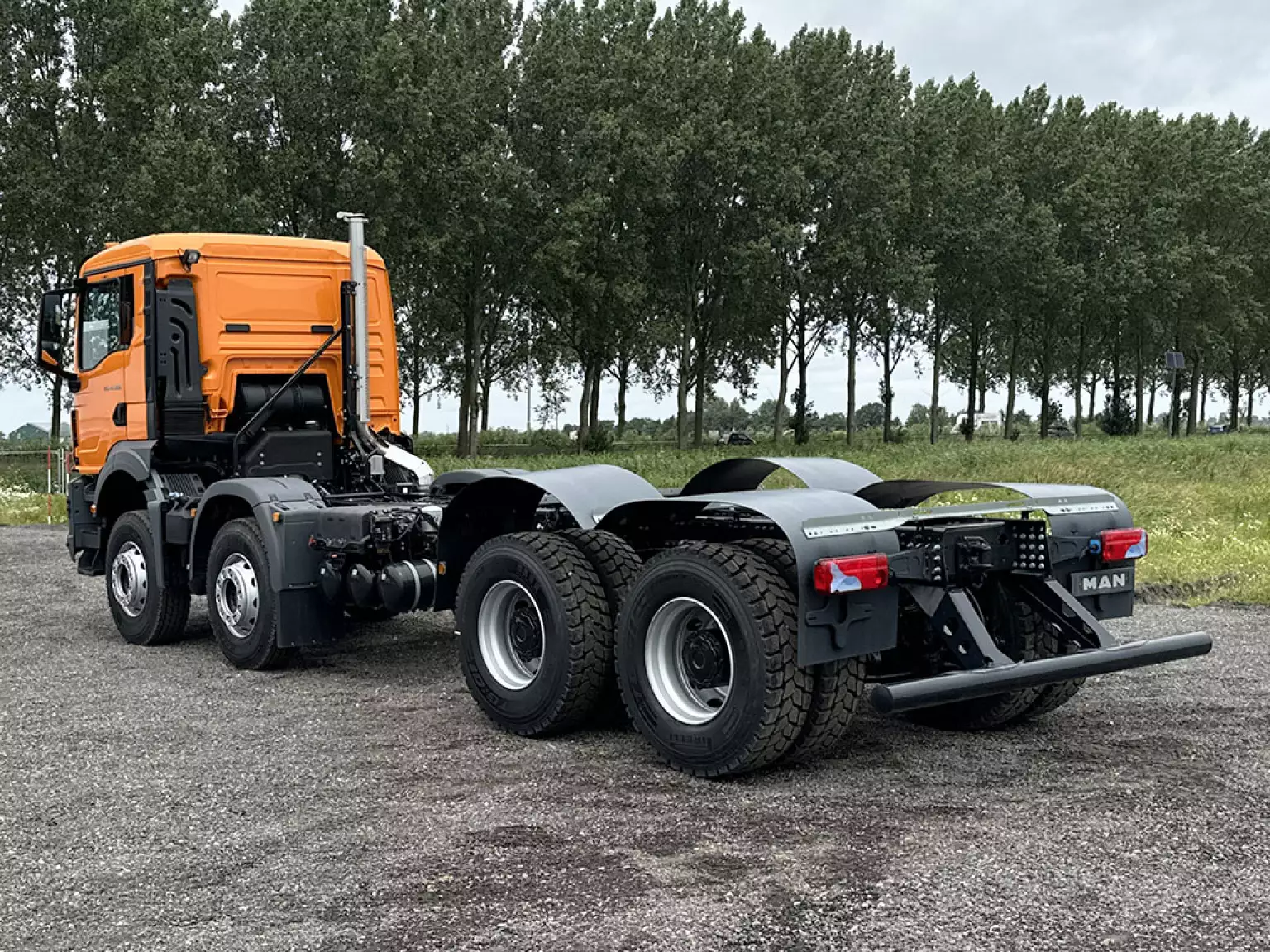

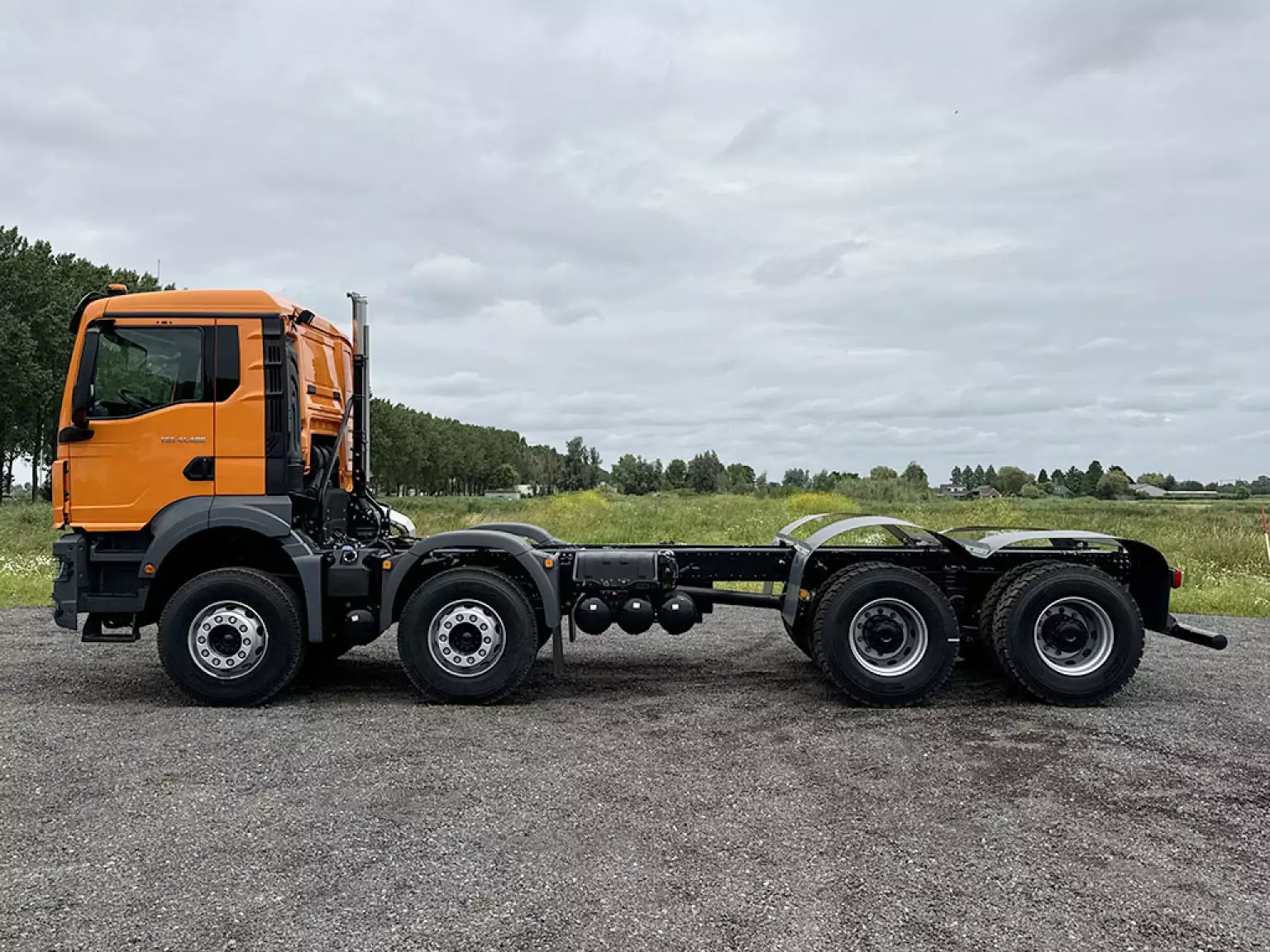

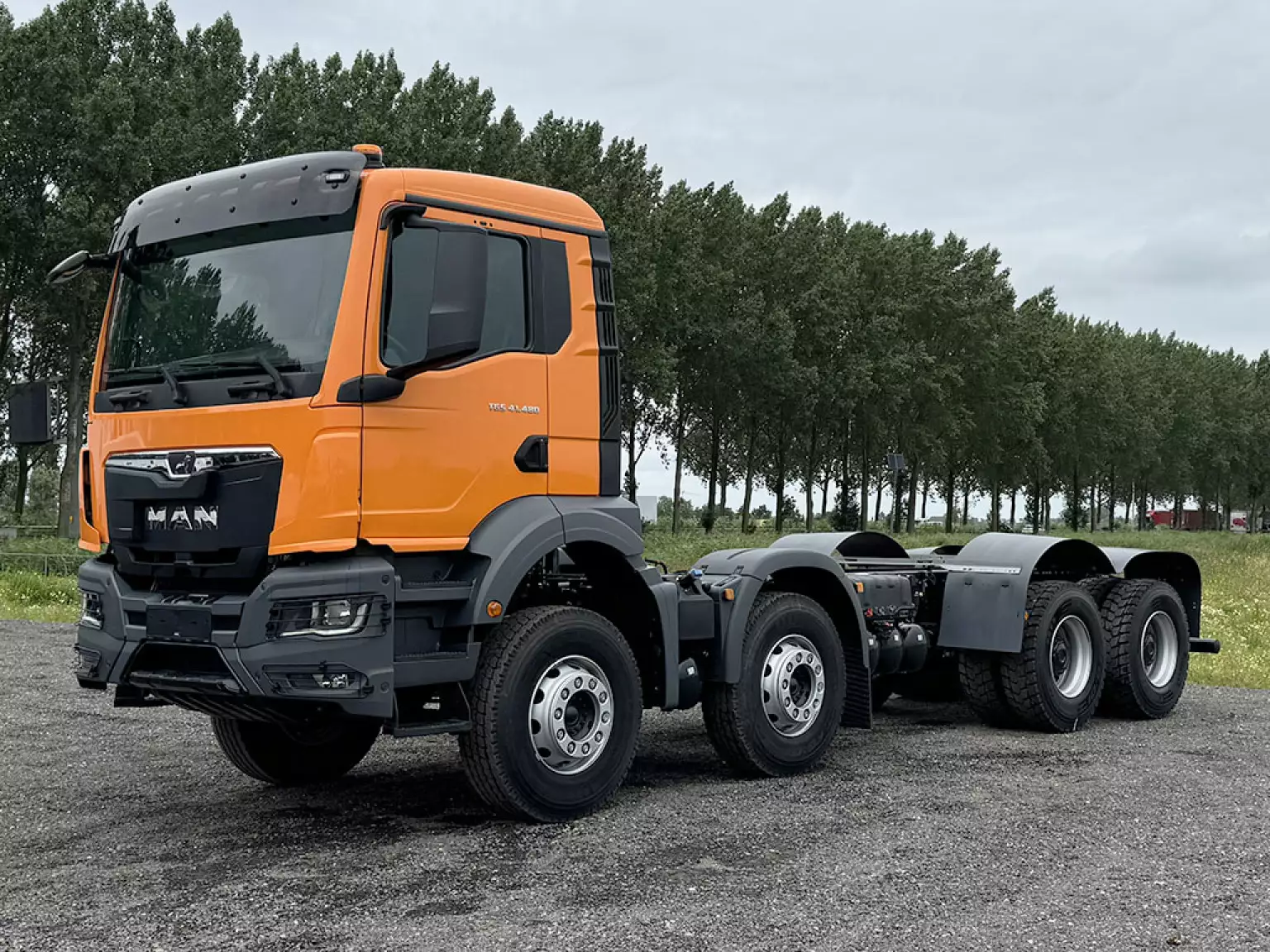

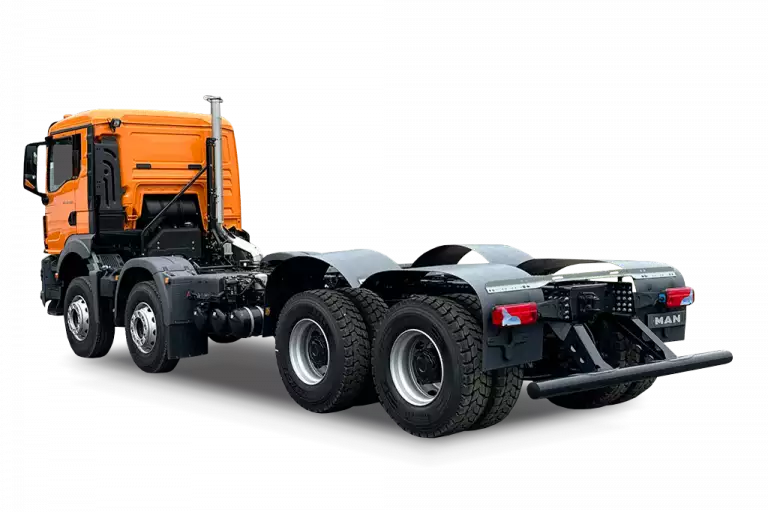

MAN TGS 41.480 BB CH

New/unused
Left hand drive
8x4
EURO-5
Automatic

Web-ID: VMA1515

Availability:: 4
Condition:: New/unused
Axle configuration:: 8x4
Engine:: 480hp/353kW
Emission:: EURO-5
Transmission:: Automatic
Price:: € 105.000

Net unit price, EXW Nieuwerkerk aan den IJssel (NL), without VAT, subject to availability/prior sale.

Quotation request Contact

Vehicle overview

Category:: Chassis Cabins 8x4
Brand:: MAN
Type:: TGS 41.480 BB CH
Axle configuration:: 8x4
Condition:: New/unused

Technical Specifications

Stock number VMA1515

Engine power 480hp/353kW

Emission EURO-5

Fuel Diesel

Engine type D2676LF07

Cylinder capacity 12.419 cc

Cylinders 6

Transmission Automatic

PTO NH/4C

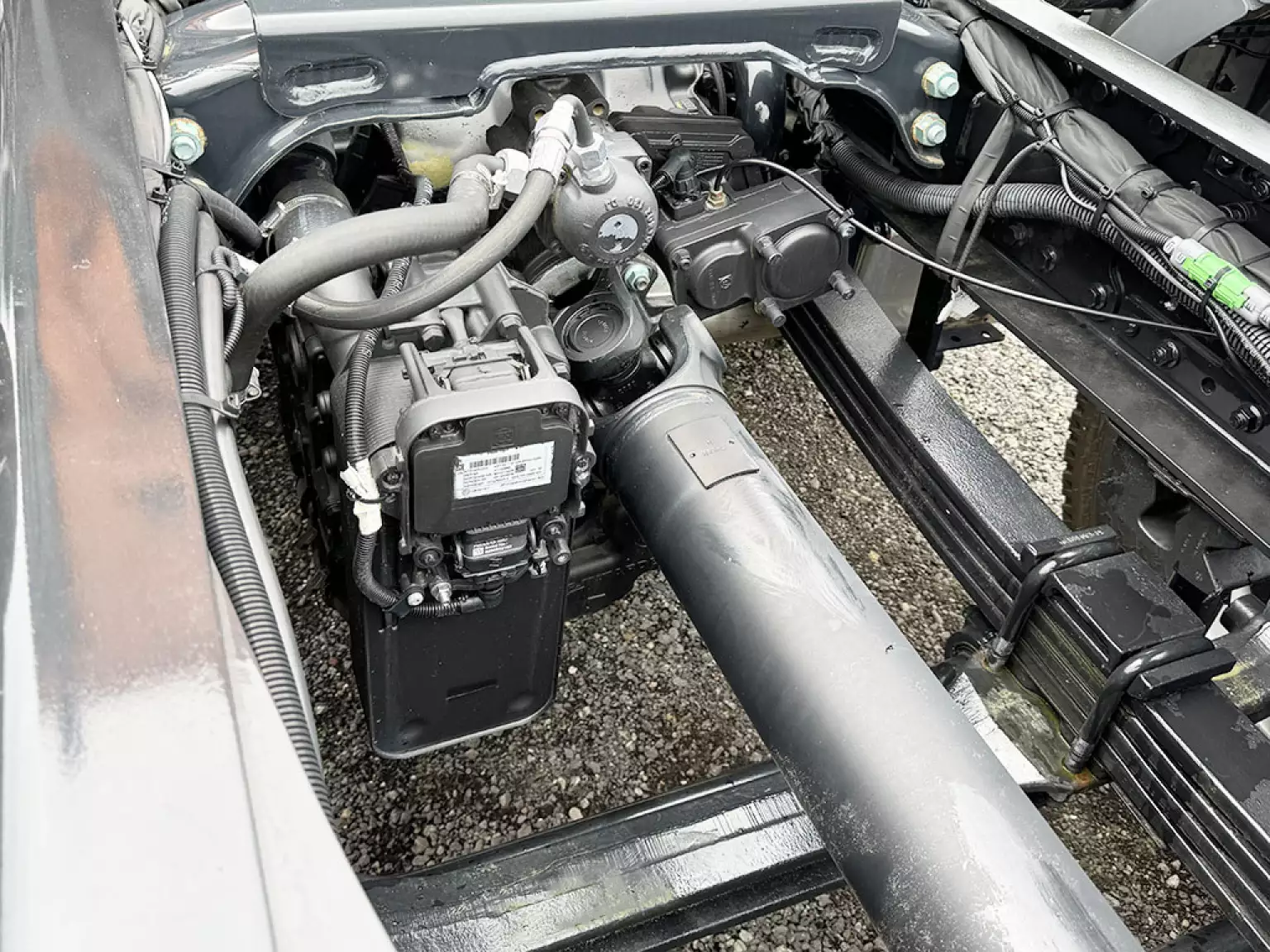

Gearbox TipMatic 12.28OD Retarder 35

Suspension Spring

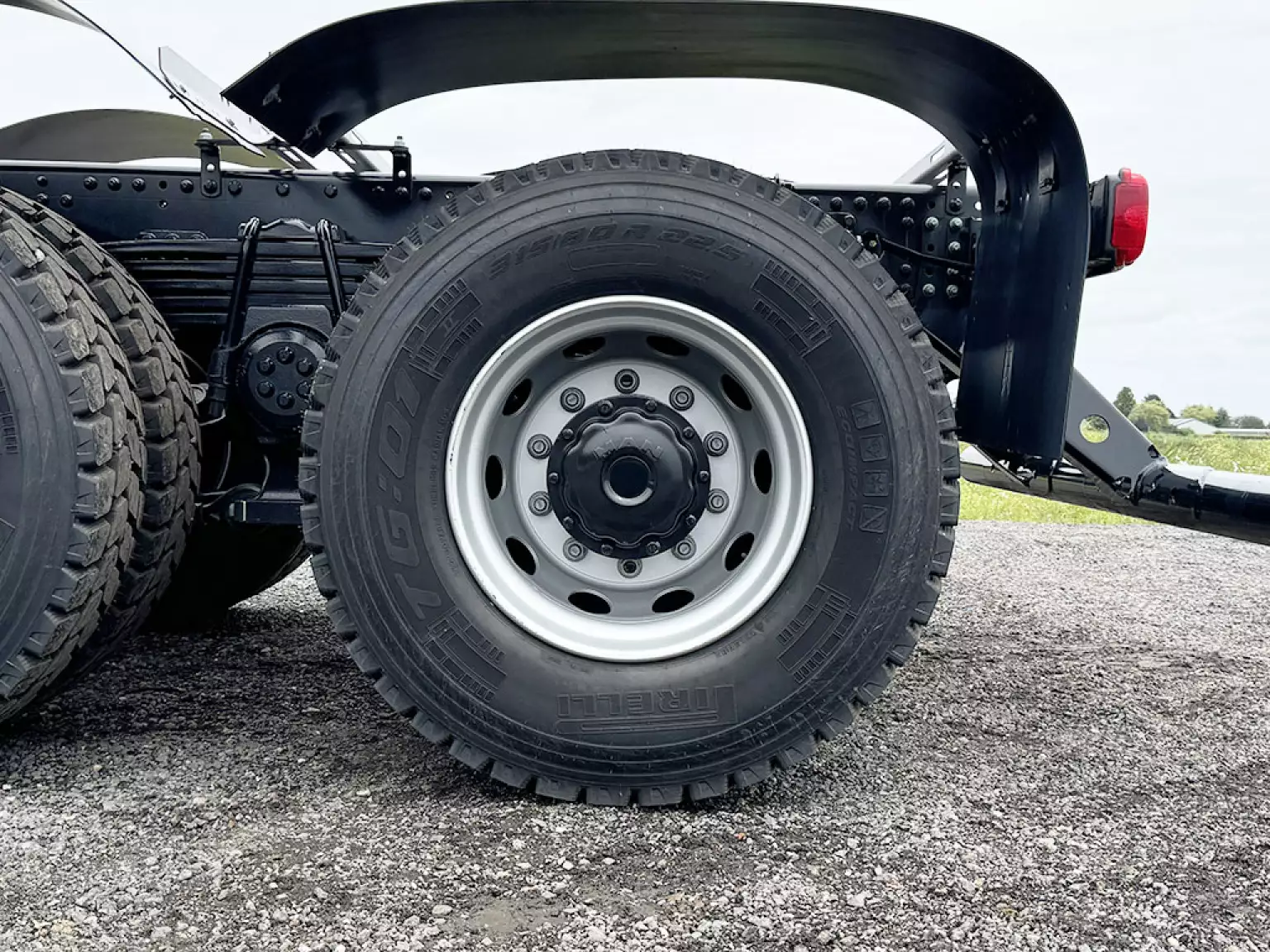

Tyres 315/80R22.5

Wheelbase 3.205 mm

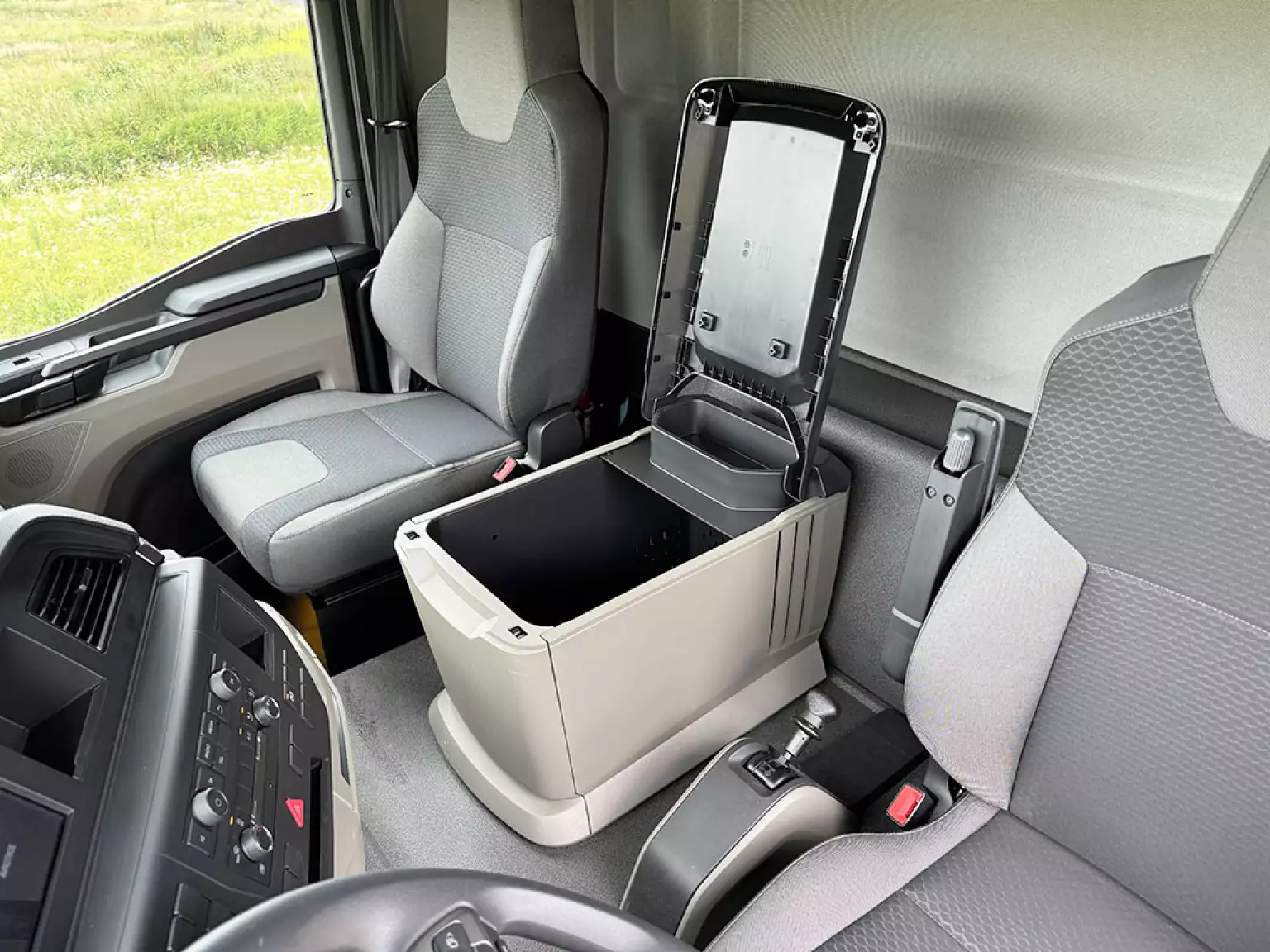

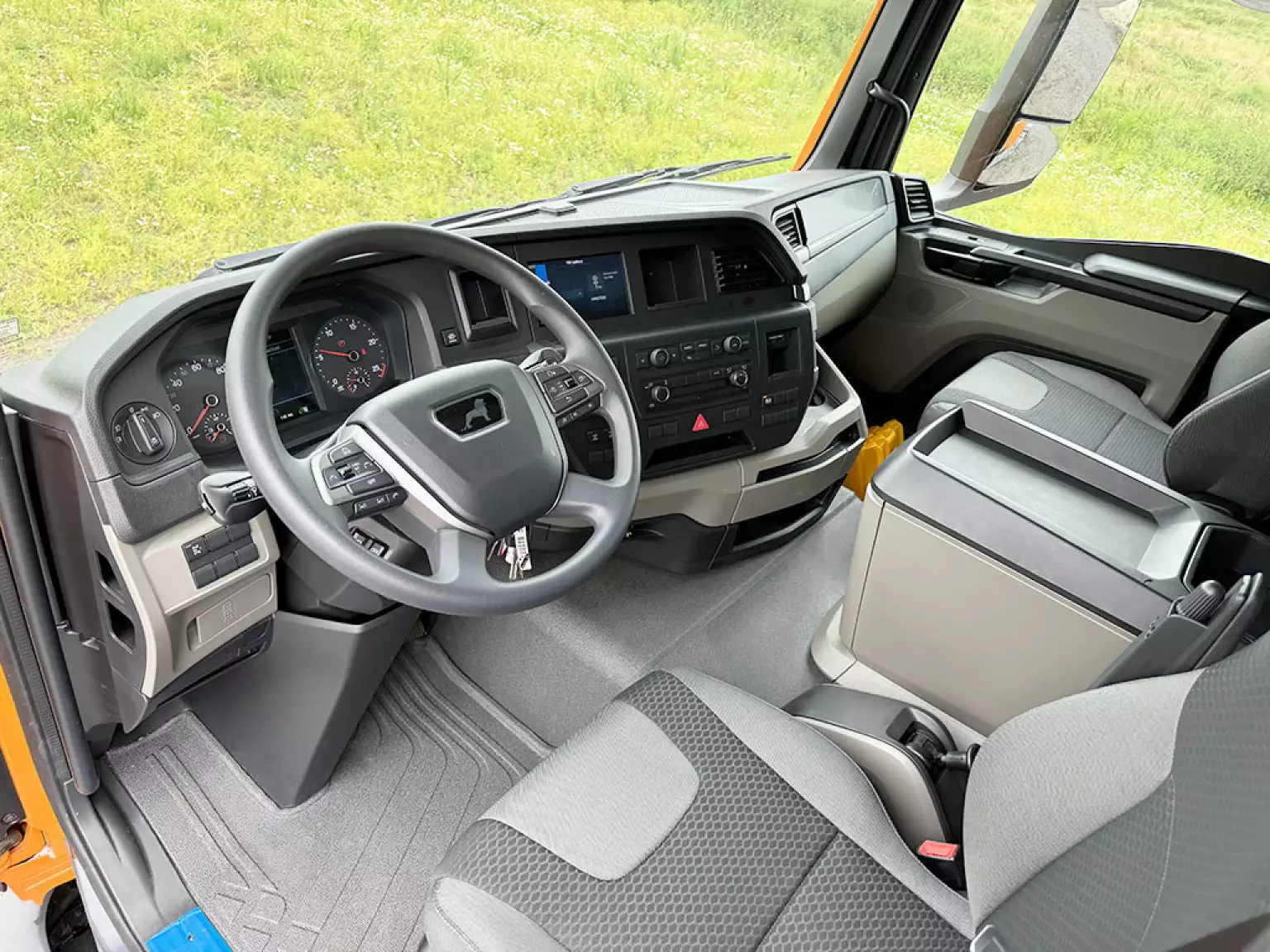

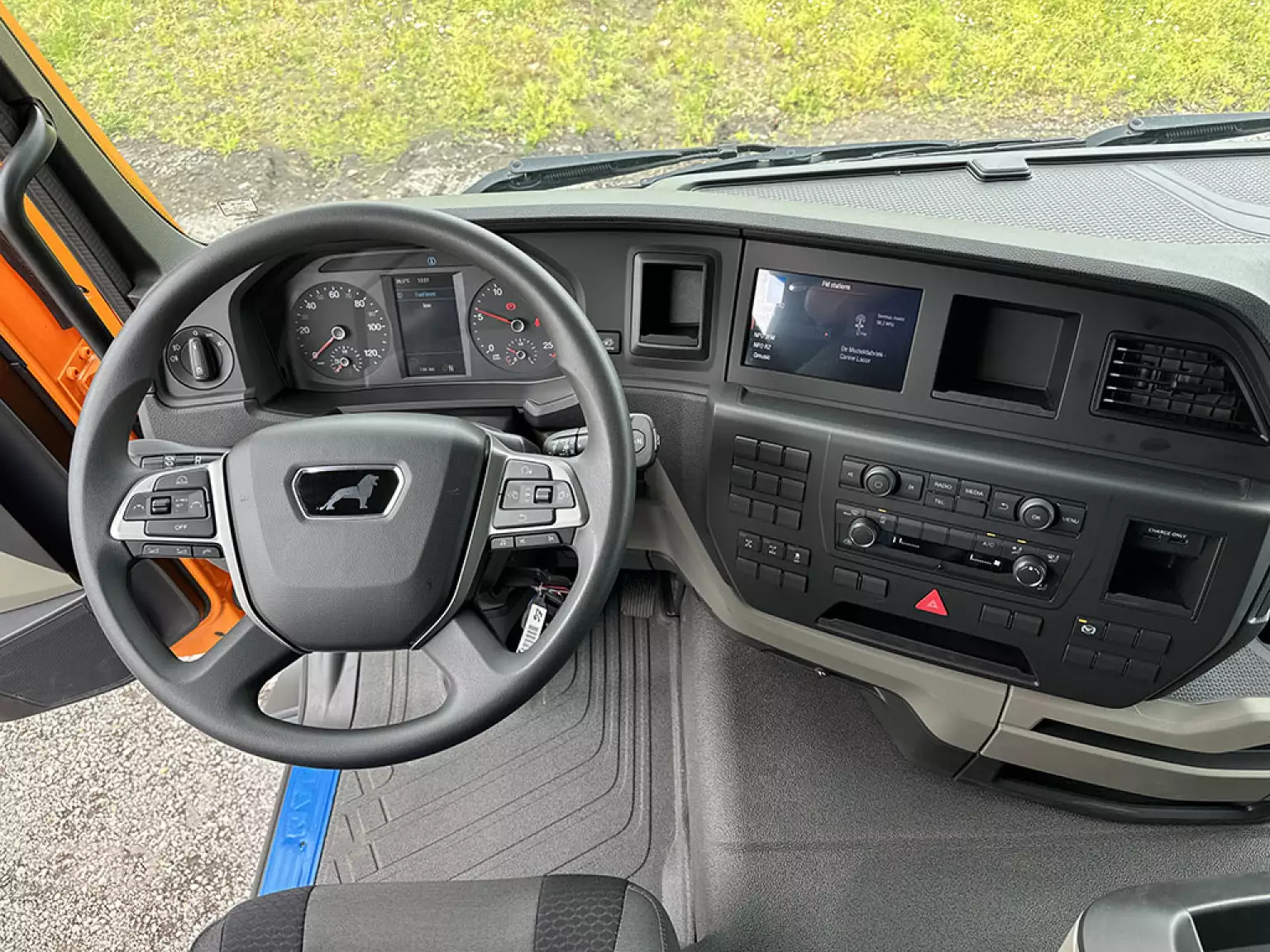

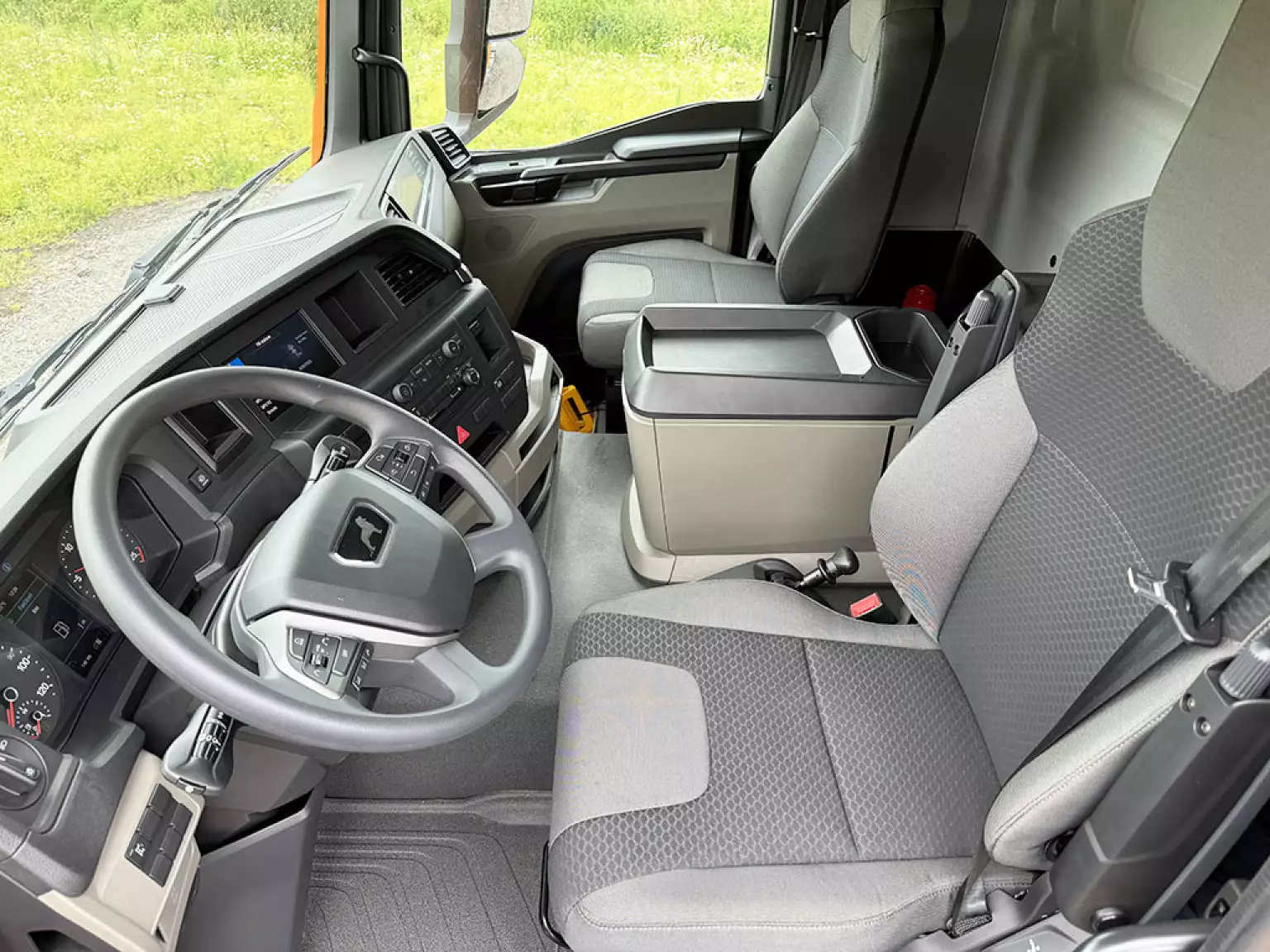

Cabin Day

Total weight GVW 41.000 kg

Vehicle length 9.200 mm

Vehicle width 2.500 mm

Vehicle height 3.210 mm

Model year 2022

Production year 2022

Superstructure Chassis Cabin

Remarks Fuel tank: 400 ltr.
Air conditioning
Retarder 35
9.2 ton front axles
9.5 ton front suspension
13 ton rear axles
13 ton suspension
Low mining spec i=6.00 axle ratio
Maximum speed 60km/h

Can be fitted on 325/95R24 tires as an option.

Specification sheets

Download PDF:: vma1515-man-tgs-41480-bb-ch-8x4-chassis-cabin-en
Download PDF:: vma1515-man-tgs-41480-bb-ch-8x4-chassis-cabin-fr
