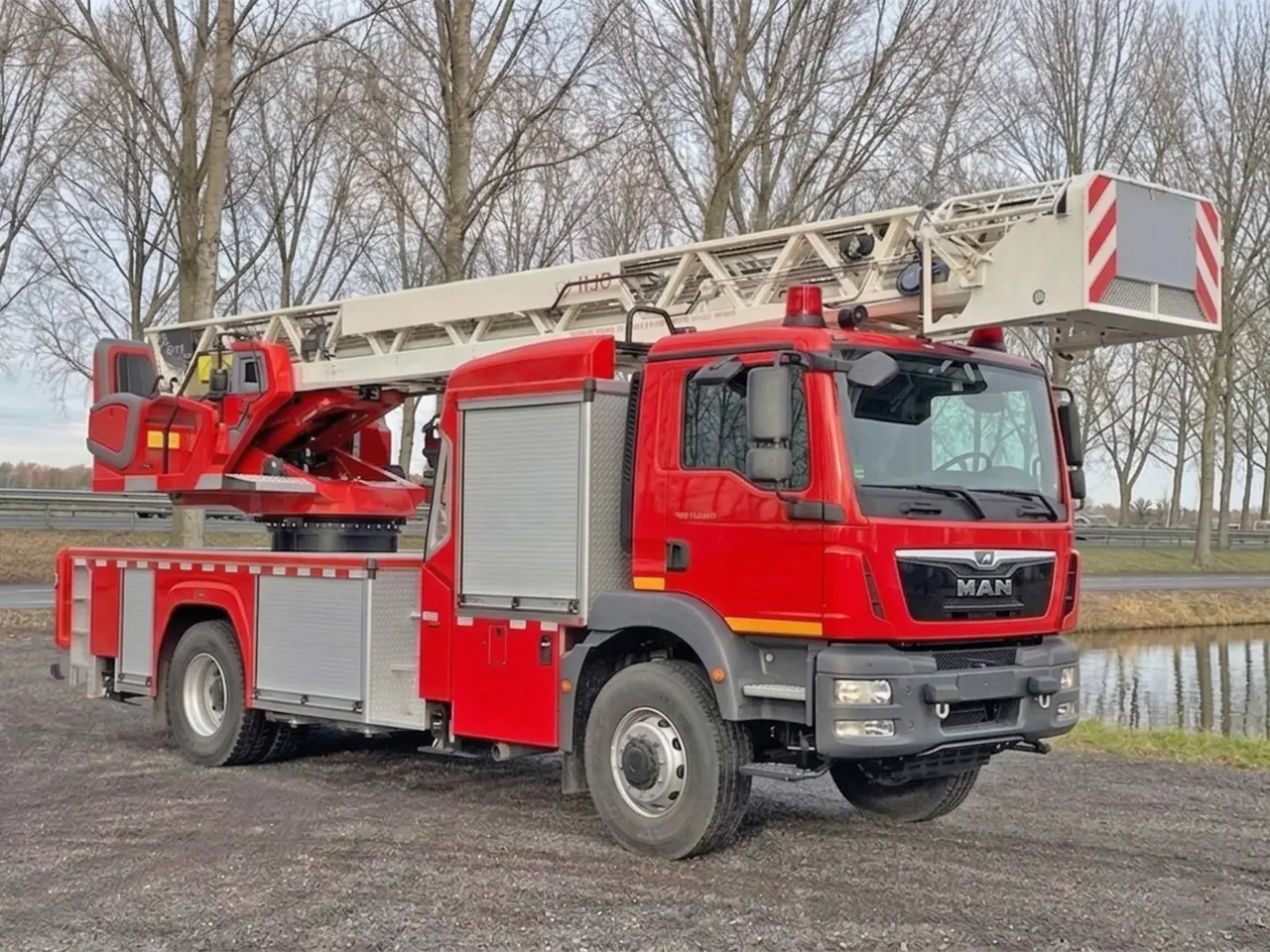

MAN TGM 18.250 BB CH 4x2 Fire Fighter Truck
4x2
250hp/184kW
EURO-5
Left hand drive
Price on request
Specifications
General
- ID
- Q00229
- Brand
- MAN
- Construction
- Fire Fighter Truck
- Construction volume
- 32 Mtr.
- Fuel
- Diesel
- Production year
- 2025
- Model year
- 2025
- Vehicle status
- New / Unused
Engine
- Engine type
- D0836LFL89
- Emission code
- EURO-5
- Engine power
- 250hp/184kW
Cabin
- Cabin
- Day
- Steering
- Left hand drive
Gearbox
- Transmission
- Automatic
- Gearbox
- Powermatic 08.13 OD
- PTO
- Flywheel
Chassis
- Wheel base
- 5.200 mm
- GVW
- 18.000 kg
- Axle configuration
- 4x2
- Suspension
- Spring
Dimensions
- External dimension
- 11.320 x 2.500 x 3.800 mm
Axles
Axle 1
- Steering
- Yes
- Tires
- Single
- Brakes
- Disc
- Suspension
- Spring
- Tire size
- 295/80R22.5
Axle 2
- Steering
- No
- Tires
- Double
- Brakes
- Disc
- Suspension
- Spring
- Driven
- Yes
- Tire size
- 295/80R22.5
Remarks
Fuel tank: 150 ltr.AdBlue tank: 35 ltr.
Air conditioning
Equipped with fire fighting engine and 32 mtr. ladder:
4+4+1 lockers layout
Tank: water 2.000 ltr.
Tank: foam 200 ltr.
Pump: 3000 N located at the rear.
Fire Fighting Centrifugal Pump 3.000 lpm. at 10 bar 3.000 ltr/pm 40 bar 250 ltr/pm.
Outlets 2 units 2-inch spherical type outlets with STORZ couplings
First intervention hose 1 units
Hydraulic ladder with basket base 30 mtr. at an angle of 750.
Basket capacity: 250 kg to 400 kg.
Complete specification in pdf.
