In stock (2)

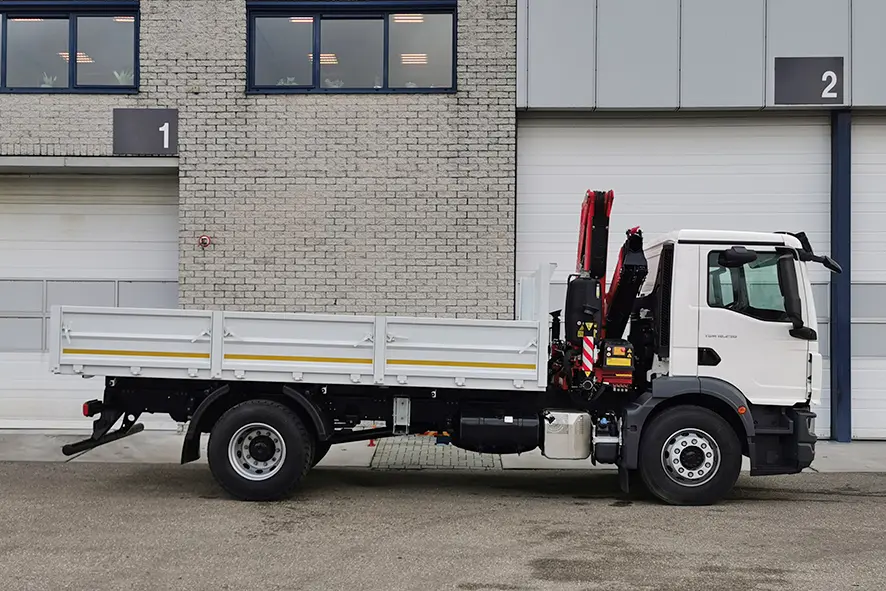

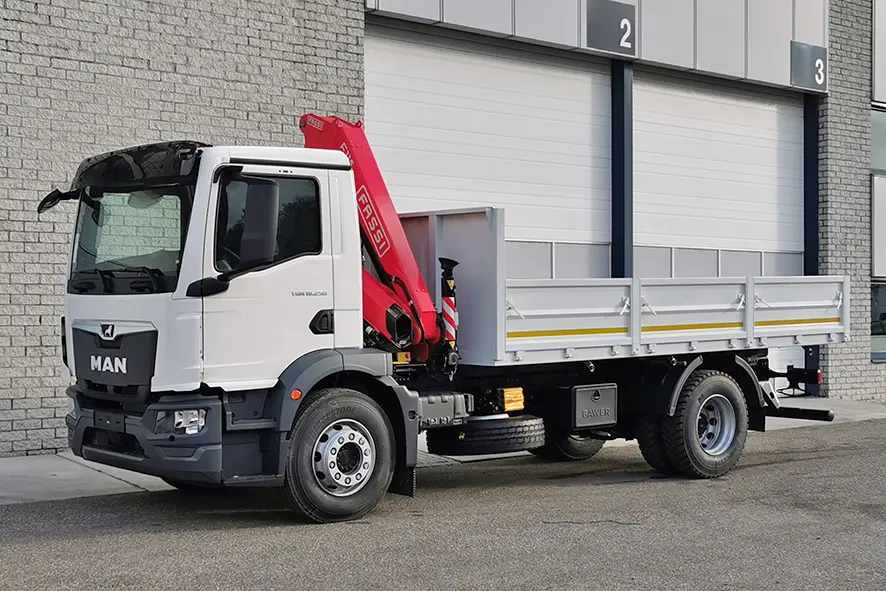

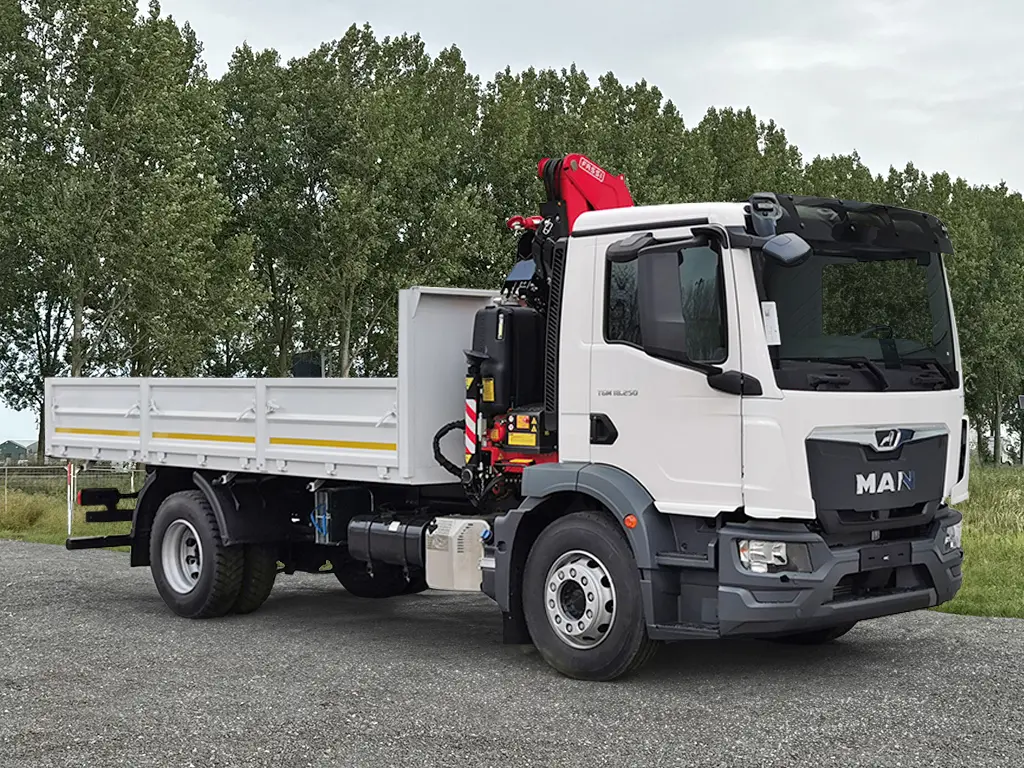

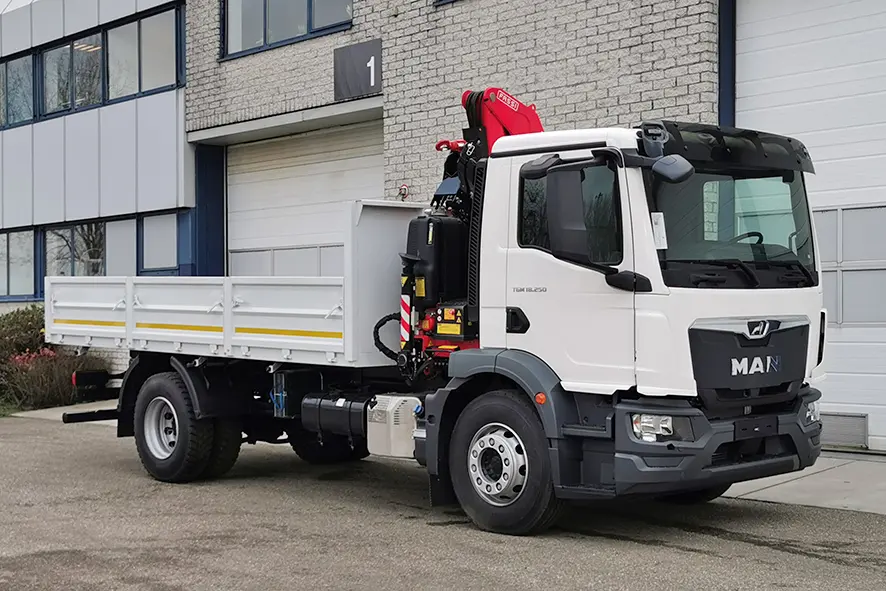

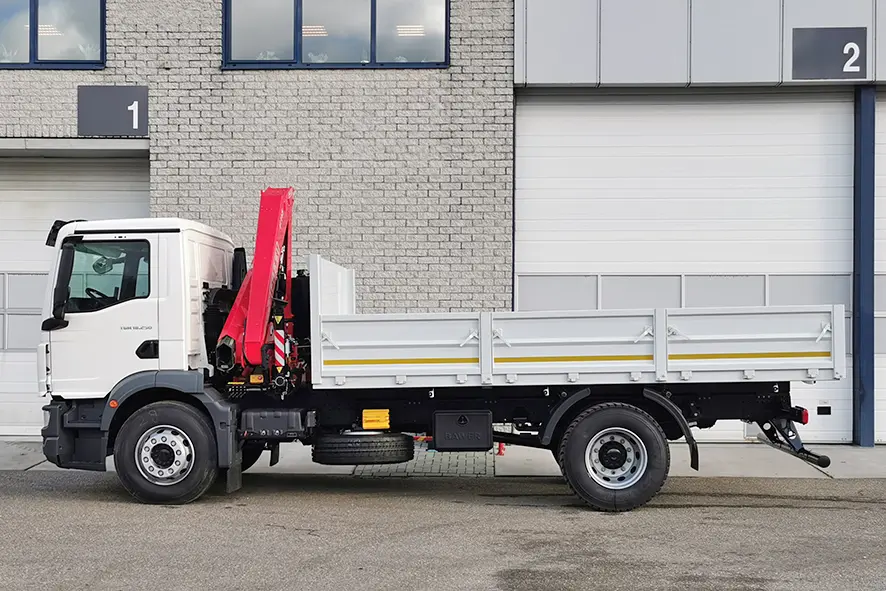

MAN TGM 18.250 BB CH 4x2 Crane Truck
4x2
250hp/184kW
EURO-4
Left hand drive
€ 125.000
Net unit price EXW
Specifications
General
- ID
- VMA1583
- Brand
- MAN
- Construction
- Crane Truck
- Construction brand
- Fassi
- Fuel
- Diesel
- Production year
- 2022
- Model year
- 2023
- Vehicle status
- New / Unused
Engine
- Engine type
- D0836LFL95
- Emission code
- EURO-4
- Engine power
- 250hp/184kW

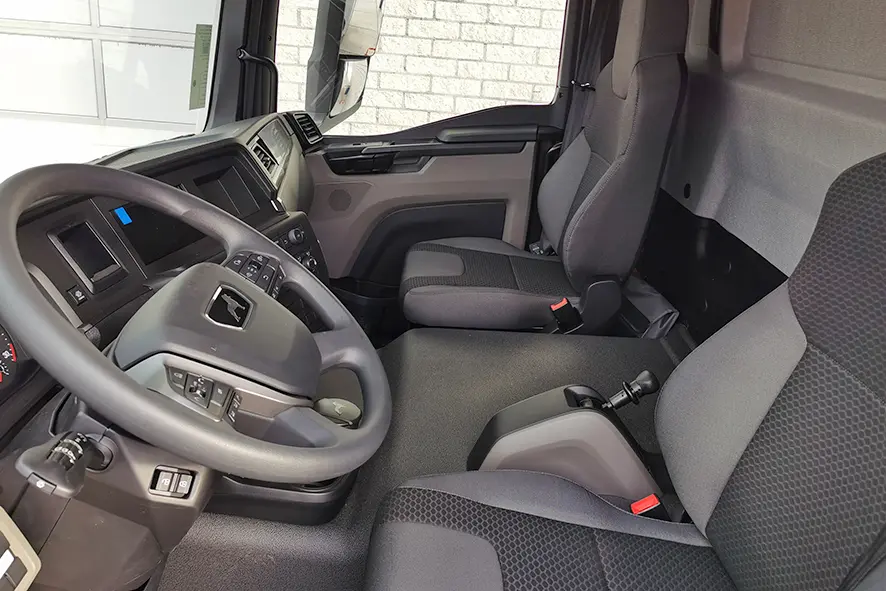

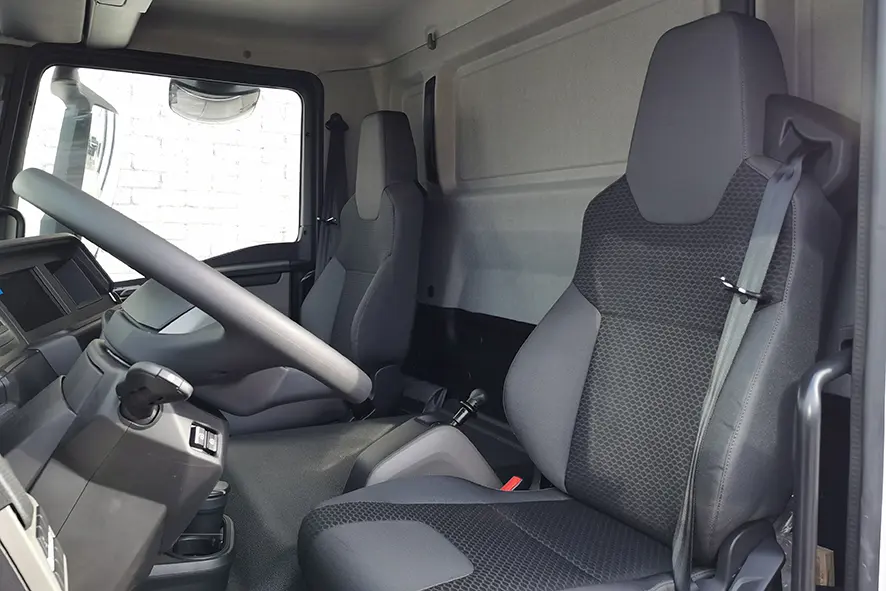

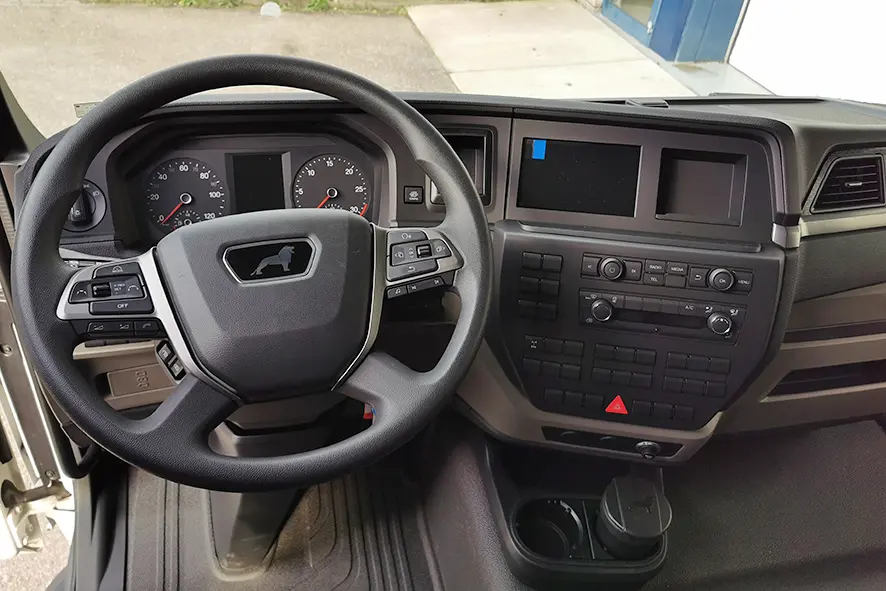

Cabin

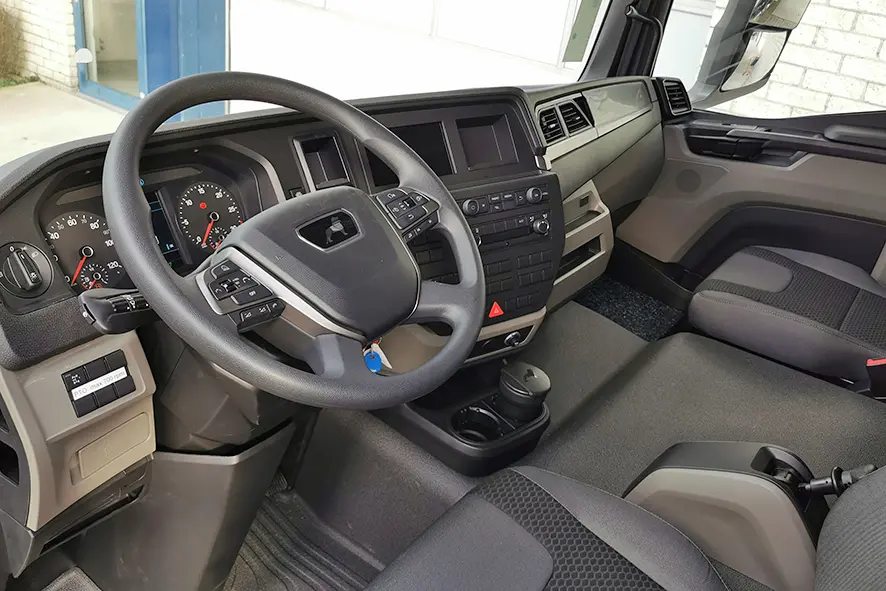

- Cabin
- Day
- Steering
- Left hand drive
Gearbox
- Transmission
- Automatic

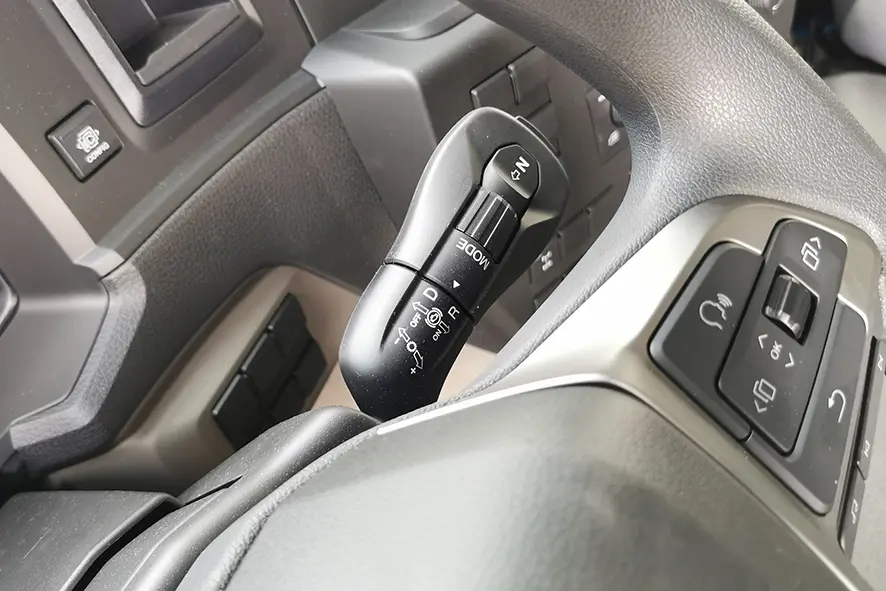

- Gearbox
- TipMatic 12.12 OD
Chassis
- Wheel base
- 4.425 mm
- GVW
- 18.600 kg
- Axle configuration
- 4x2
- Suspension
- Spring
Dimensions
- External dimension
- 8.100 x 2.500 x 3.400 mm
- Empty weight
- 11.500 kg
Axles
Axle 1
- Steering
- Yes
- Tires
- Single
- Brakes
- Disc
- Suspension
- Spring
- Driven
- No

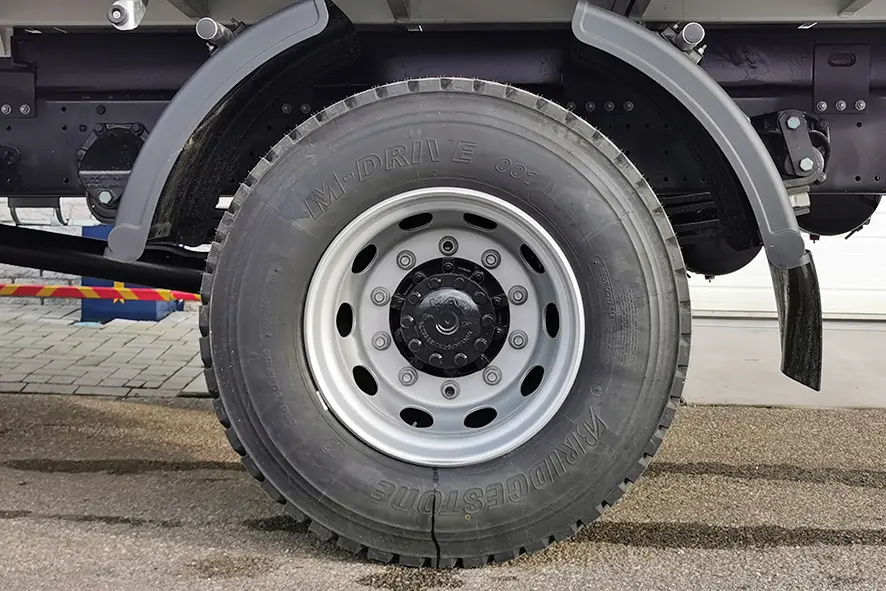

- Tire size
- 295/80R22.5
Axle 2
- Steering
- No
- Tires
- Double
- Brakes
- Disc
- Suspension
- Spring
- Driven
- Yes
- Tire size
- 295/80R22.5
Remarks

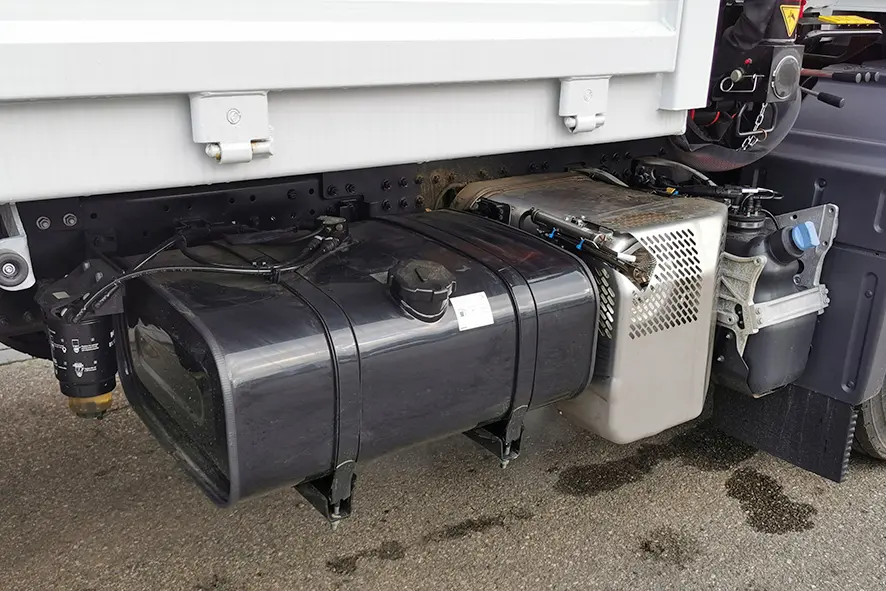

Fuel tank: 150 ltr.AdBlue tank: 35 ltr.
Air conditioning

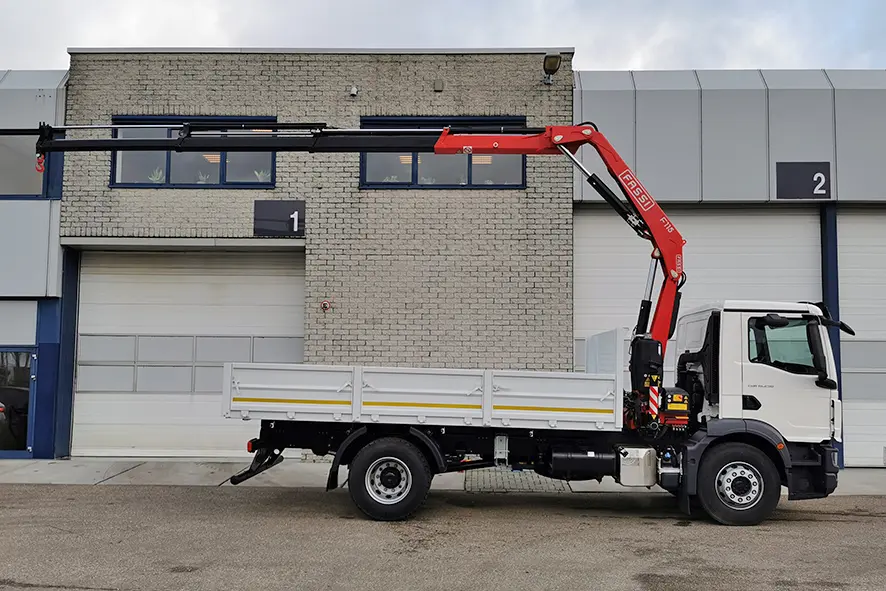

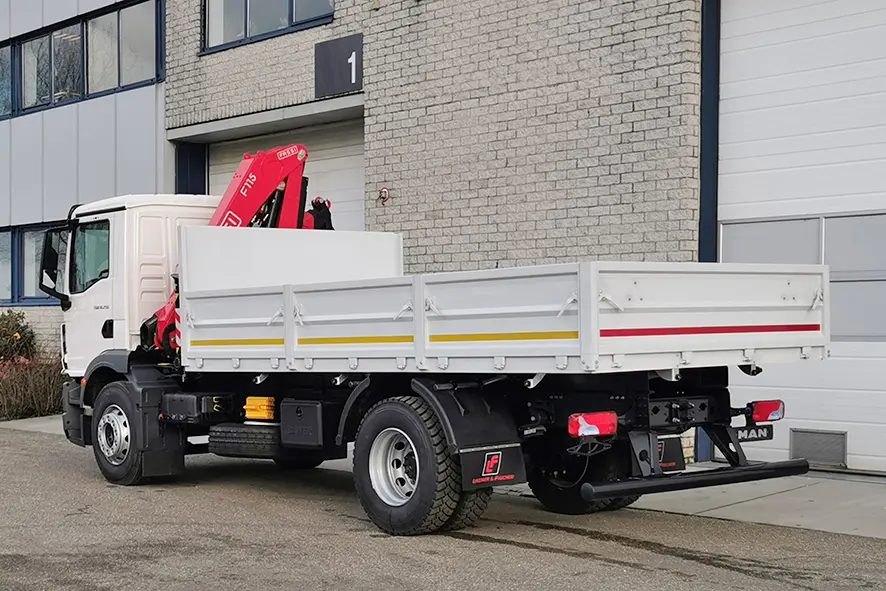

Equipped with crane and flatbed:
Type: Fassi F115A.0.23
Lifting moment 128.0 kNm

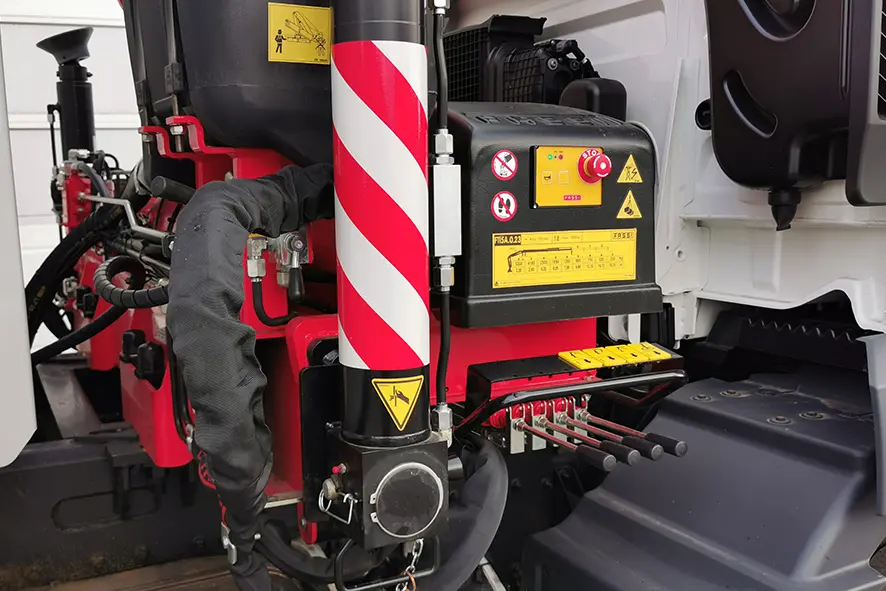

Emergency cut off

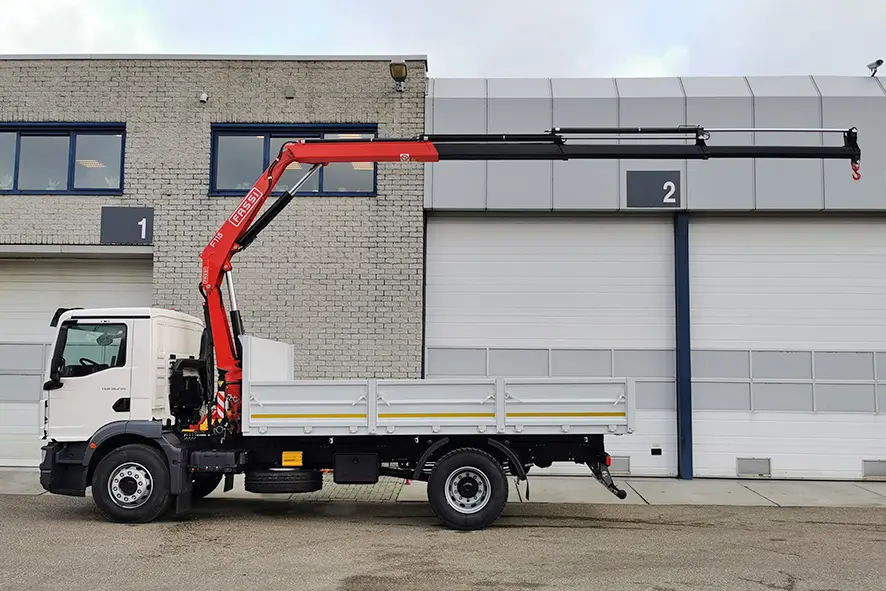

3 section hydraulic extension boom

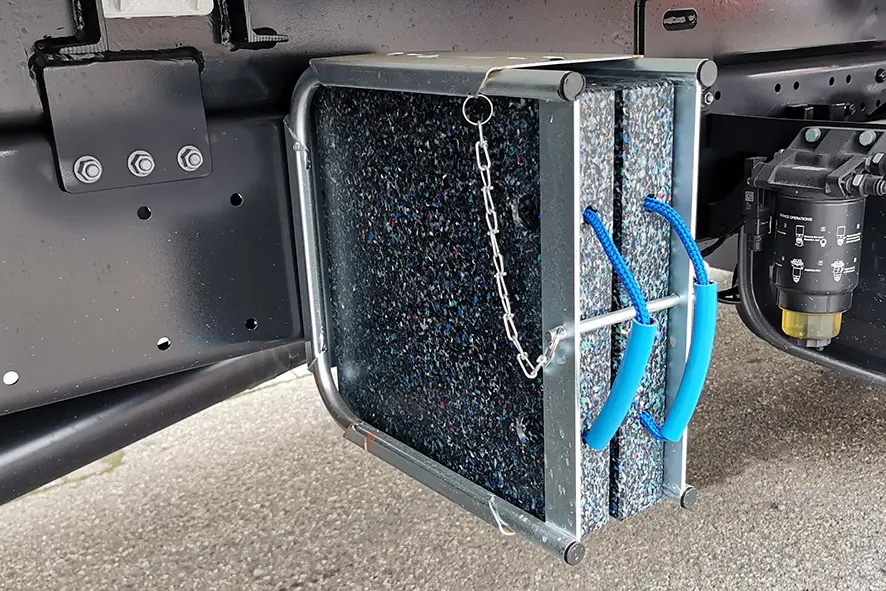

Manually extendable outriggers

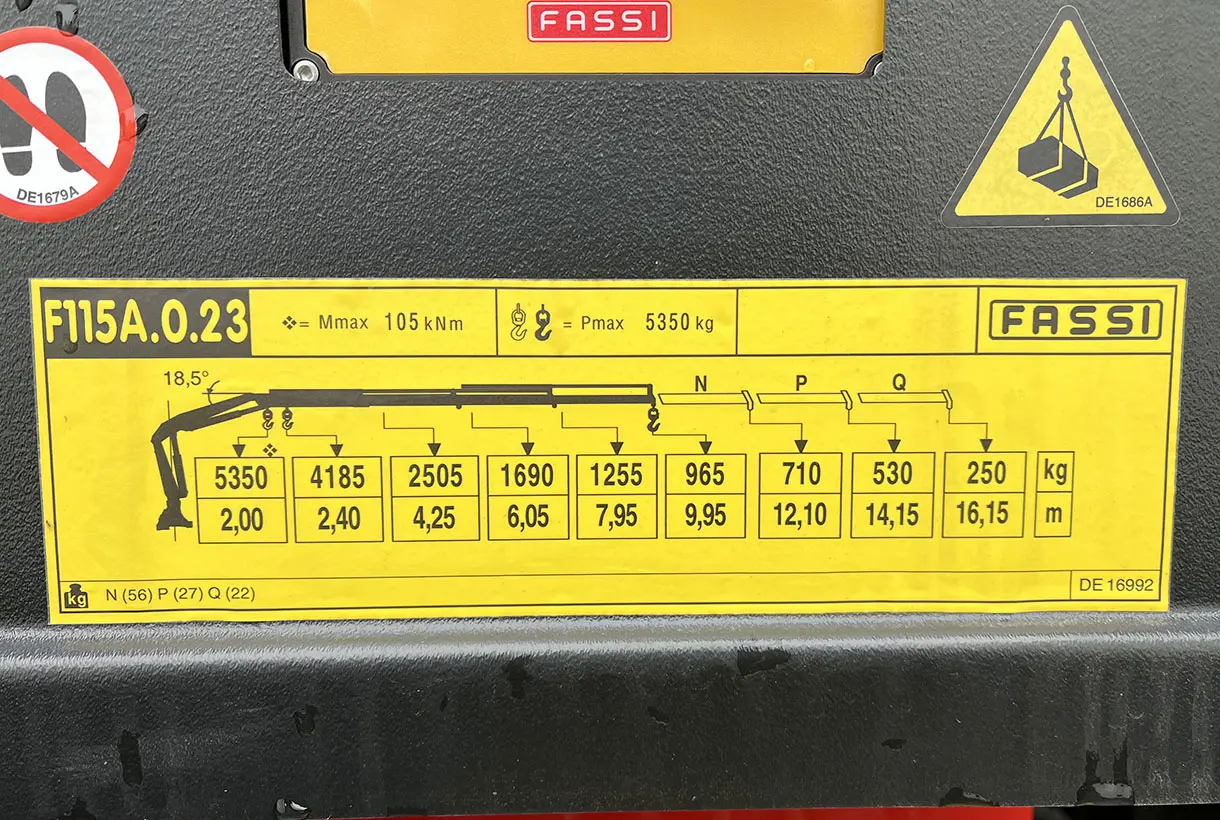

Lifting capacity:
5.350 kg / 2.00 m
4.185 kg / 2.40 m
2.505 kg / 4.25 m
1.690 kg / 6.05 m
1.255 kg / 7.95 m
965 kg / 9.95 m

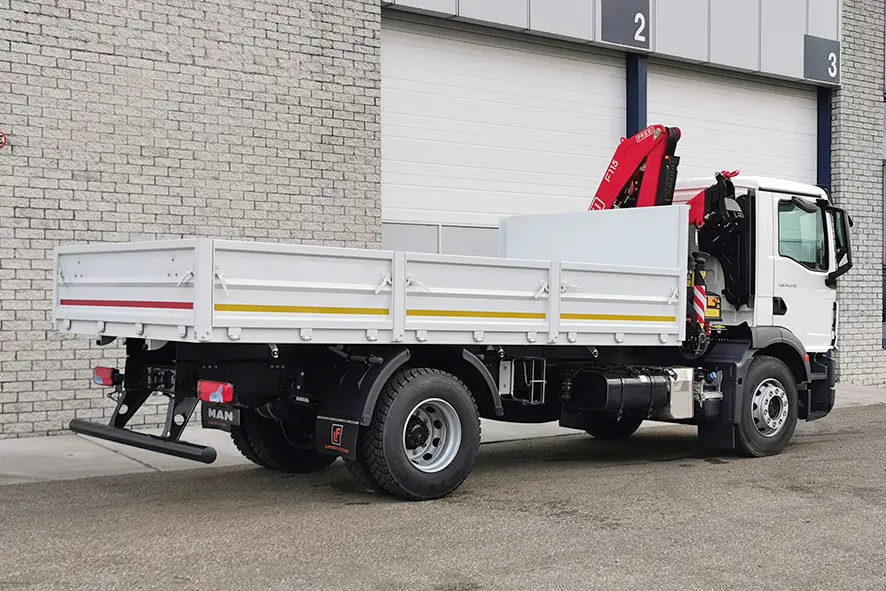

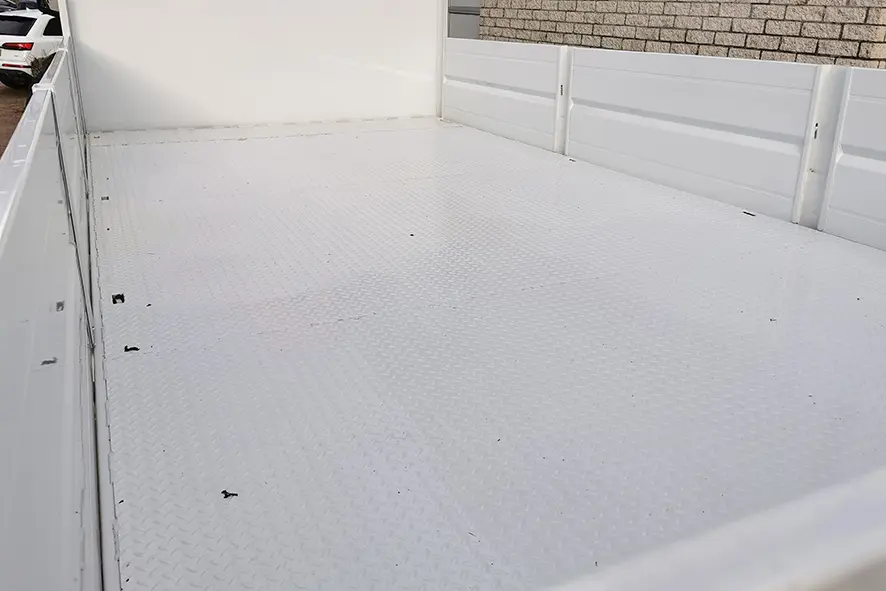

Open flatbed body with foldable sideboards
Flatbed body dimensions (LxWxH): 5.100 x 2.550 x 600 mm.
Complete specification in PDF.
