Pre-order
Available (2)

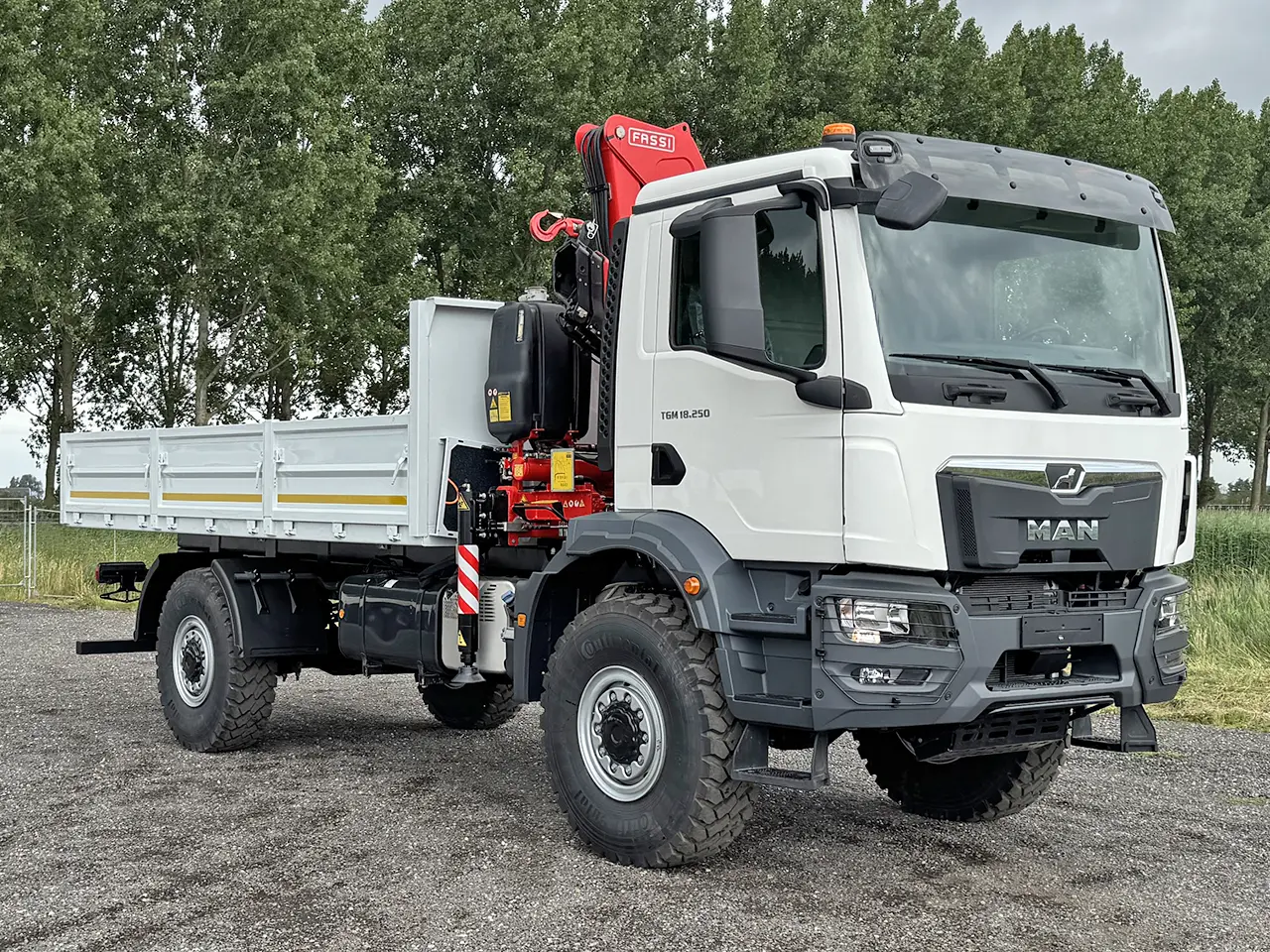

MAN TGM 18.250 BB CH Crane Truck 4x4
4x4
250hp/184kW
EURO-5
Left hand drive
€ 145.000
Net unit price EXW
Specifications
General
- ID
- VMA5386
- Brand
- MAN
- Construction
- Crane Truck
- Construction brand
- Fassi
- Fuel
- Diesel
- Production year
- 2024
- Model year
- 2024
- Vehicle status
- New / Unused
Engine
- Engine type
- D0836LFL89
- Emission code
- EURO-5
- Engine power
- 250hp/184kW
Cabin
- Cabin
- Day
- Steering
- Left hand drive
Gearbox
- Transmission
- Automatic
- Gearbox
- TipMatic 12.12 OD
- PTO
- PTO Prepared
Chassis
- Wheel base
- 4.500 mm
- GVW
- 17.500 kg
- Axle configuration
- 4x4
- Suspension
- Spring
Axles
Axle 1
- Steering
- Yes
- Tires
- Single
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes
- Tire size
- 14.00R20
Axle 2
- Steering
- No
- Tires
- Single
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes
- Tire size
- 14.00R20
Remarks
Fuel tank: 300 ltr.AdBlue tank: 35 ltr.
Air conditioning
Equipped with Fassi crane and flatbed:
Type: F155A.0.22
Lifting moment: 133 KNm.
Standard hydraulic reach: 8.30 mtr.
Load at the max horizontal outreach: 1660 kg.
Hydraulically extra extendable outriggers
Long fixing rods
Lifting capacity:
6.160 kg / 2.15 m
3.150 kg / 4.30 m
2.190 kg / 6.10 m
1.660 kg / 8.00 m
Open flatbed body with foldable sideboards.
Complete specification in PDF.
Pre-Order Status:
Trucks are not yet in stock, they are in production and delivery to us will take place from 09/2026 - 10/2026. Please contact us for further information. Pictures do not represent the exact final product and will be updated when the trucks arrive.
