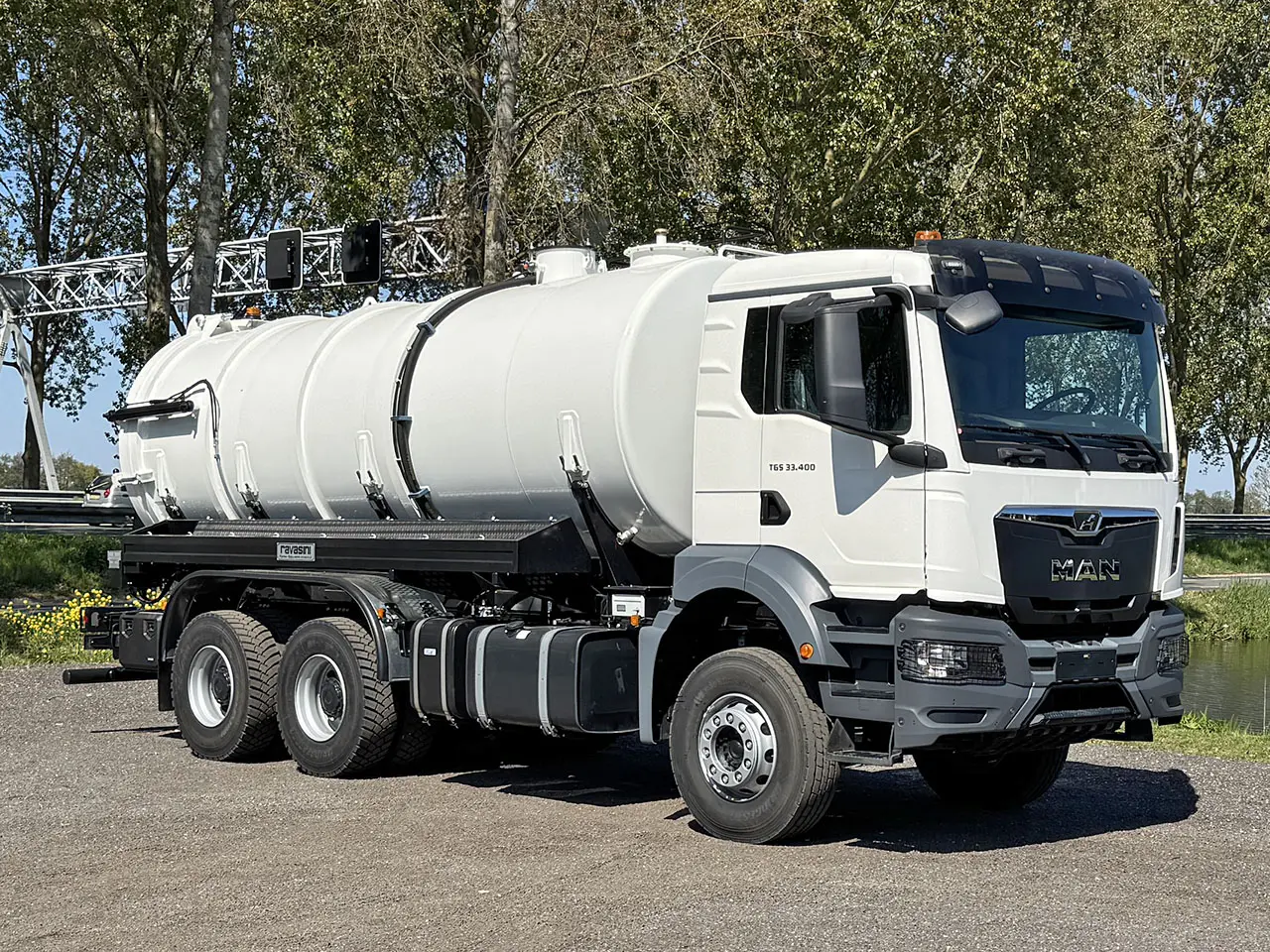

MAN TGS 33.400 BB CH Sewage Tank Truck 6x4
6x4
400hp/294kW
EURO-2
Left hand drive
Price on request
Specifications
General
- ID
- VMA5165
- Brand
- MAN
- Construction
- Sewage Tank Truck
- Construction brand
- Ravasini
- Construction volume
- 17.000 Ltr.
- Fuel
- Diesel
- Production year
- 2025
- Model year
- 2026
- Vehicle status
- New / Unused
Engine
- Engine type
- D2066LF06
- Emission code
- EURO-2
- Engine power
- 400hp/294kW
Cabin
- Cabin
- Day
- Steering
- Left hand drive
Gearbox
- Transmission
- Automatic
- Gearbox
- TipMatic 12.28 OD
- PTO
- NH/4C
Chassis
- Wheel base
- 3.900 mm
- GVW
- 33.000 kg
- Axle configuration
- 6x4
- Suspension
- Spring
Dimensions
- External dimension
- 8.850 x 2.500 x 3.820 mm
- Empty weight
- 14.400 kg
Axles
Axle 1
- Steering
- Yes
- Tires
- Single
- Brakes
- Drum
- Suspension
- Spring
- Tire size
- 315/80R22.5
Axle 2
- Steering
- No
- Tires
- Double
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes
- Tire size
- 315/80R22.5
Axle 3
- Steering
- No
- Tires
- Double
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes
- Tire size
- 315/80R22.5
Remarks
Fuel tank: 400 ltr.Air conditioning
Equipped with Ravasini sewage tank:
Capacity: 17.000 ltr. (15.000 ltr. dirty water + 2.000 ltr. clear water)
Internal antisloshing baffles, external reinforcement rings
Eye level indicator placed on the rear end of the tank
Decanter complete with floater and pilot light level indicator
Vacuum pump installed between the cab and the tank, hydraulically driven, capacity 15.000 l/min (900 m3/h)
Control and instruments panel placed on the rear side of the tank
Side hose carriers with structure and steel profiles
Complete specification in PDF.
Pre-Order Status:
Trucks are not yet in stock, they are in production and delivery to us will take place from 10/2026 - 11/2026. Please contact us for further information. Pictures do not represent the exact final product and will be updated when the trucks arrive.
