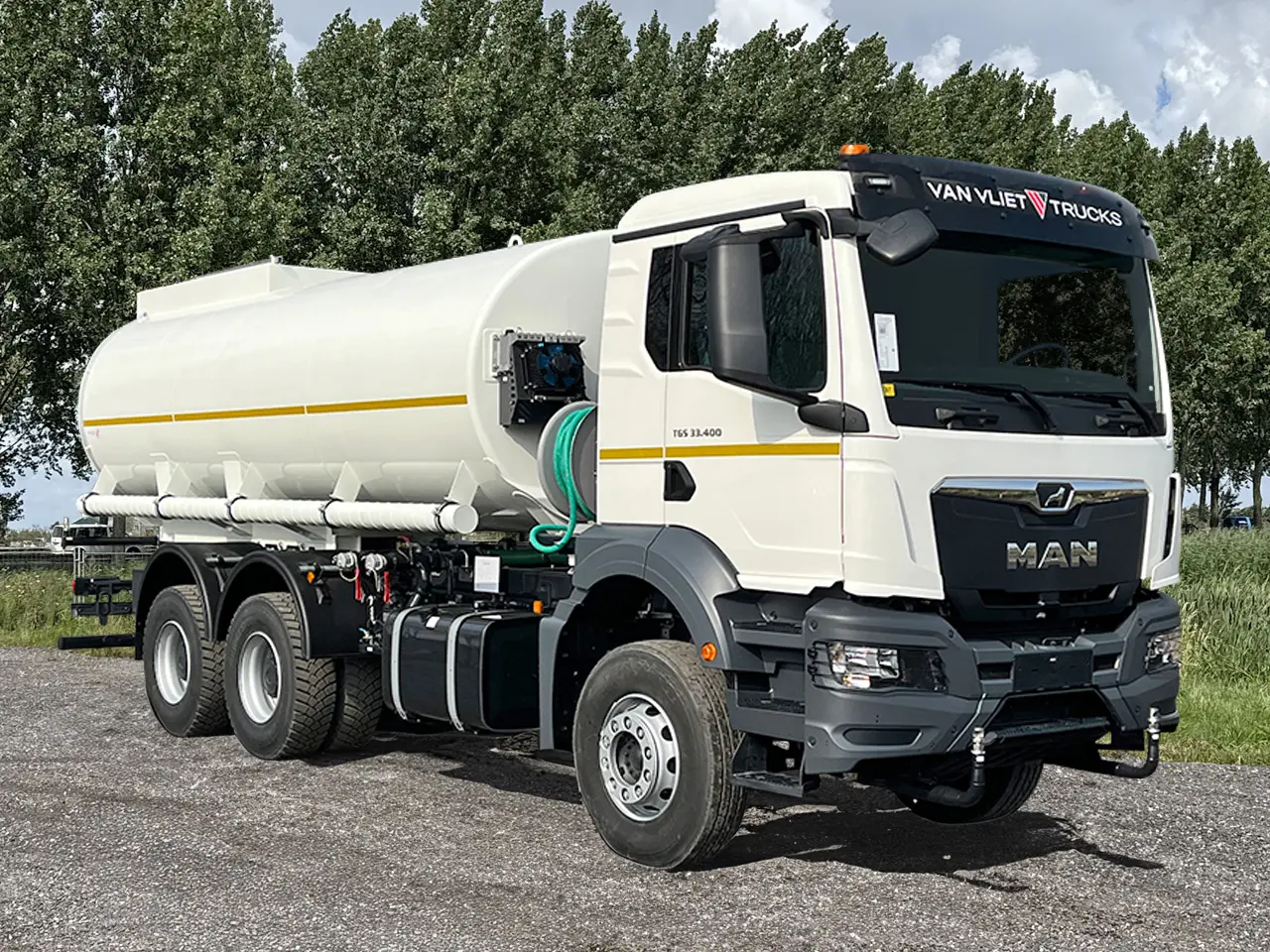

MAN TGS 33.400 BB CH Water Tank Truck 6x6
6x6
400hp/294kW
EURO-2
Left hand drive
Price on request
Specifications
General
- ID
- VMA5174
- Brand
- MAN
- Construction
- Water Tank Truck
- Construction brand
- Lindner-Fischer
- Construction volume
- 20.000 Ltr.
- Fuel
- Diesel
- Model year
- 2026
- Vehicle status
- New / Unused
Engine
- Engine type
- D2066 LF06
- Emission code
- EURO-2
- Engine power
- 400hp/294kW
Cabin
- Cabin
- Day
- Steering
- Left hand drive
Gearbox
- Transmission
- Automatic
- Gearbox
- TipMatic 12.28 OD
- PTO
- NH/4C
Chassis
- Wheel base
- 3.900 mm
- GVW
- 33.000 kg
- Axle configuration
- 6x6
- Suspension
- Spring
Axles
Axle 1
- Steering
- Yes
- Tires
- Single
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes
- Tire size
- 315/80R22.5
Axle 2
- Steering
- No
- Tires
- Double
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes
- Tire size
- 315/80R22.5
Axle 3
- Steering
- No
- Tires
- Double
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes
- Tire size
- 315/80R22.5
Remarks
Fuel tank: 400 ltr.Air conditioning
Equipped with 20.000 ltr. Lindner & Fischer water tank:
Type: TA200SW
One compartment
Transport of potable water
PTO driven water pump
Front and rear mounted spray bar with two special fan-nozzles (frog-type) pressure working.
Adjustable spraying width with pump from approx. 10 mtr. to 12 mtr.
One hose reel, spring loaded, with 20 mtr. hose x 1 inch and manual discharge nozzle, mounted at appropriate position.
Open mesh walkway on the right-hand side of the manhole cover, with rear mounted foldable access ladder.
Complete specification in pdf.
Pre-Order Status:
Trucks are not yet in stock, they are in production and delivery to us will take place from 09/2026 - 10/2026. Please contact us for further information. Pictures do not represent the exact final product and will be updated when the trucks arrive.
