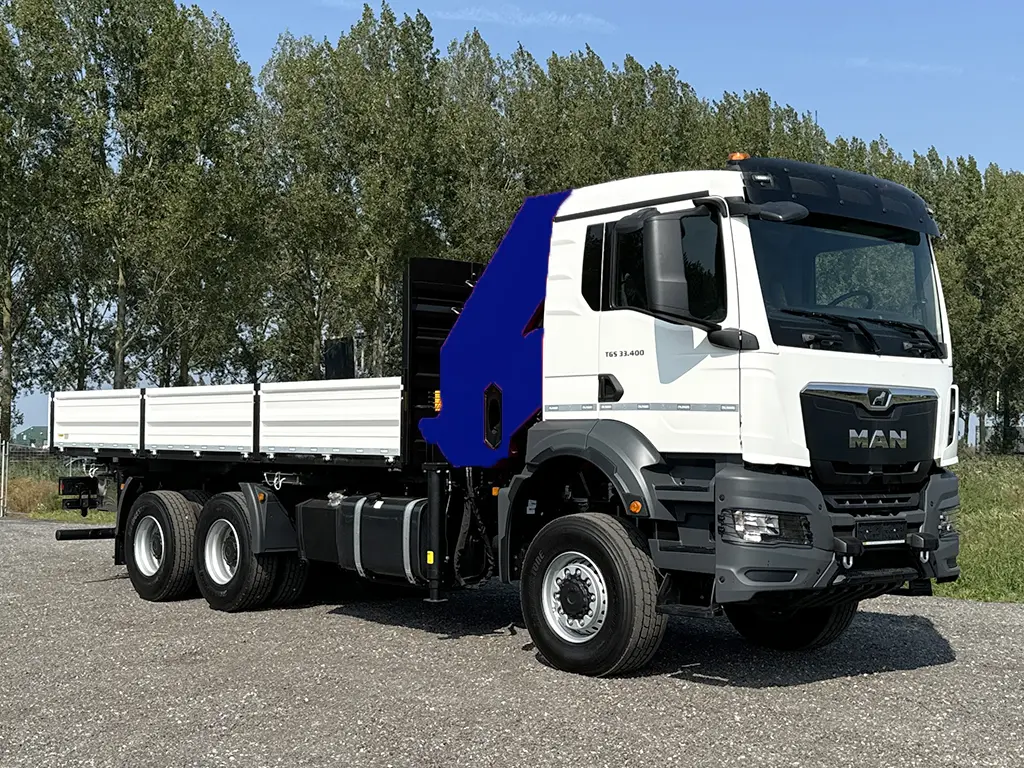

MAN TGS 33.400 BB CH Crane Truck 6x6
6x6
400hp/294kW
EURO-2
Left hand drive
€ 207.500
Net unit price EXW
Specifications
General
- ID
- VMA5387
- Brand
- MAN
- Construction
- Crane Truck
- Construction brand
- PM
- Fuel
- Diesel
- Production year
- 2024
- Model year
- 2024
- Vehicle status
- New / Unused
Engine
- Engine type
- D2066LF06
- Emission code
- EURO-2
- Engine power
- 400hp/294kW
Cabin
- Cabin
- Day
- Steering
- Left hand drive
Gearbox
- Transmission
- Automatic
- Gearbox
- Tipmatic 12.28 OD
- PTO
- NH/4C
Chassis
- Wheel base
- 4.500 mm
- GVW
- 33.000 kg
- Axle configuration
- 6x6
- Suspension
- Spring
Axles
Axle 1
- Steering
- Yes
- Tires
- Single
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes
- Tire size
- 385/65R22.5
Axle 2
- Steering
- No
- Tires
- Double
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes
- Tire size
- 315/80R22.5
Axle 3
- Steering
- No
- Tires
- Double
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes
- Tire size
- 315/80R22.5
Remarks
Fuel tank: 400 ltr.Airconditioning
Equipped with crane and flatbed:
PM 32524 S PX
Max lifting moment 27.80 tm
4 hydraulic boom extensions
Centralised Lubrification
Ground controls
Standard outriggers - Hydraulic pull out
Fixed stabilizer legs pads
Open flatbed body with foldable sideboards
Lifting capacity:
6.325 kg / 4.40 m
4.320 kg / 6.25 m
3.205 kg / 8.25 m
2.515 kg / 10.35 m
2.065 kg / 12.55 m
Complete specification in PDF.
Pre-Order Status:
Trucks are not yet in stock, they are in production and delivery to us will take place from 10/2026 - 11/2026. Please contact us for further information. Pictures do not represent the exact final product and will be updated when the trucks arrive.
