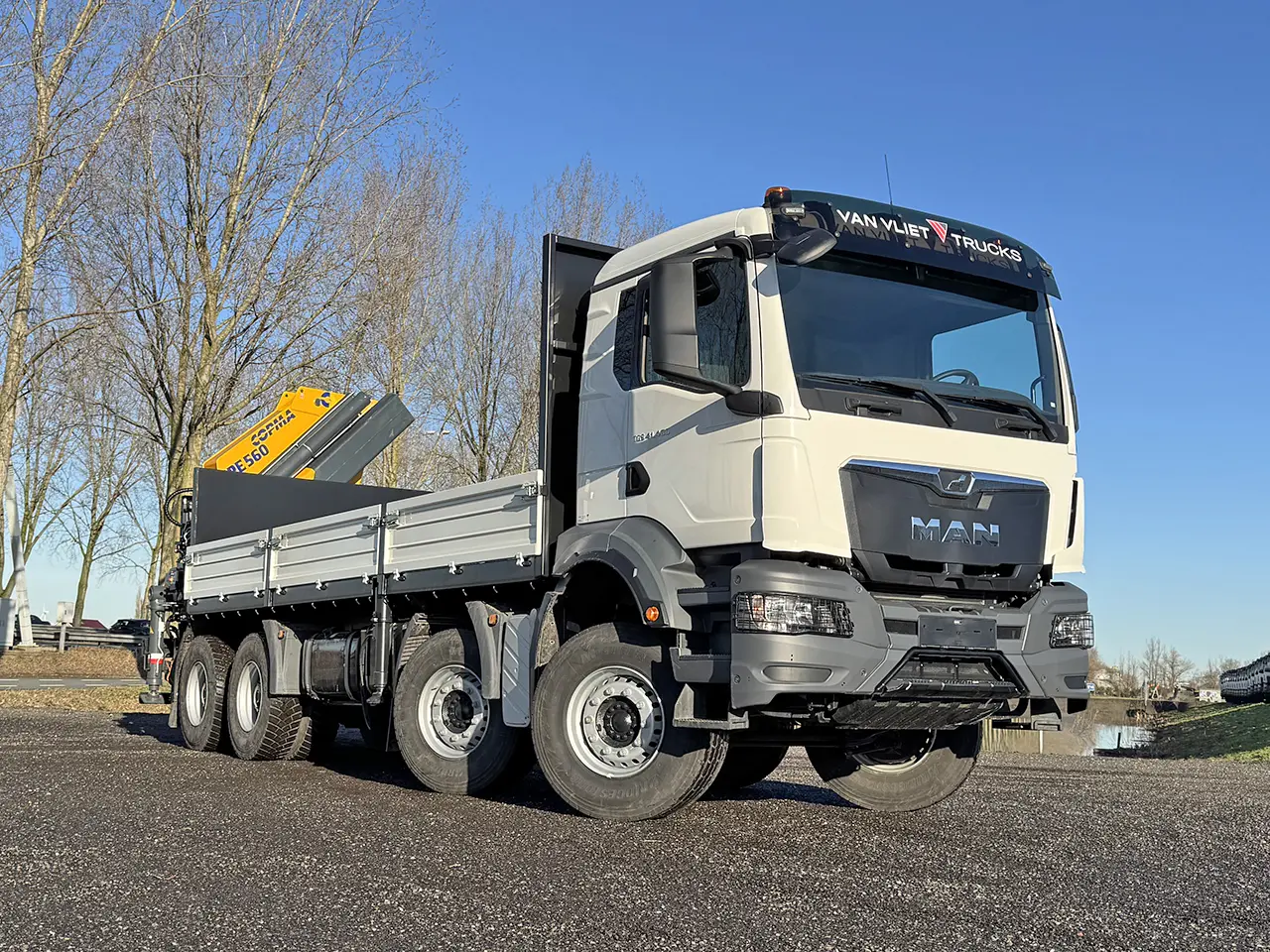

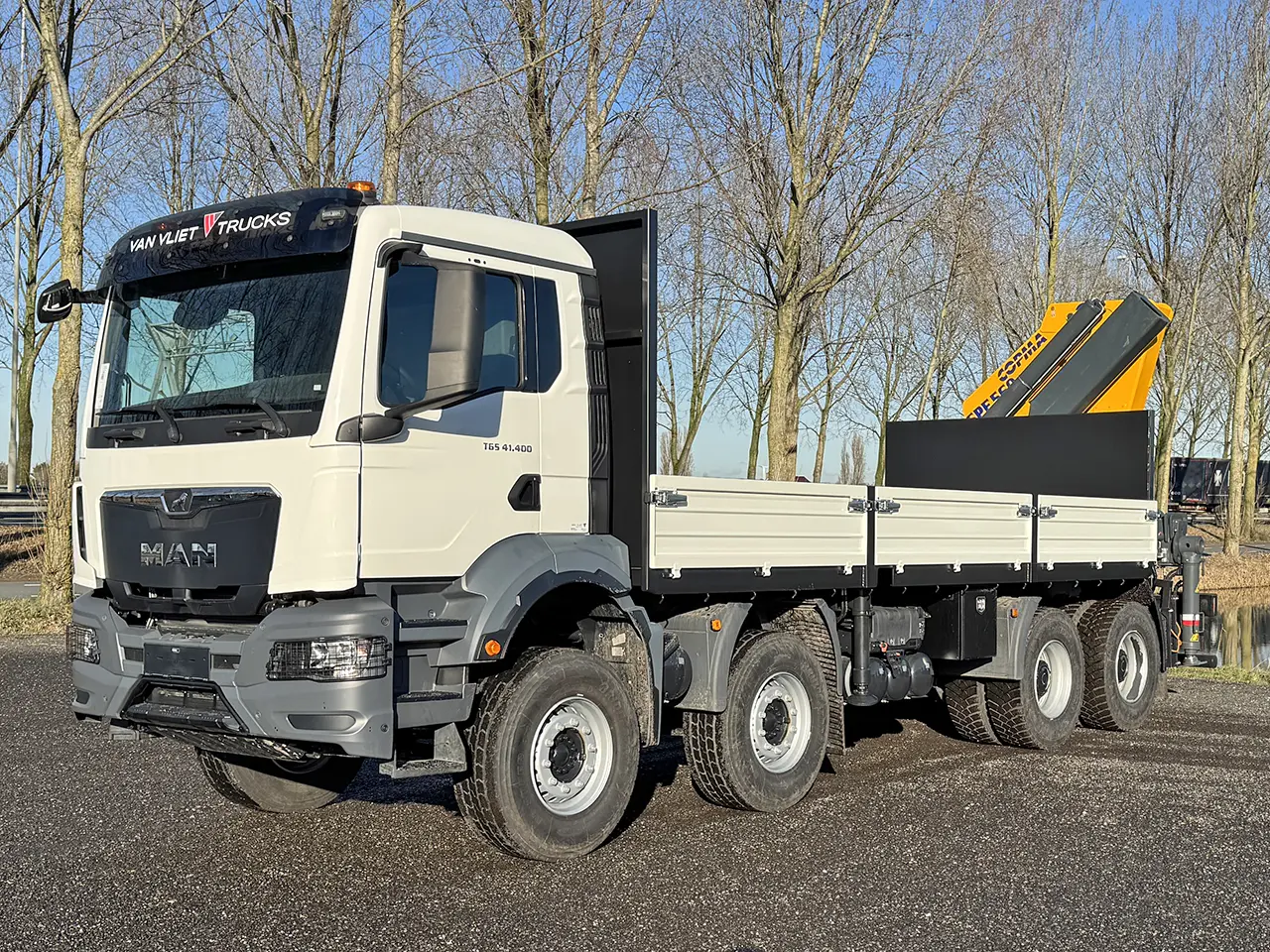

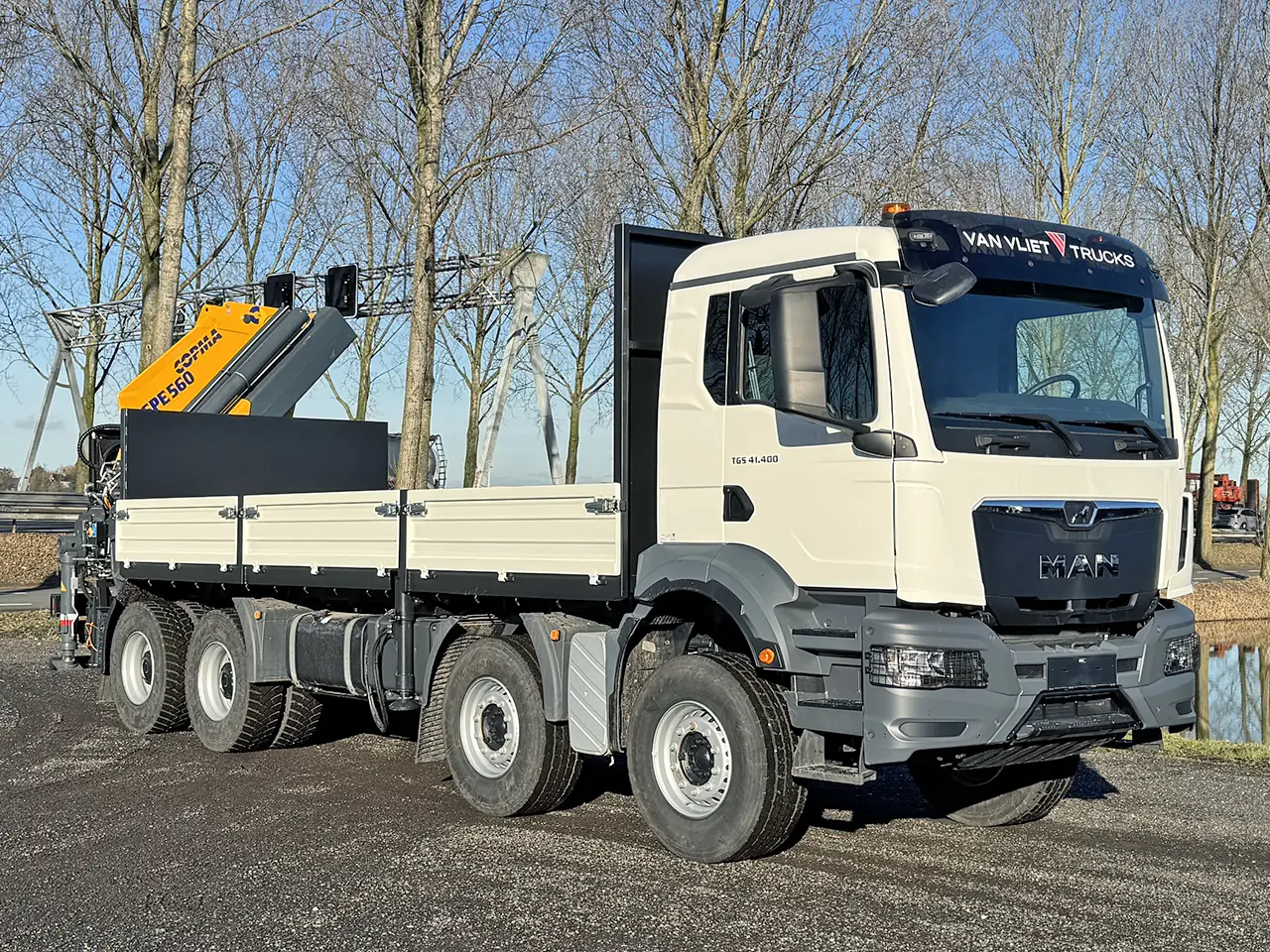

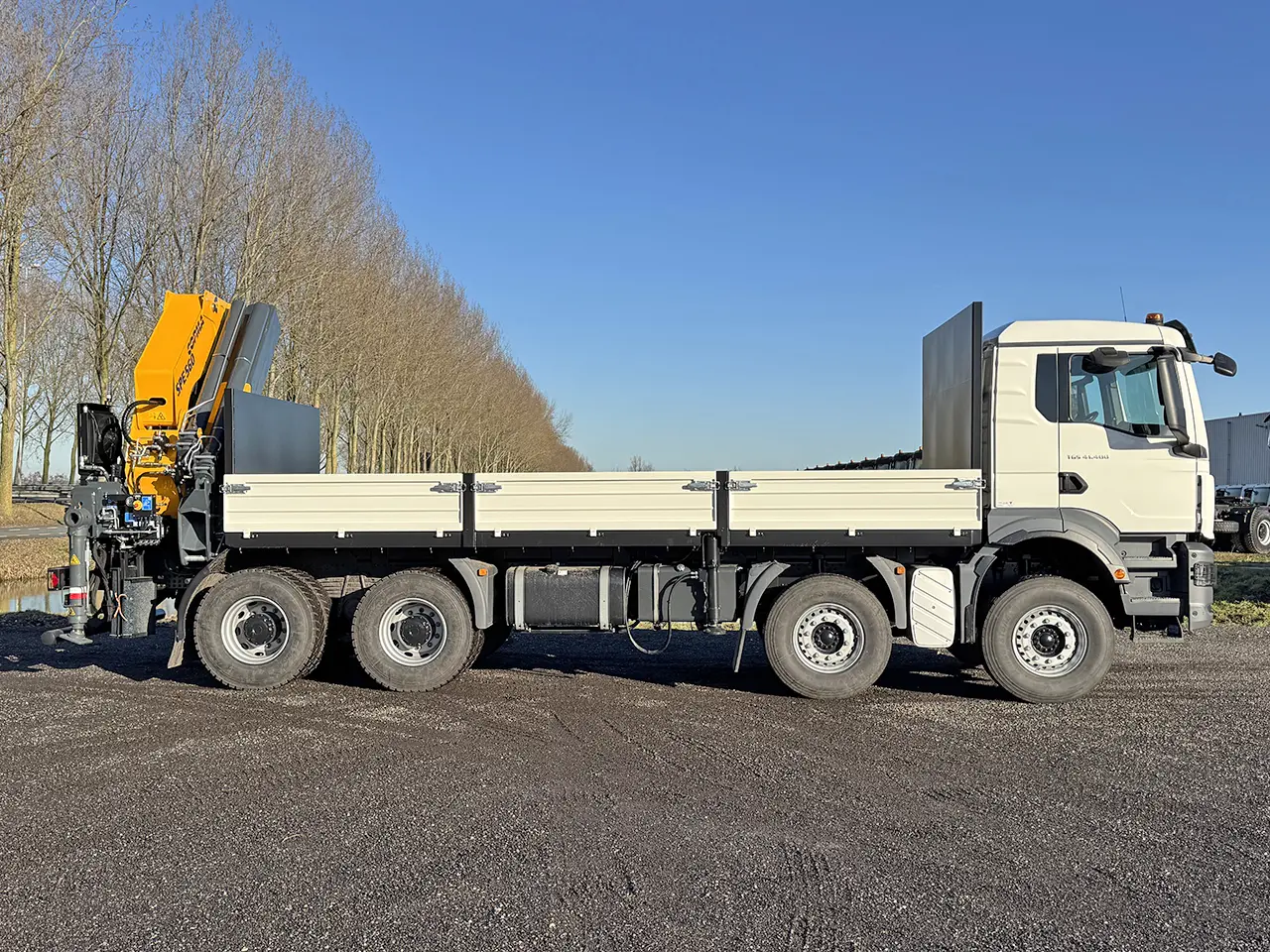

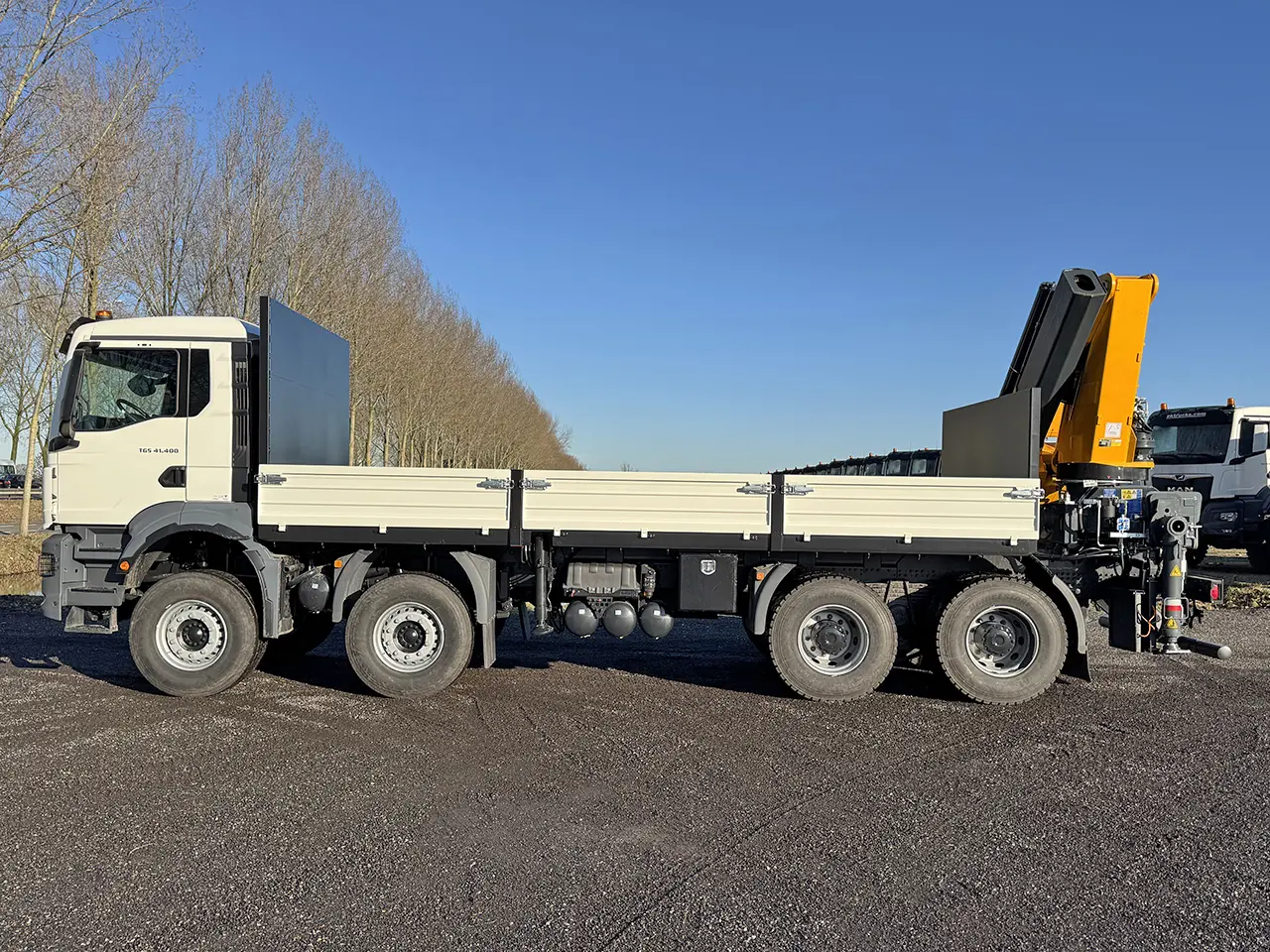

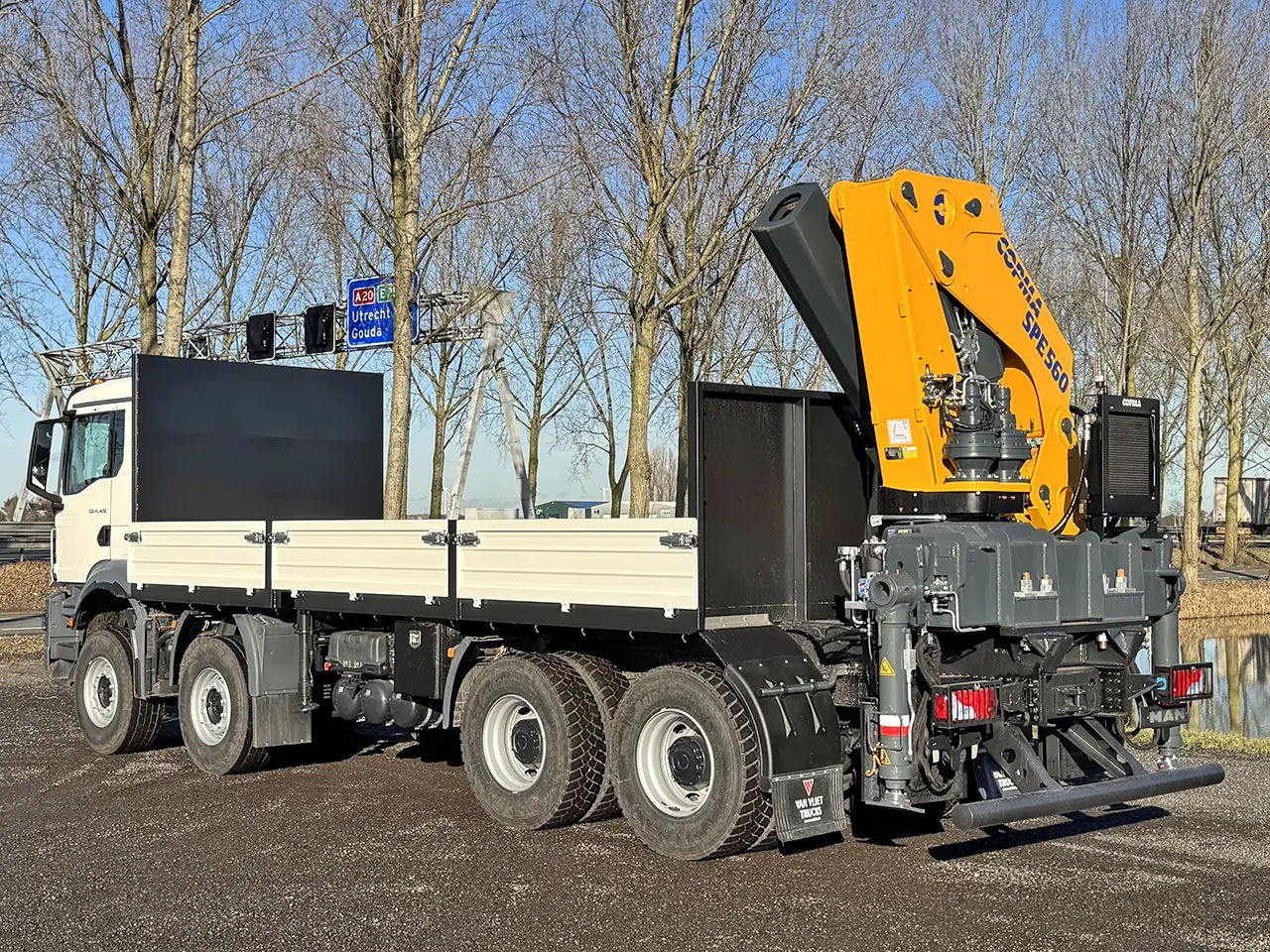

MAN TGS 41.400 BB CH 8x4 Crane Truck
8x4
400hp/294kW
EURO-2
Left hand drive
Specifications
General
- ID
- Q00179A
- Brand
- MAN
- Construction
- Crane Truck
- Construction brand
- Z.M.
- Fuel
- Diesel
Engine
- Engine type
- D2066LF06
- Engine power
- 400hp/294kW

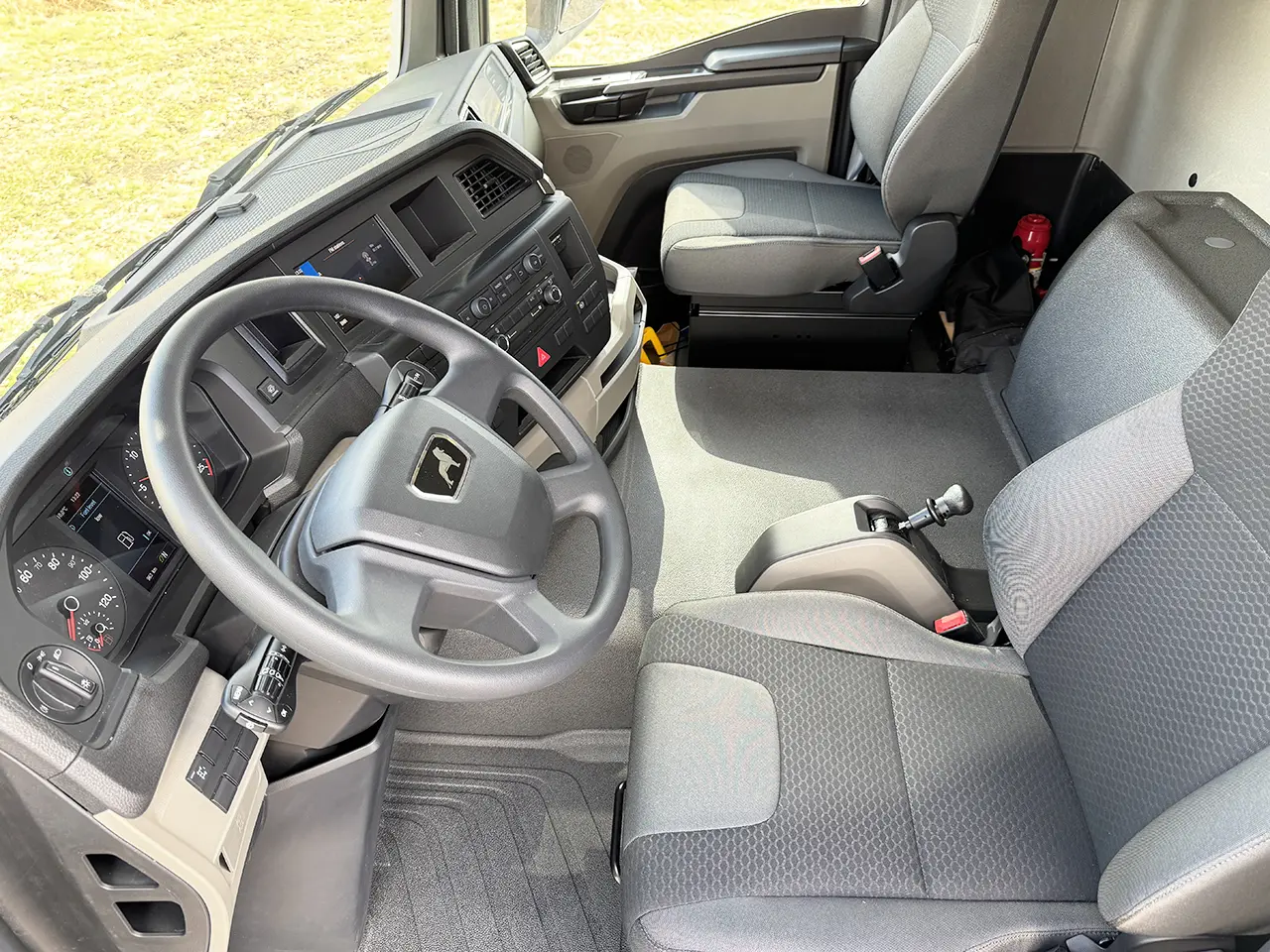

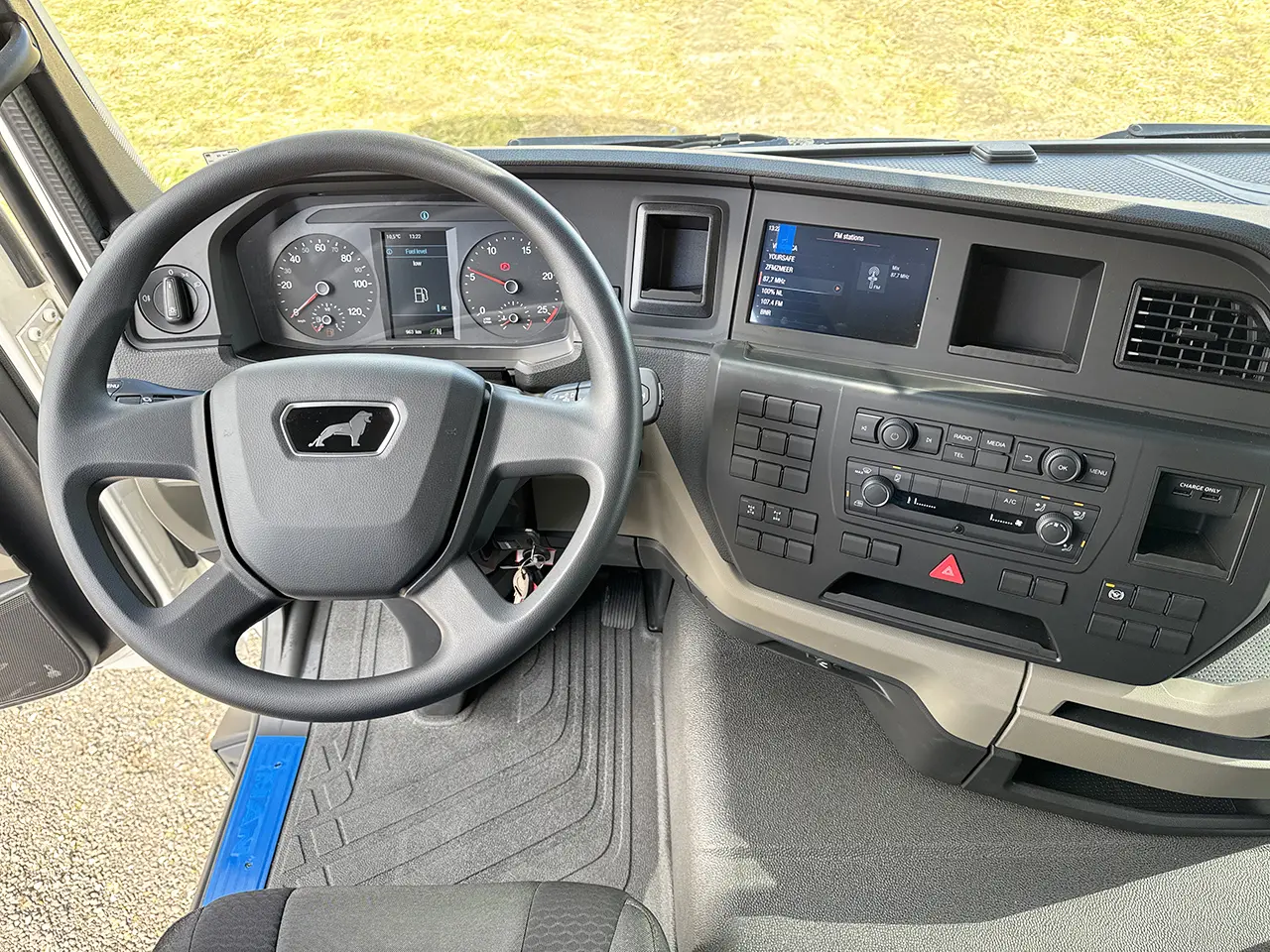

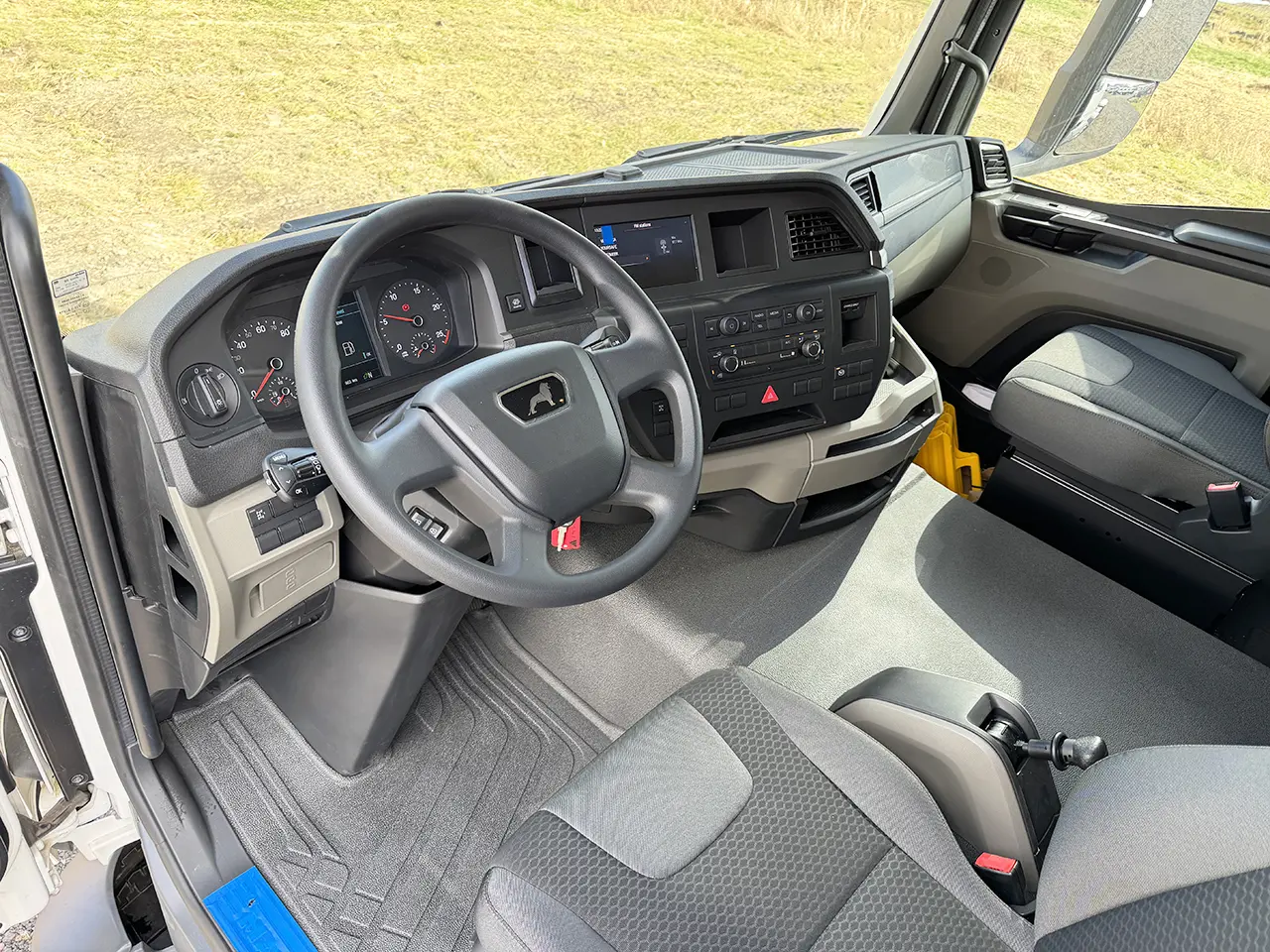

Cabin
- Cabin
- Day
- Steering
- Left hand drive
Gearbox
- Transmission
- Automatic
- Gearbox
- TipMatic 12.28 OD
Chassis
- Wheel base
- 3.600 mm
- Axle configuration
- 8x4
- Suspension
- Spring
Remarks
Fuel tank: 300 ltr.Air conditioning
Reinforced clutch

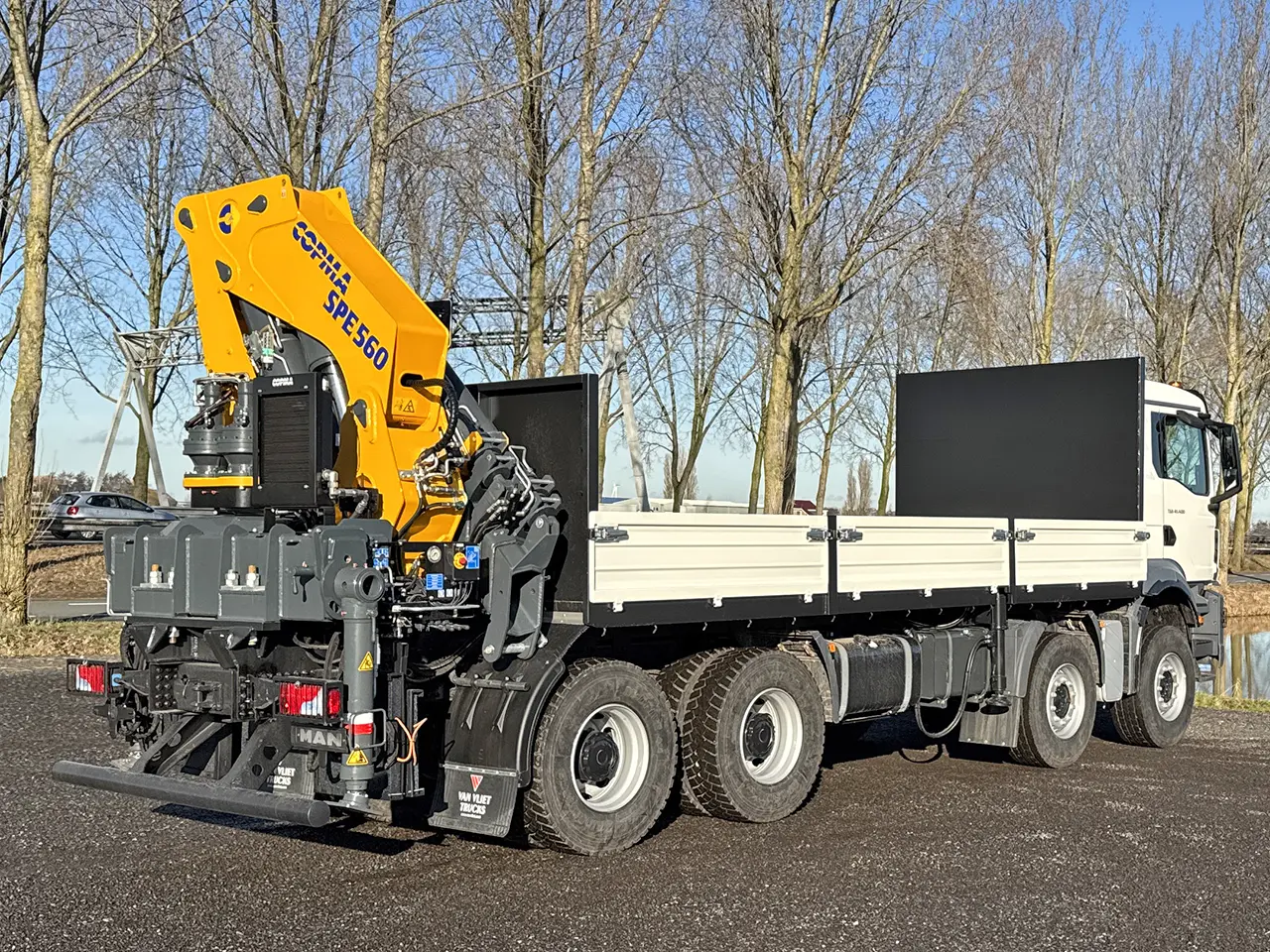

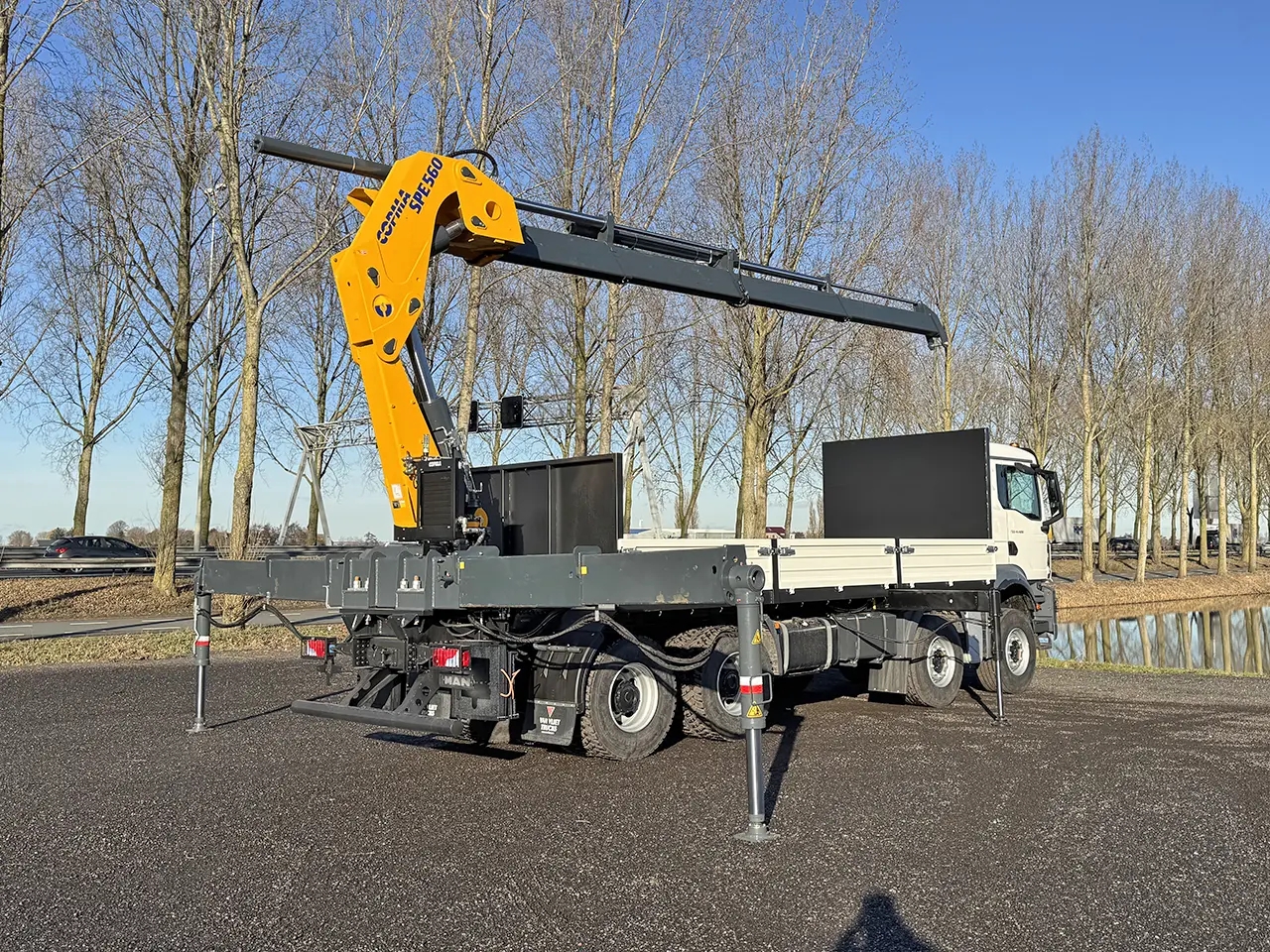

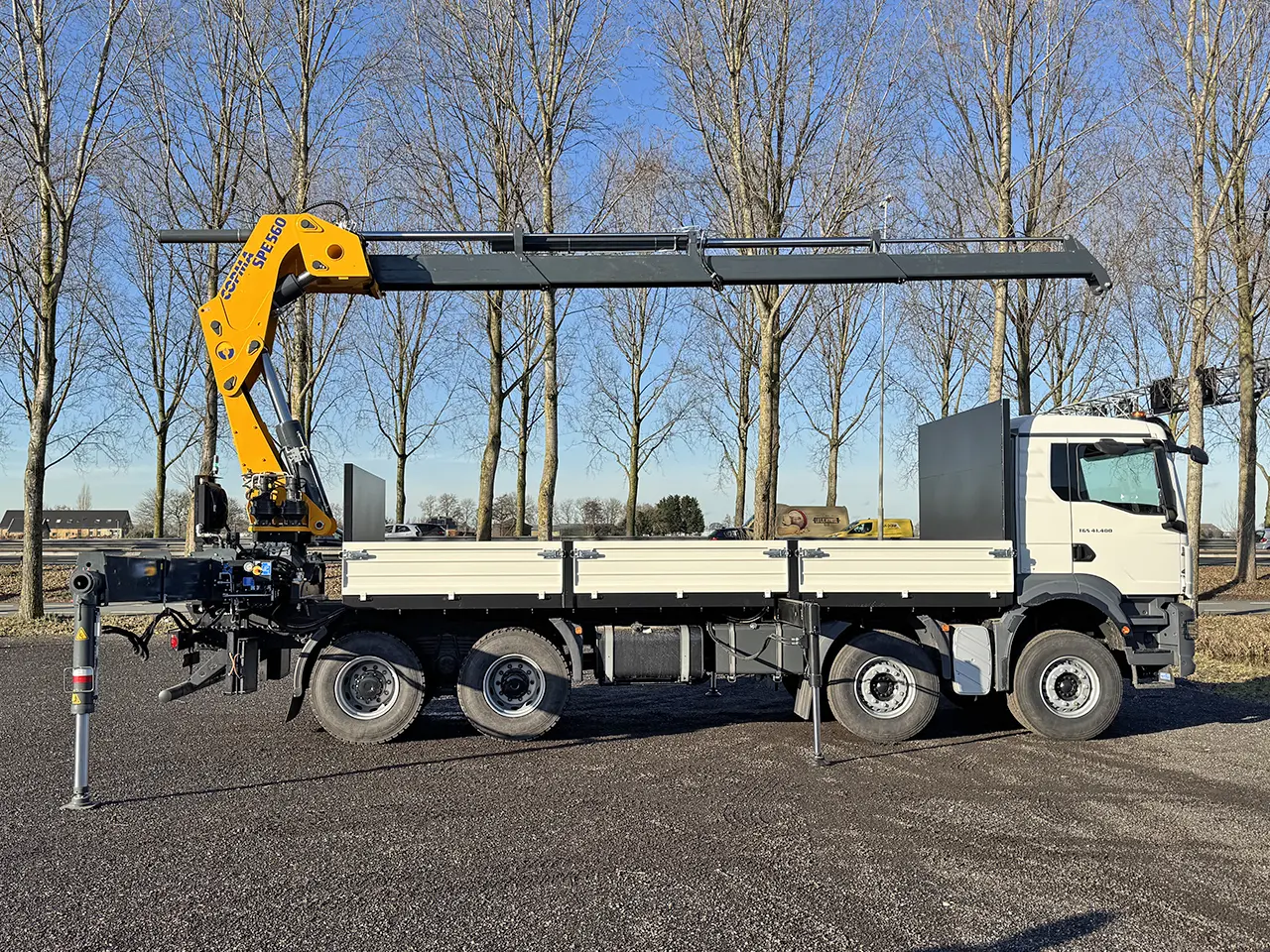

Equipped with crane and flatbed:

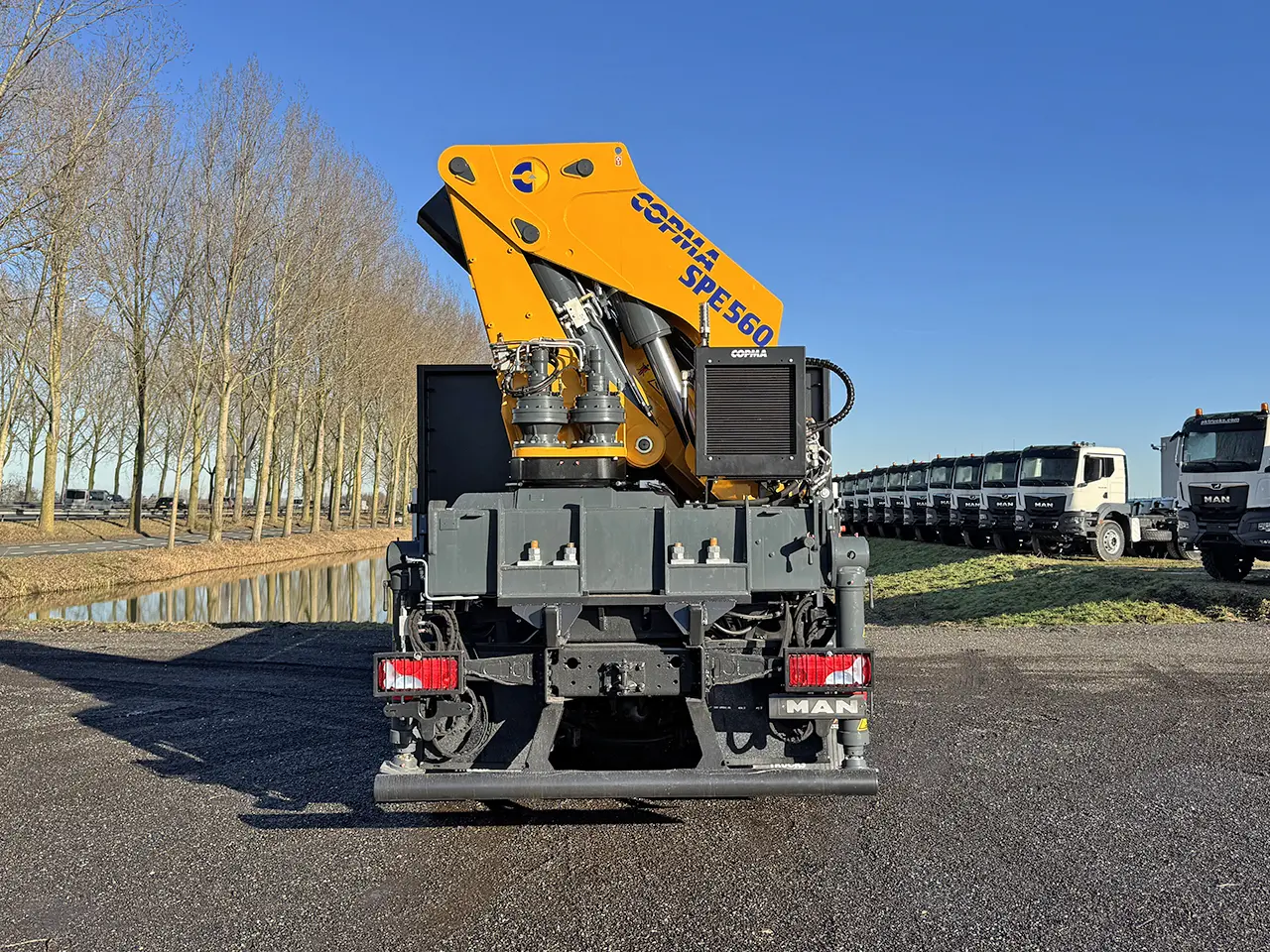

Type: Copma SPE 560
Max moment daNm: 50400

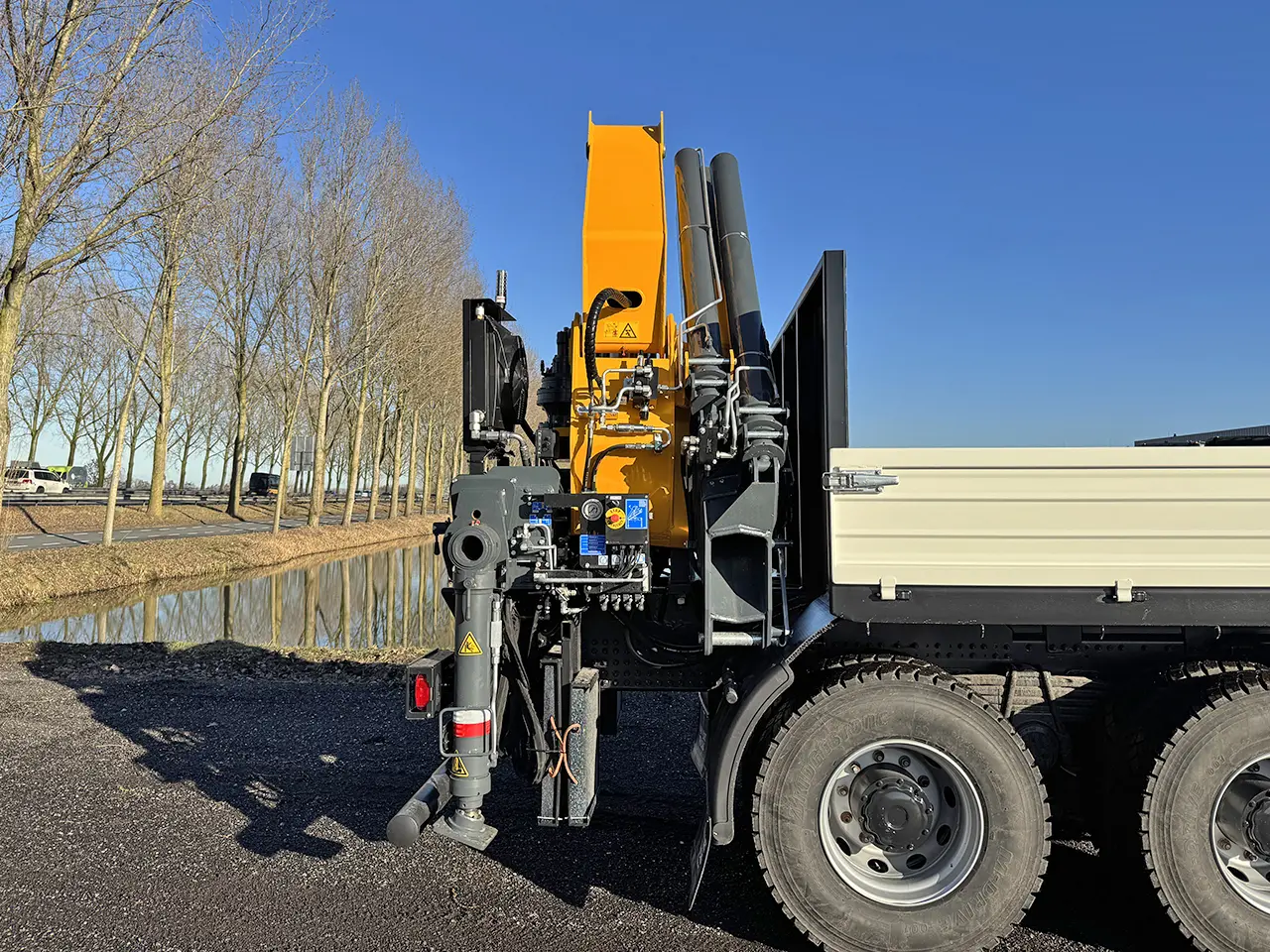

Crane base with pendulum beam

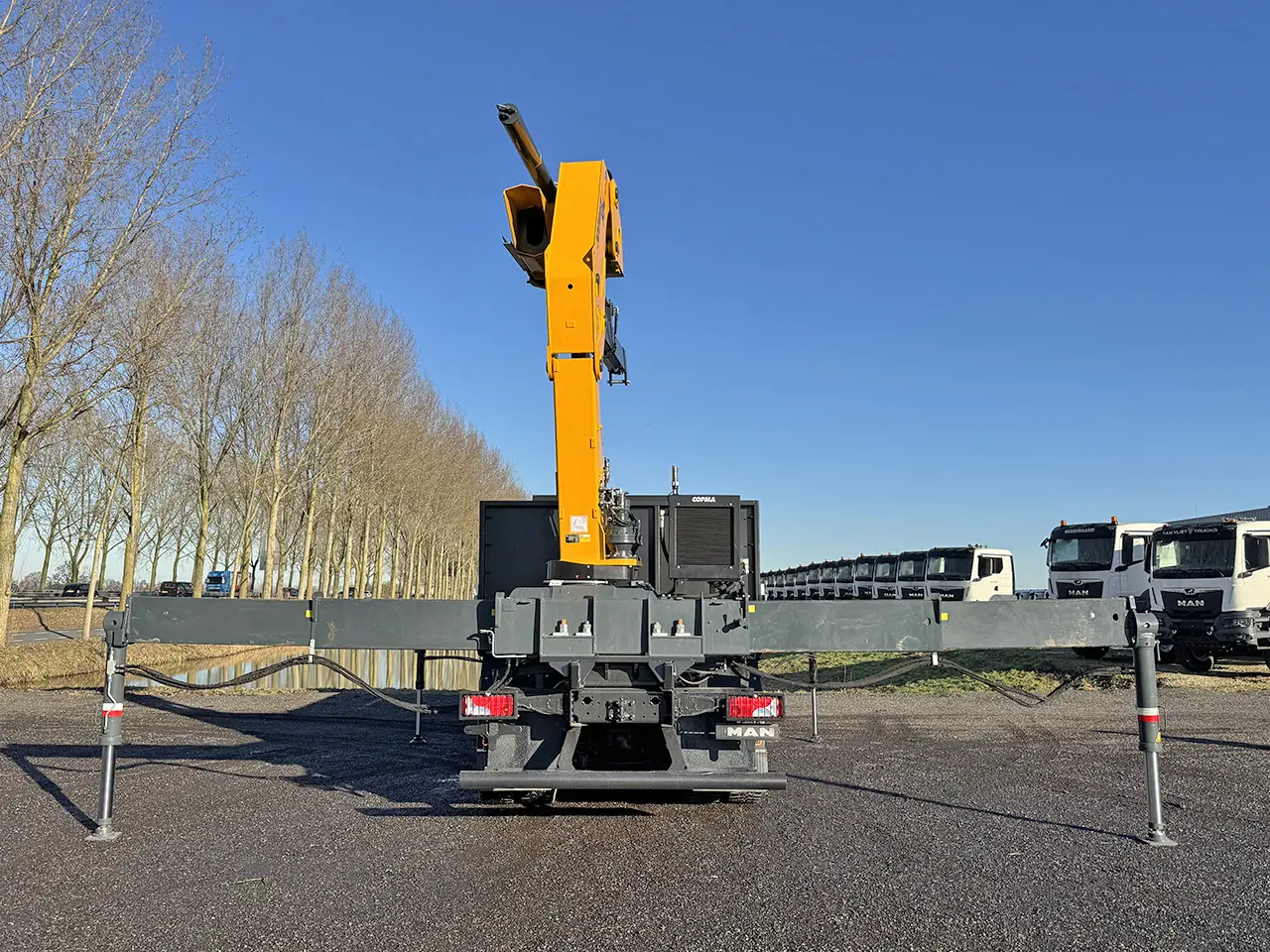

Hydraulic extendable stabilizing crossbeams
2 hydraulic swingable stabilizers
2 medium size stabilizers
Articulated stabilizing pads on std. crane
Secondary and telescopic booms in hexagonal section
Fully hydraulic load limiting device
Slewing system with motor, pinion and ring gear
Oil cooler

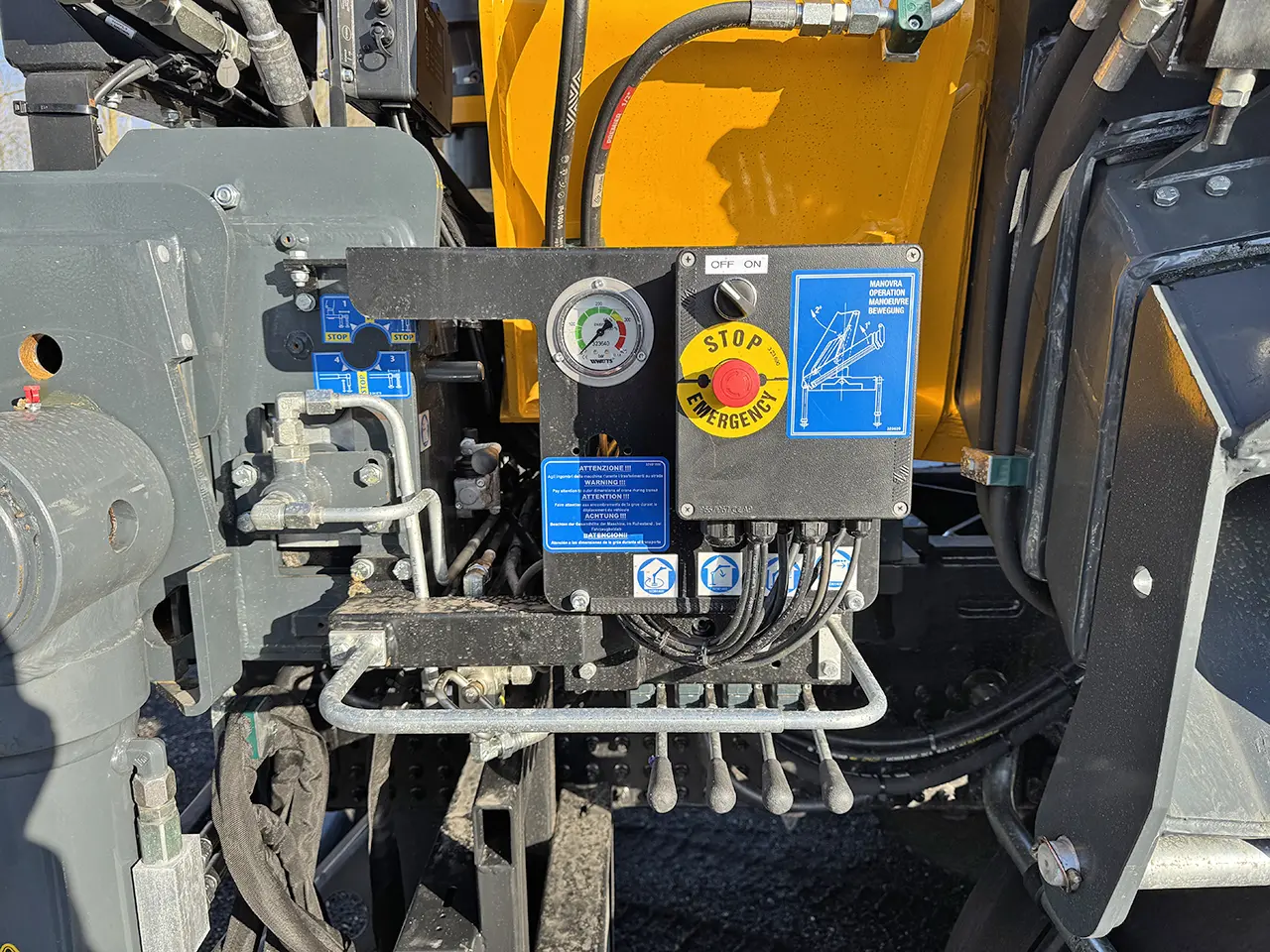

Dual controls
Swivel hook for std. crane
Radio remote control Scanreco

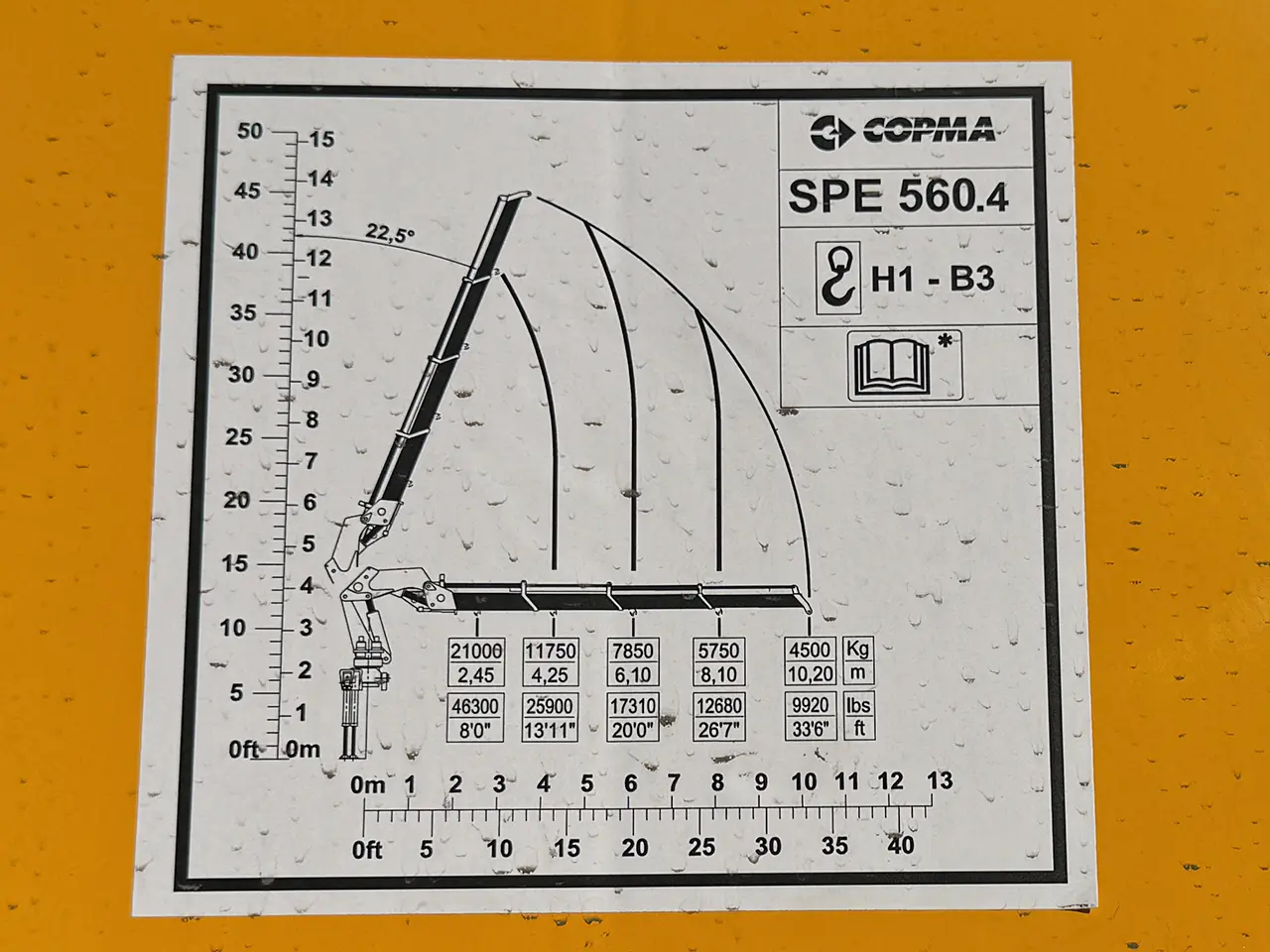

Lifting capacity:
21.000 kg / 2.45 m
11.750 kg / 4.25 m
7.850 kg / 6.10 m
5.750 kg / 8.10 m
4.500 kg / 10.20 m

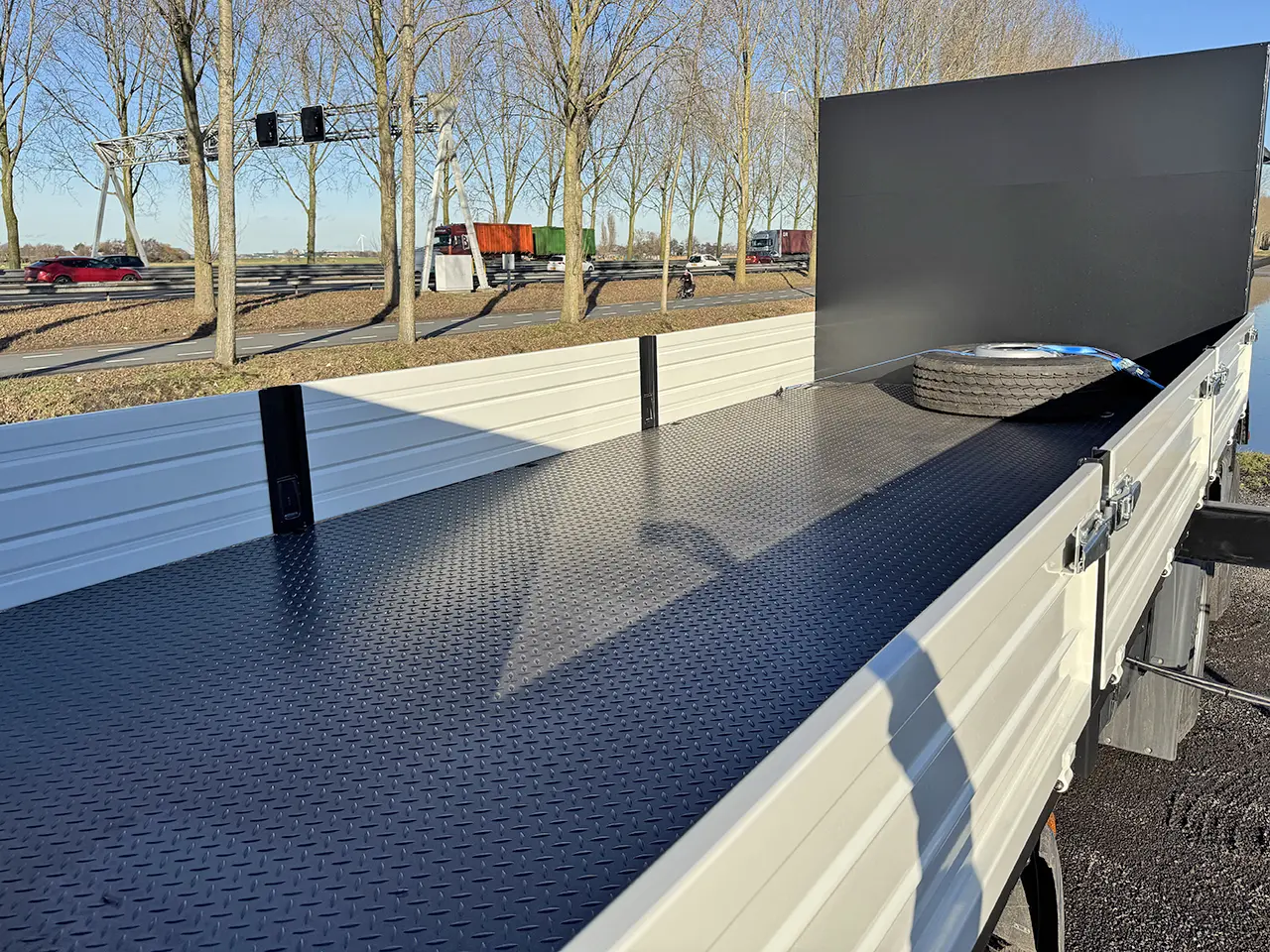

Open flatbed body, with foldable sideboards
Complete specification in PDF.
