Sold

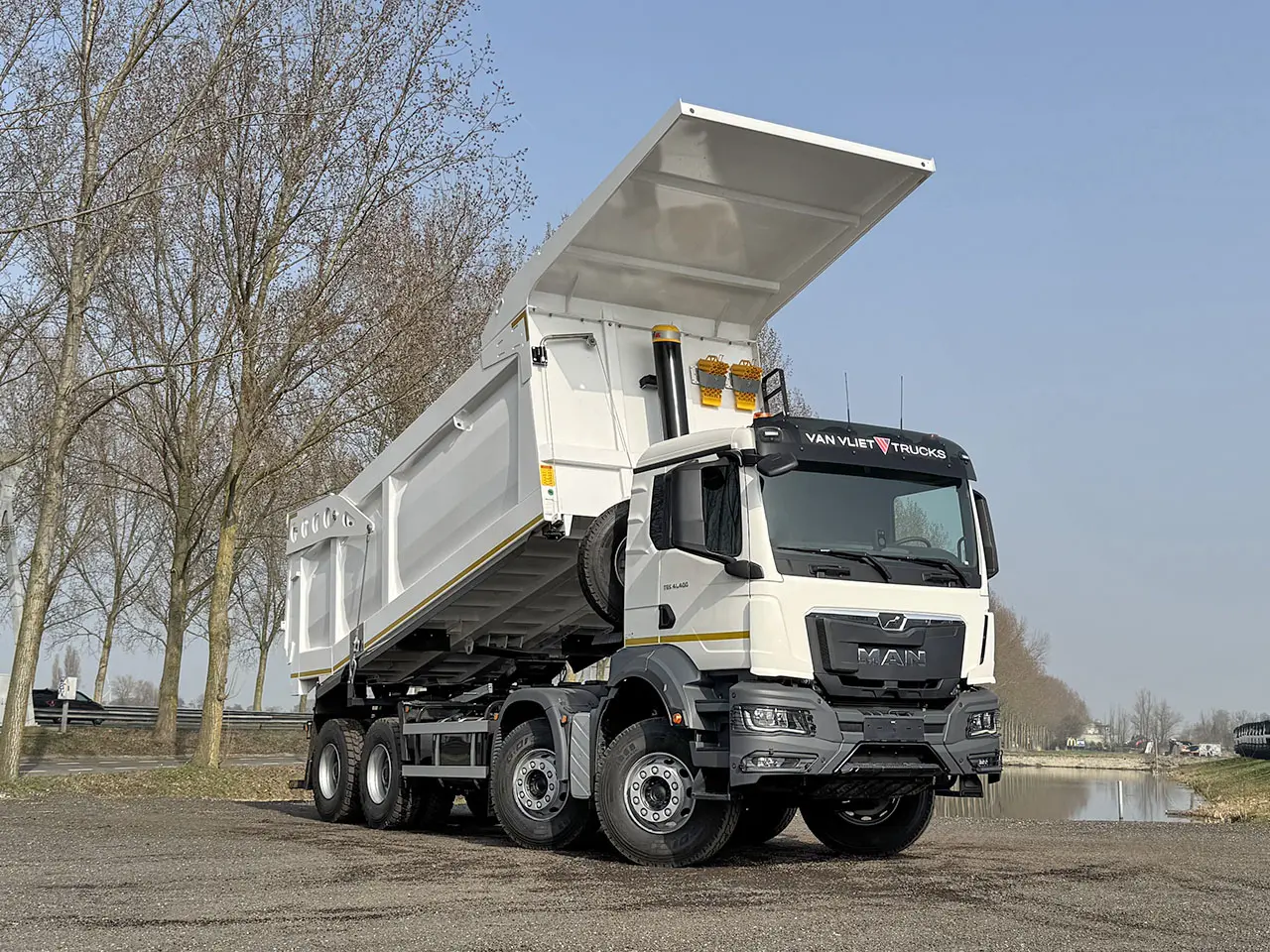

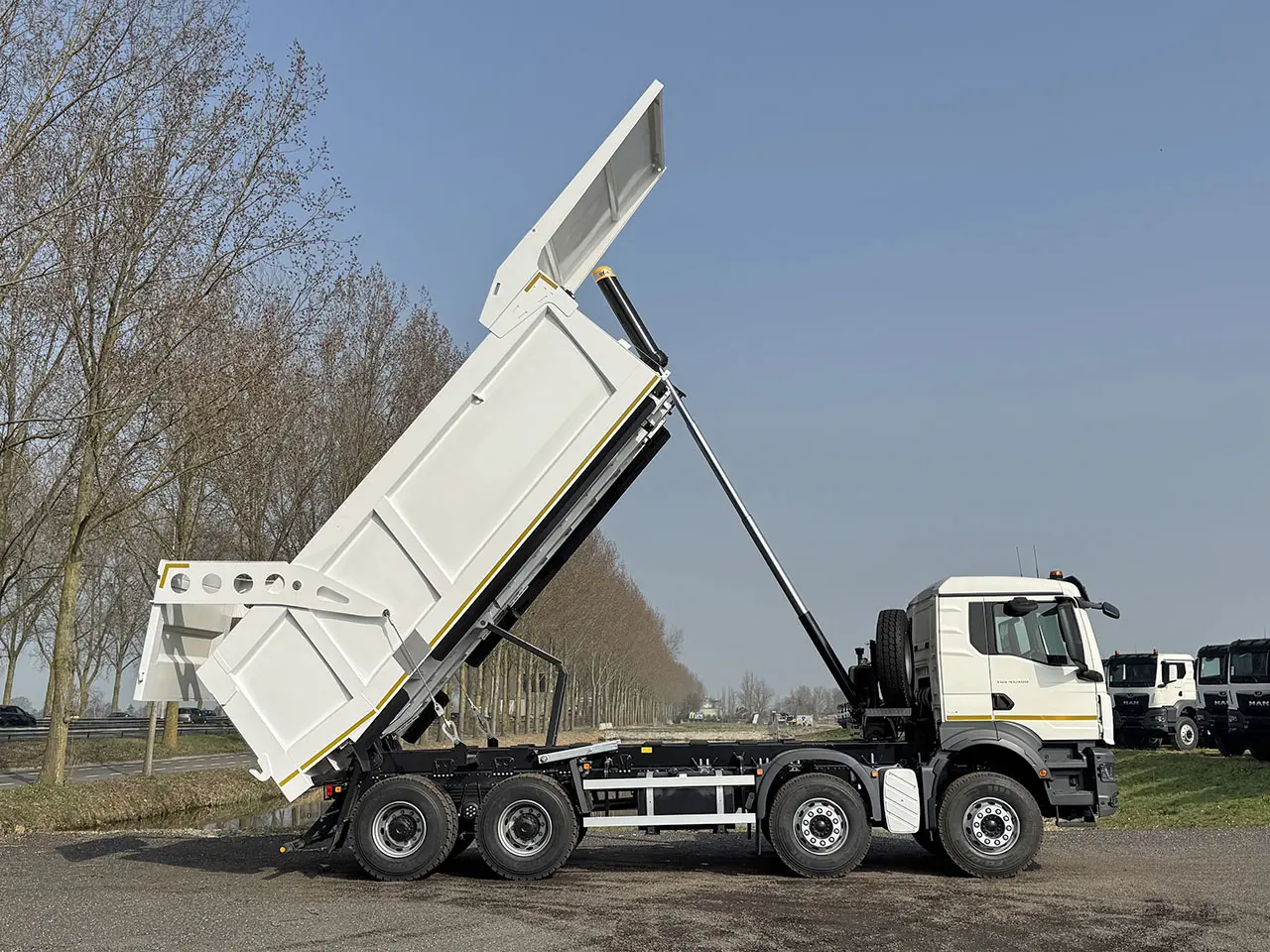

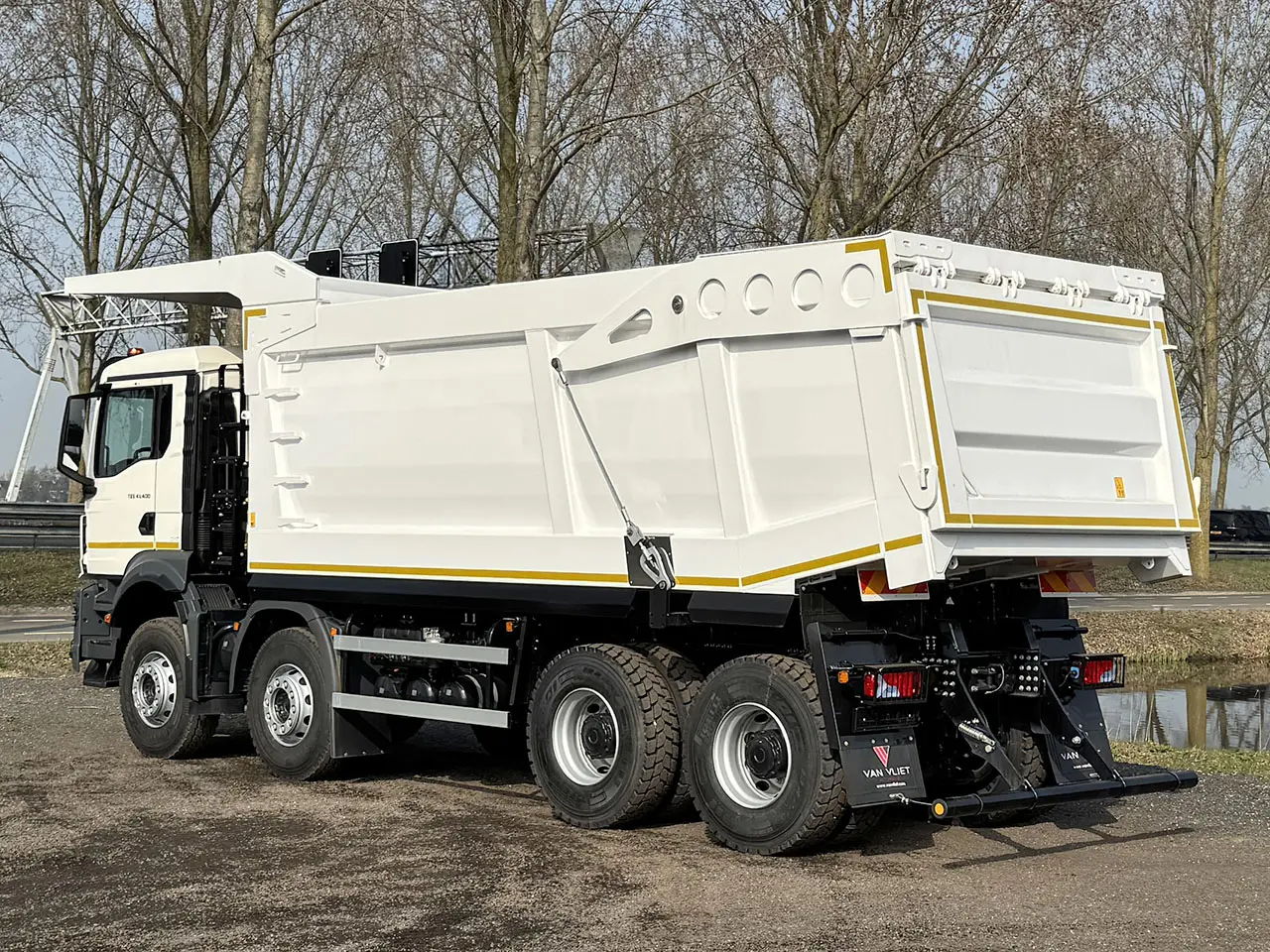

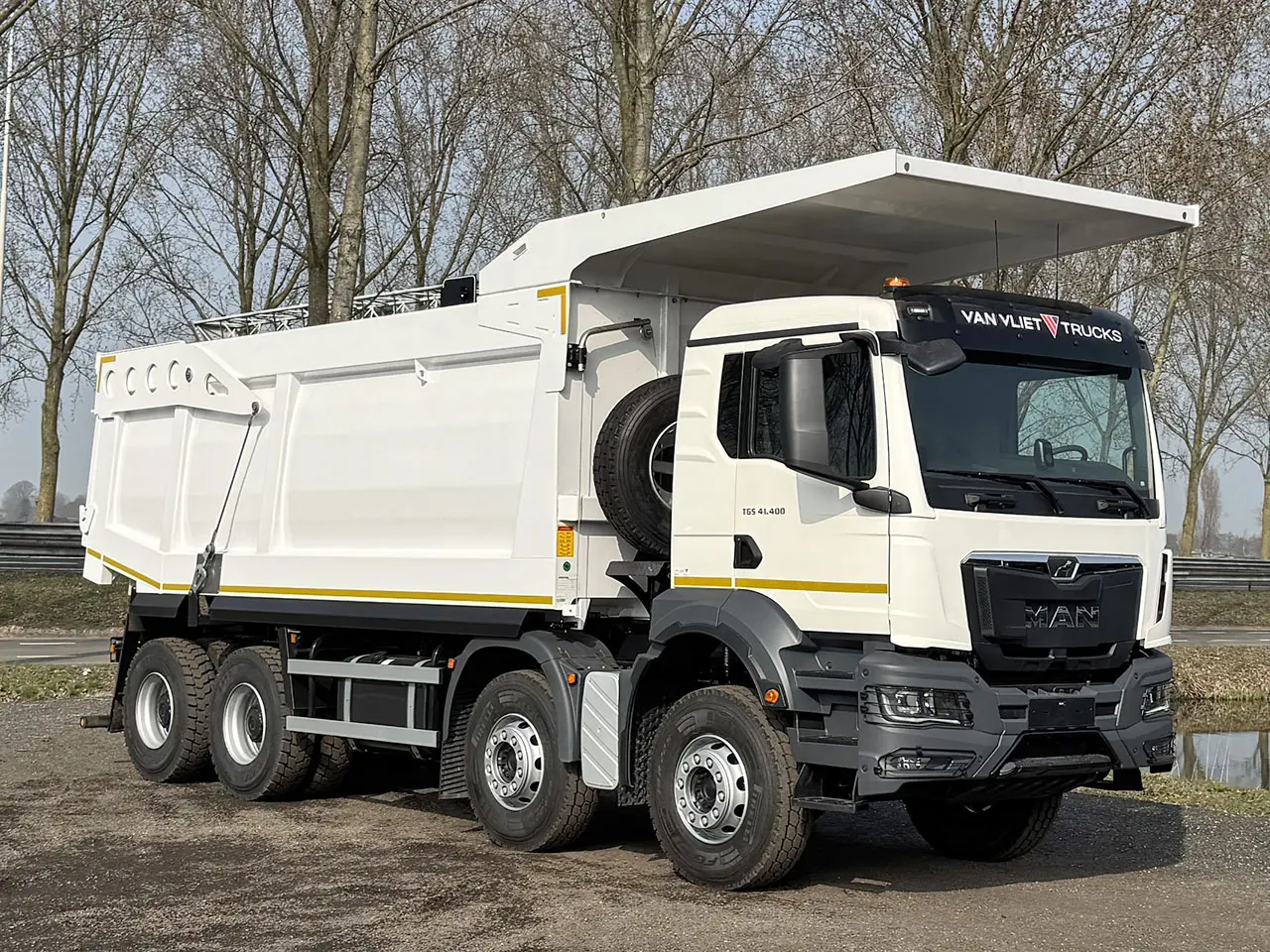

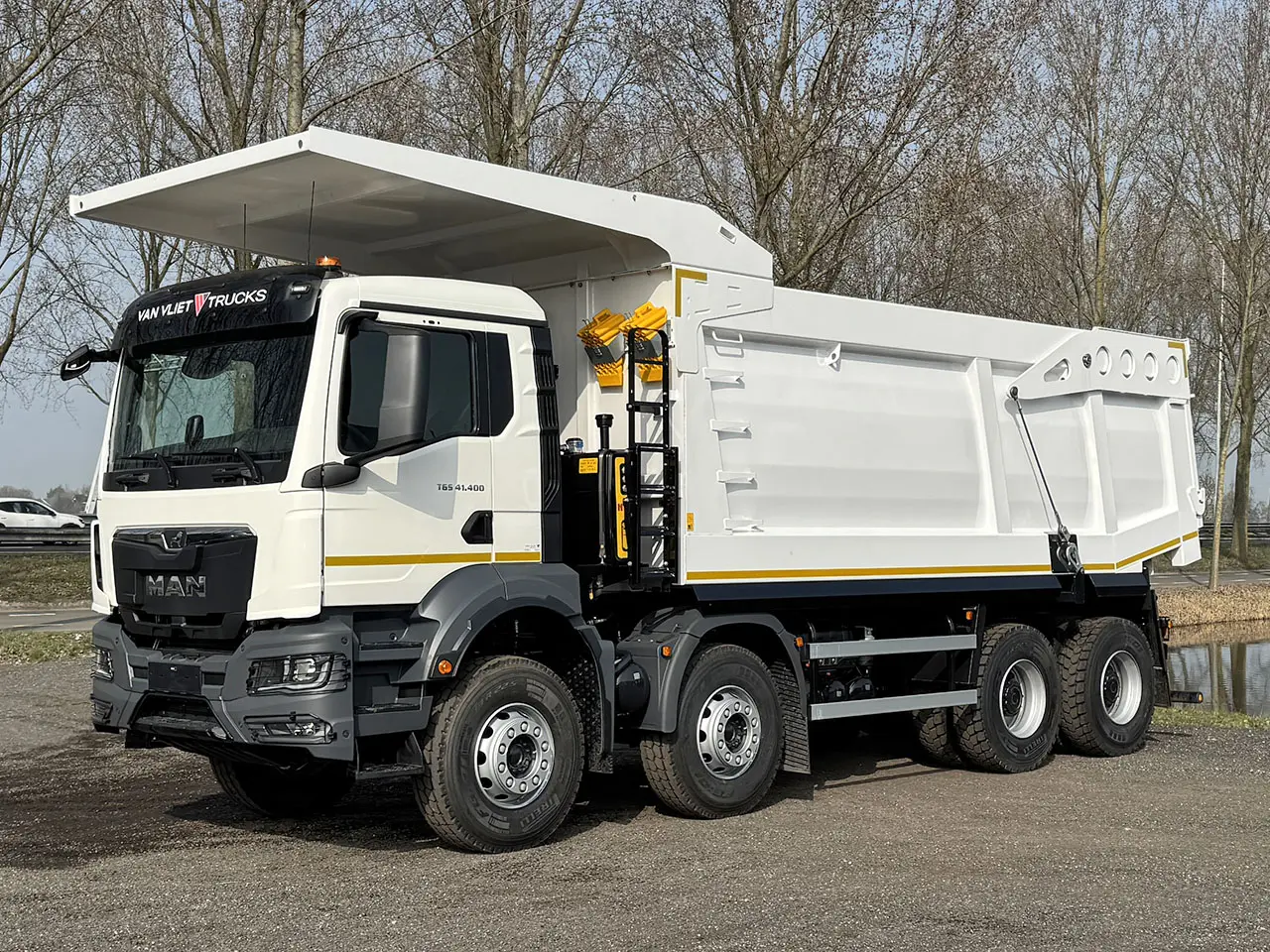

MAN TGS 41.400 BB CH 8x4 Tipper Truck
8x4
400hp/294kW
EURO-2
Left hand drive
Specifications
General
- ID
- Q00709
- Brand
- MAN
- Construction
- Tipper Truck
- Construction brand
- Wielton
- Construction volume
- 23 Cbm.
- Fuel
- Diesel
Engine
- Engine type
- D2066 LF06
- Engine power
- 400hp/294kW

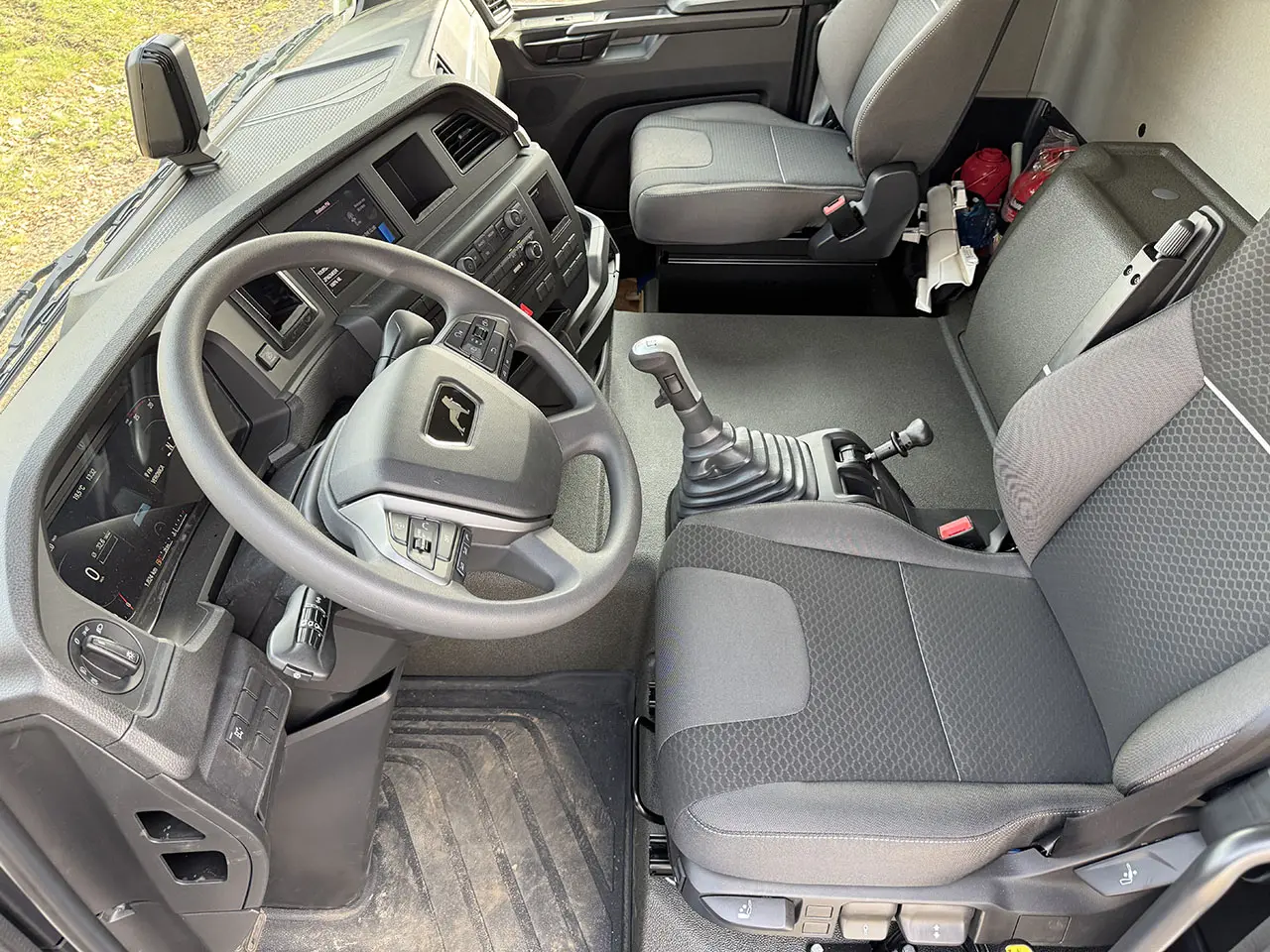

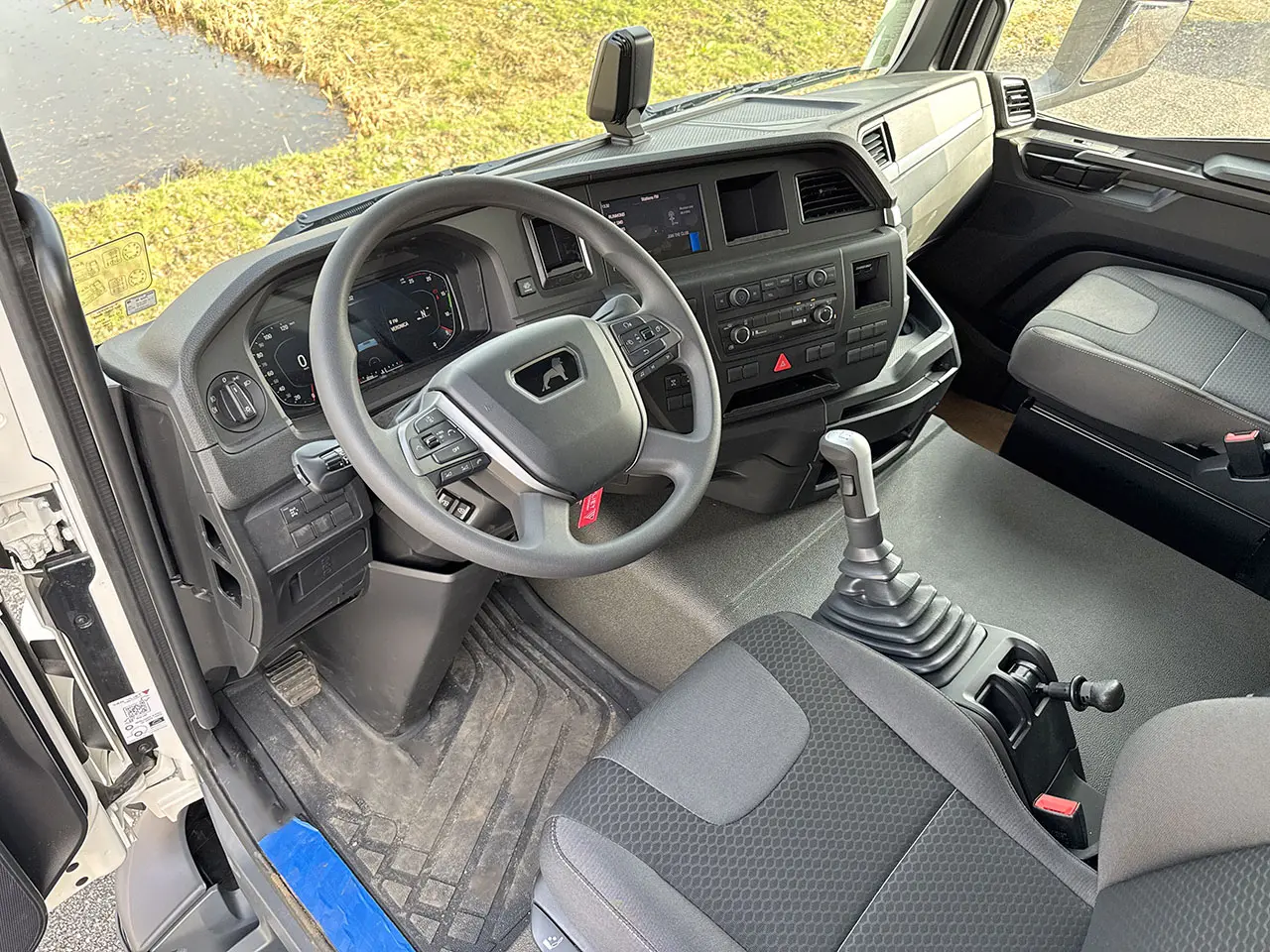

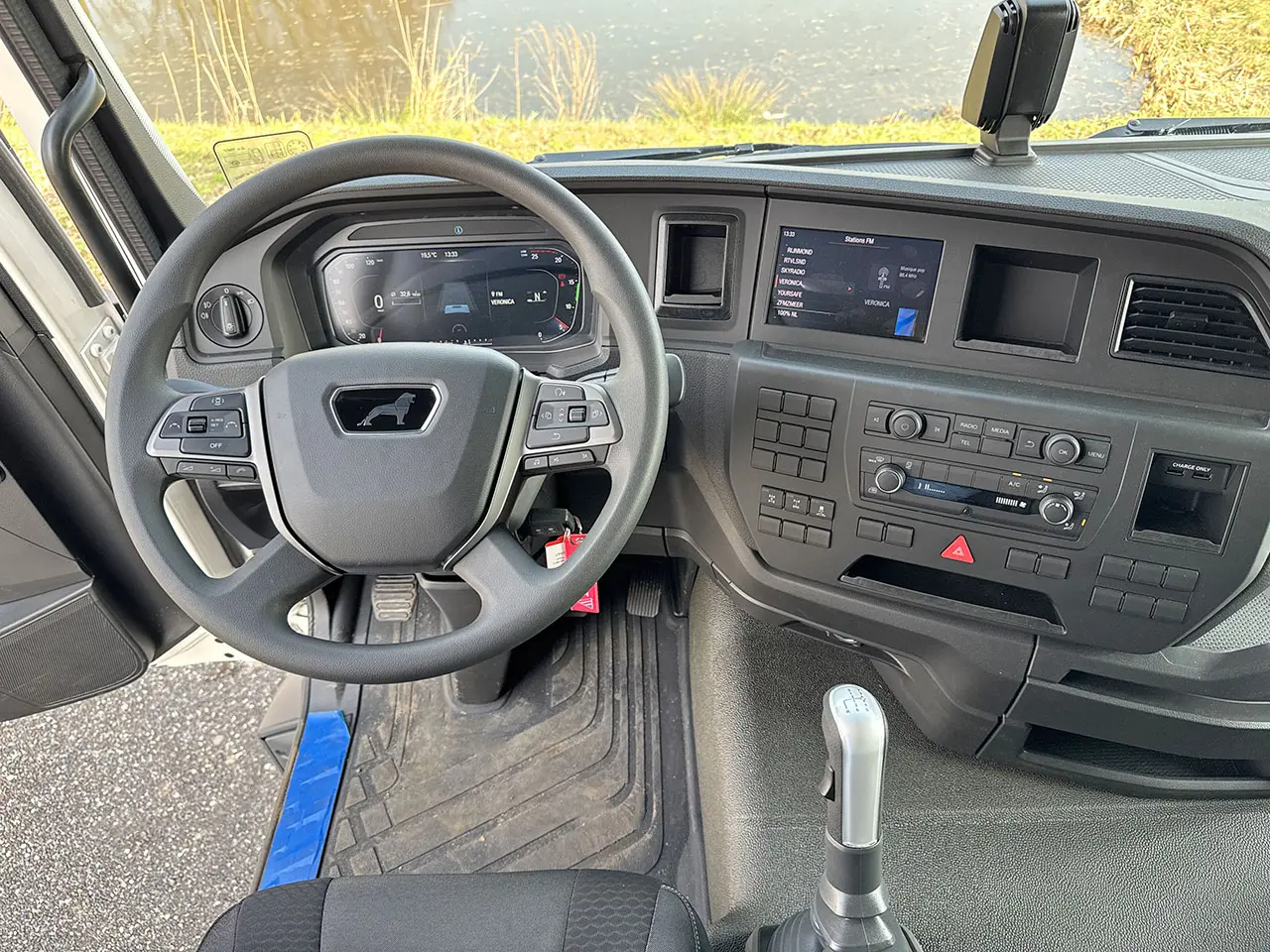

Cabin
- Cabin
- Day
- Steering
- Left hand drive

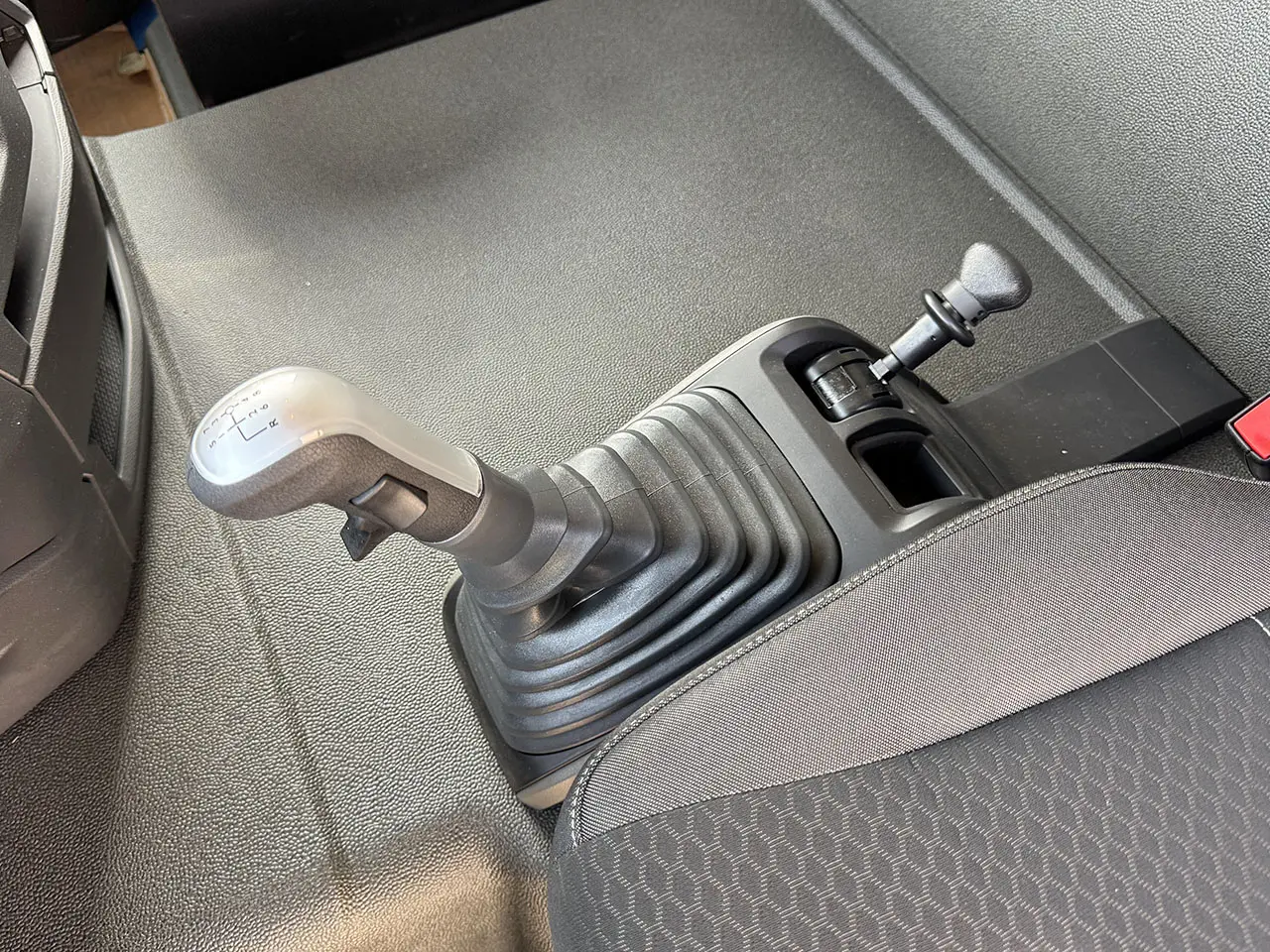

Gearbox
- Transmission
- Manual
- Gearbox
- 16.25 OD
Chassis
- Wheel base
- 3.205 mm
- Axle configuration
- 8x4
- Suspension
- Spring
Axles
Axle 1
- Steering
- Yes
- Tires
- Single
- Brakes
- Disc
- Suspension
- Spring
- Driven
- No
- Tire size
- 315/80R22.5
Axle 2
- Steering
- Yes
- Tires
- Single
- Brakes
- Disc
- Suspension
- Spring
- Driven
- No
- Tire size
- 315/80R22.5
Axle 3
- Steering
- No
- Tires
- Double
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes

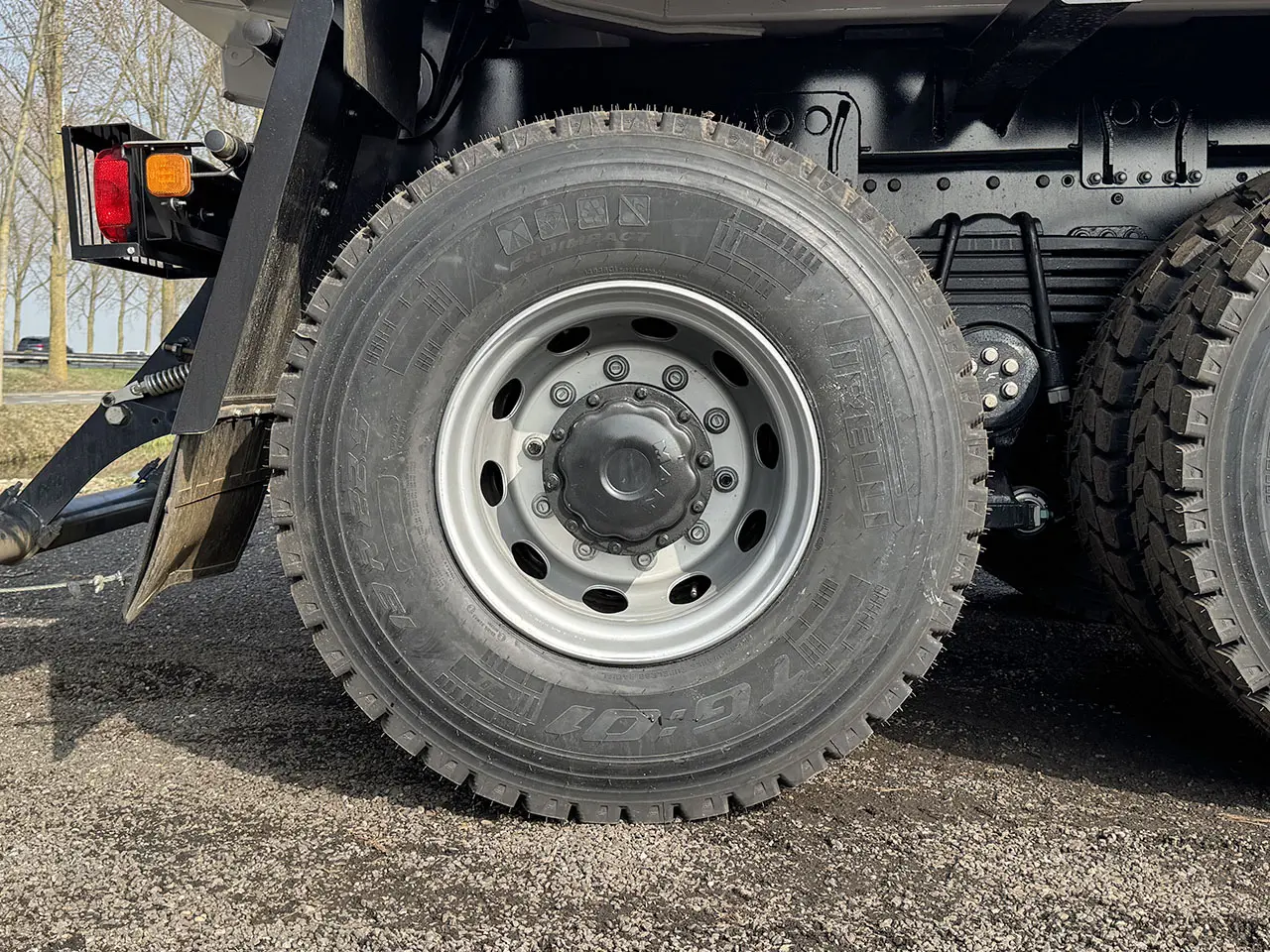

- Tire size
- 315/80R22.5
Axle 4
- Steering
- No
- Tires
- Double
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes
- Tire size
- 315/80R22.5
Remarks
Fuel tank: 400 ltr.Air conditioning

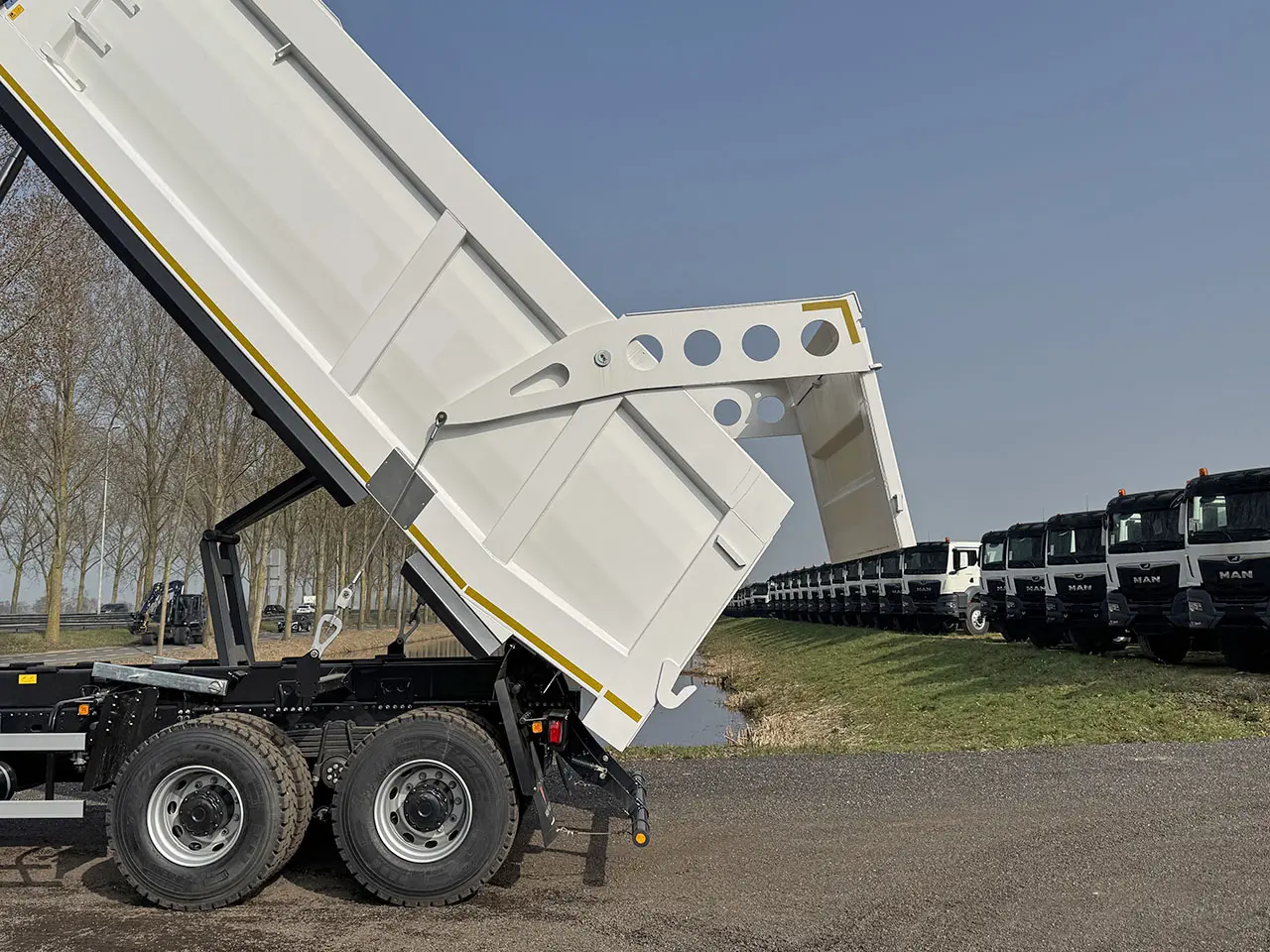

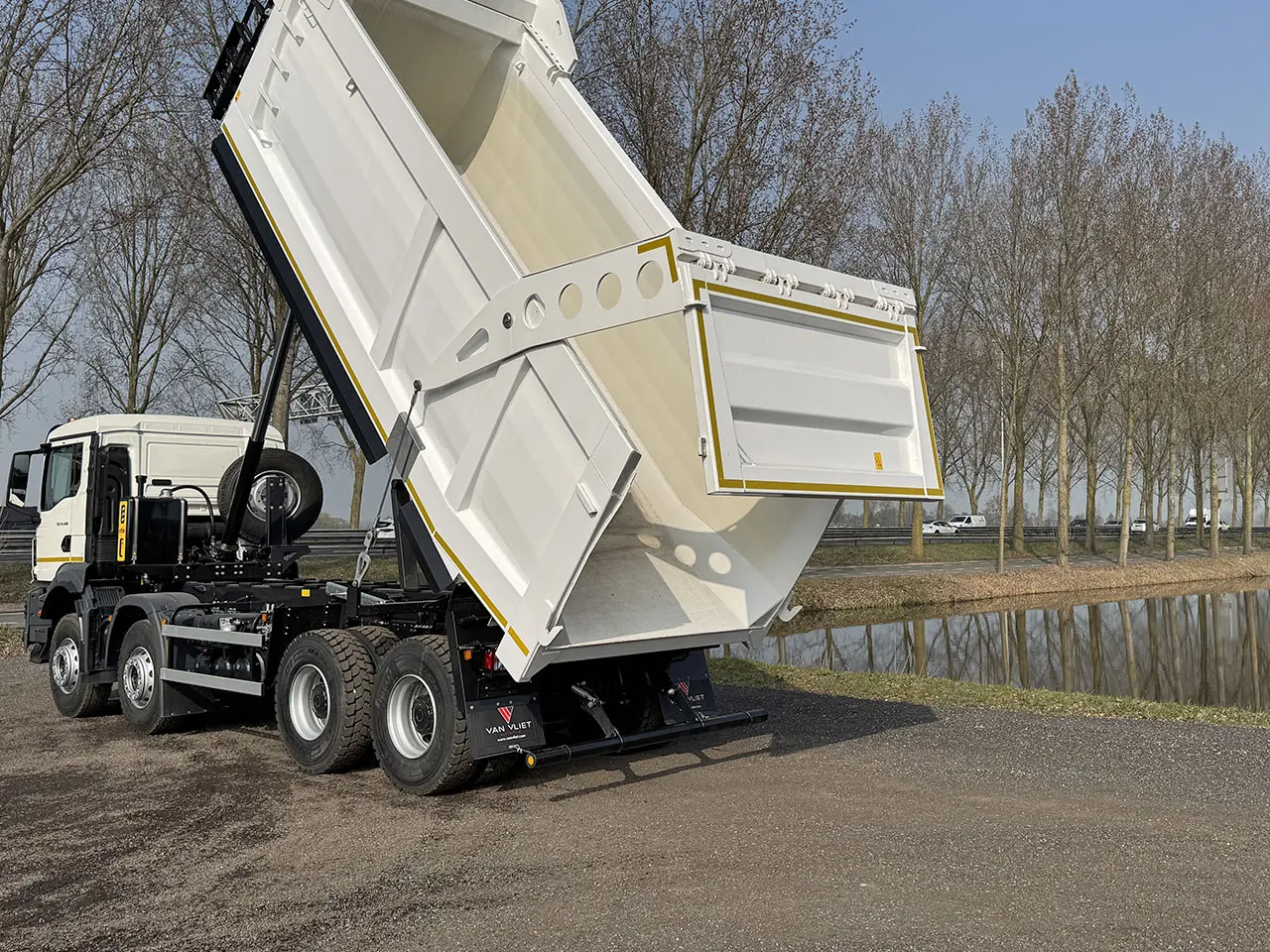

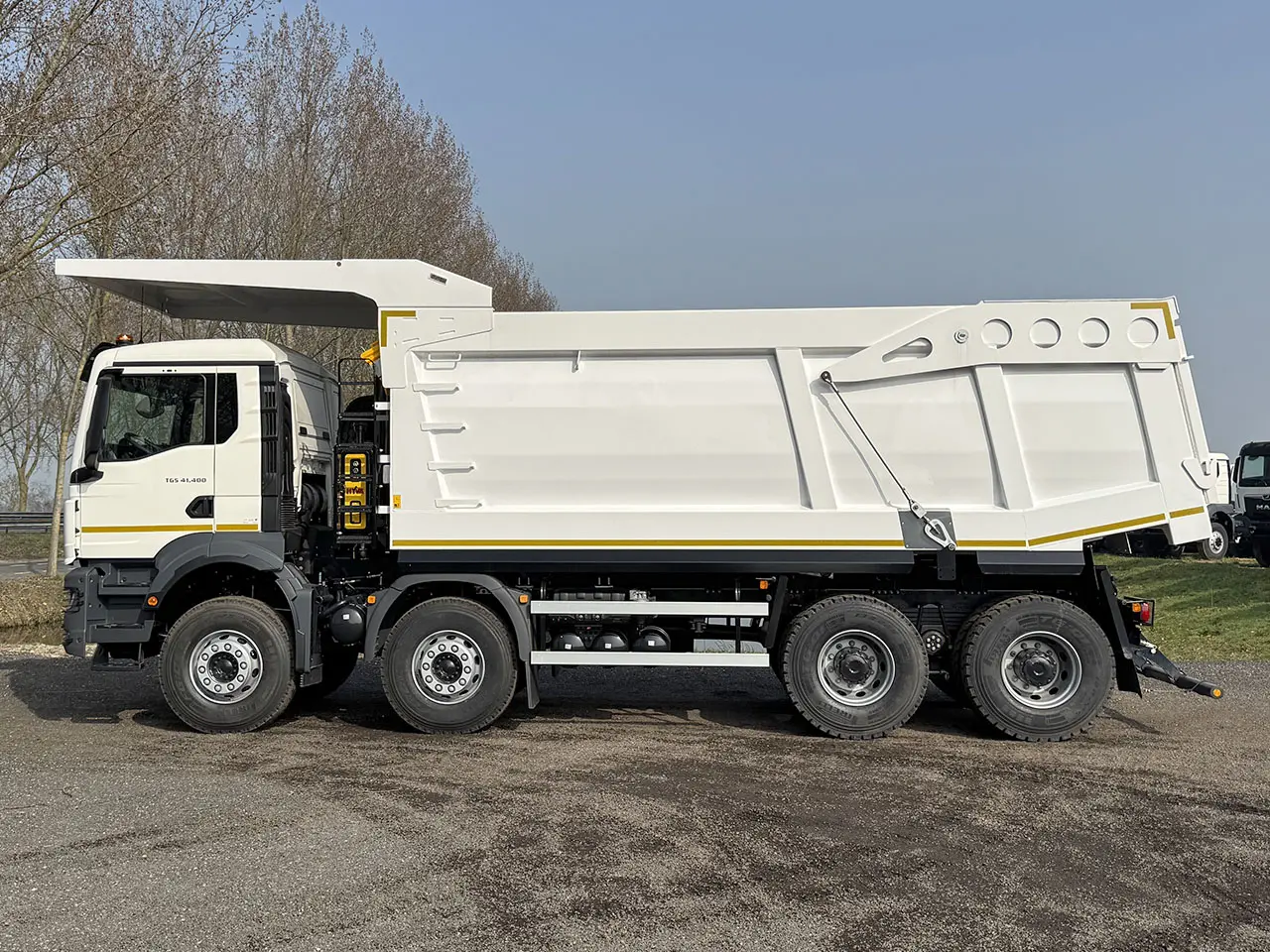

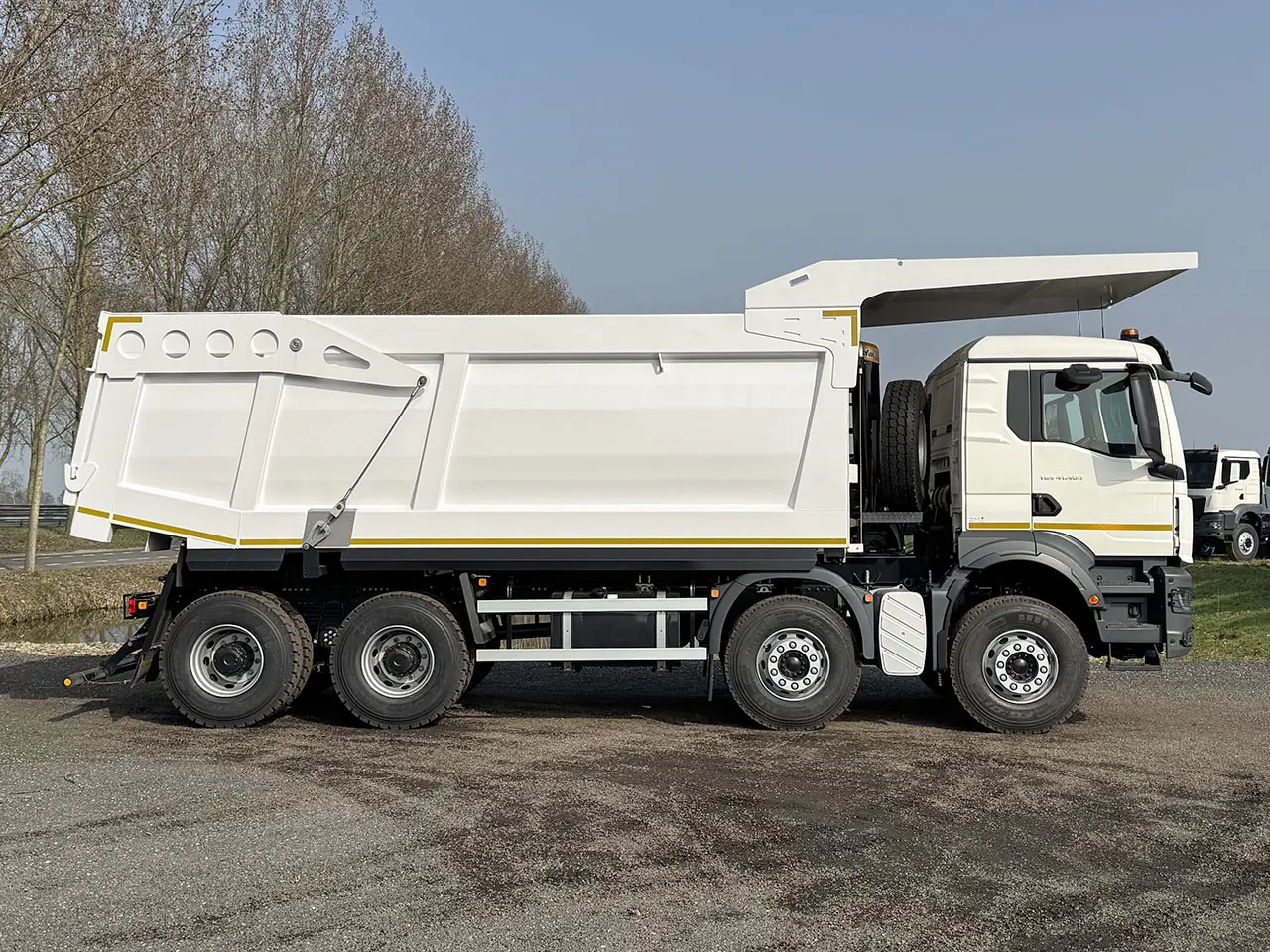

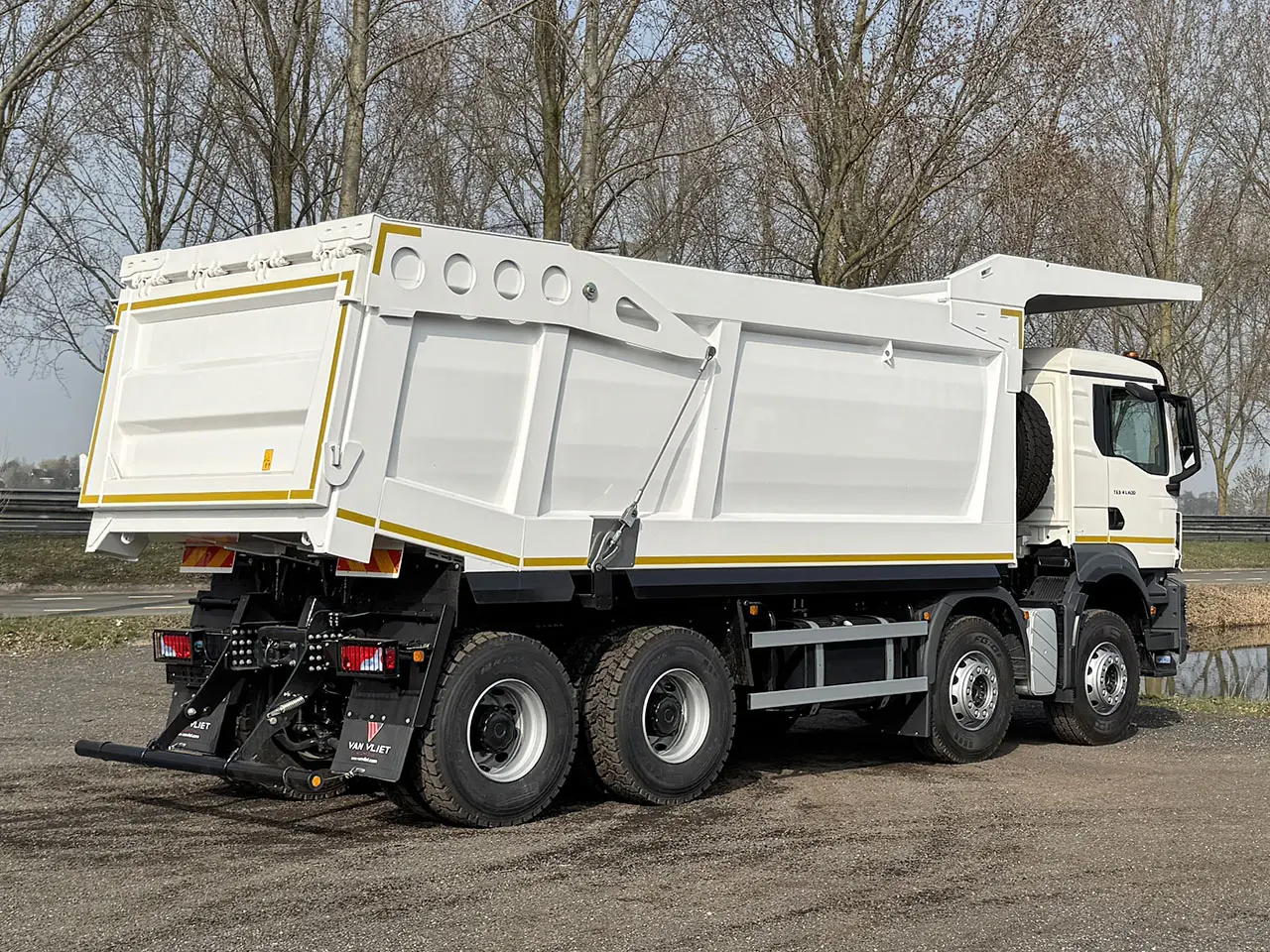

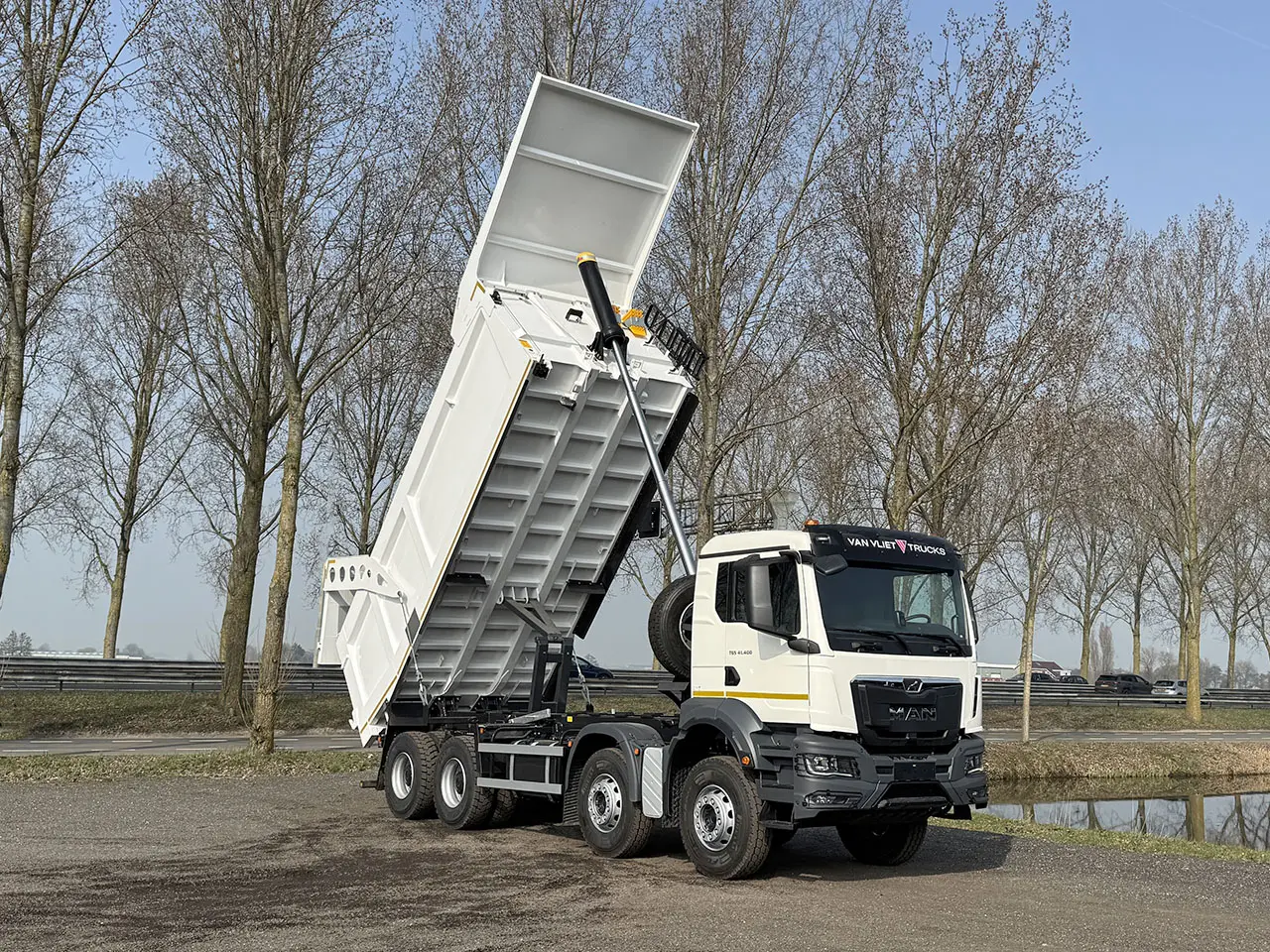

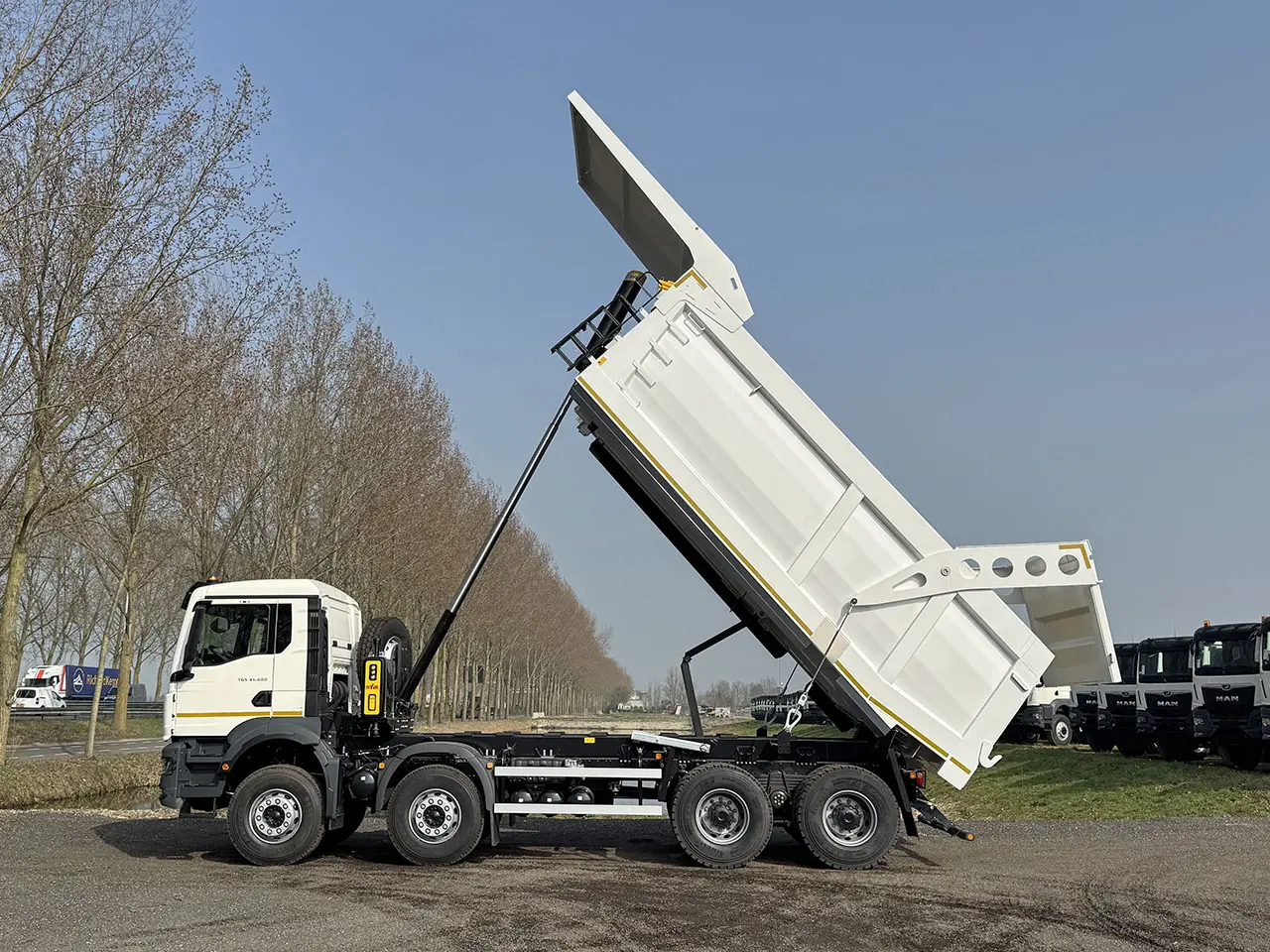

Equipped with 23 cbm. Wielton rear tipper:
Type: SEM23M3
Front vertical wall with roof over the cabin

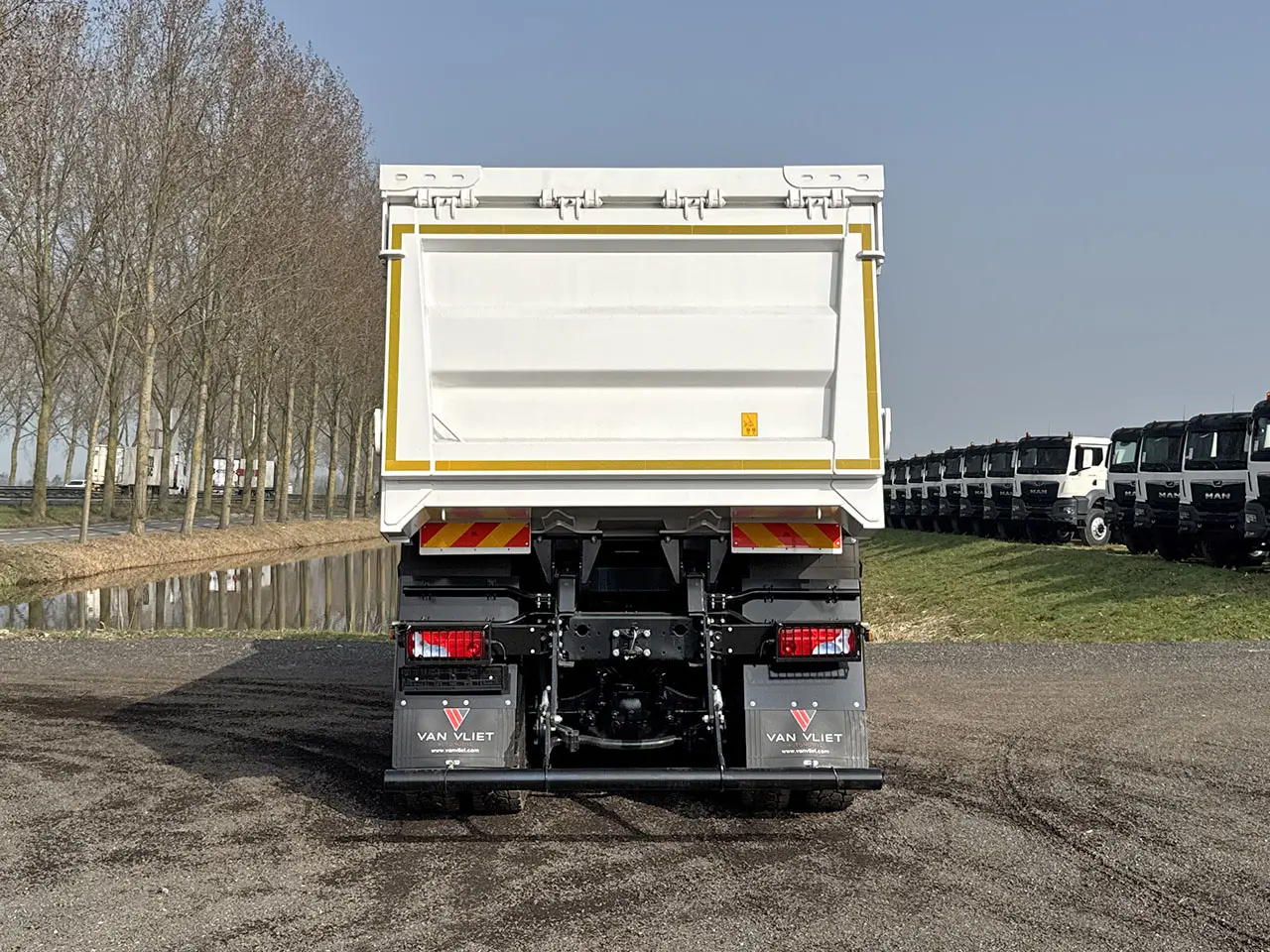

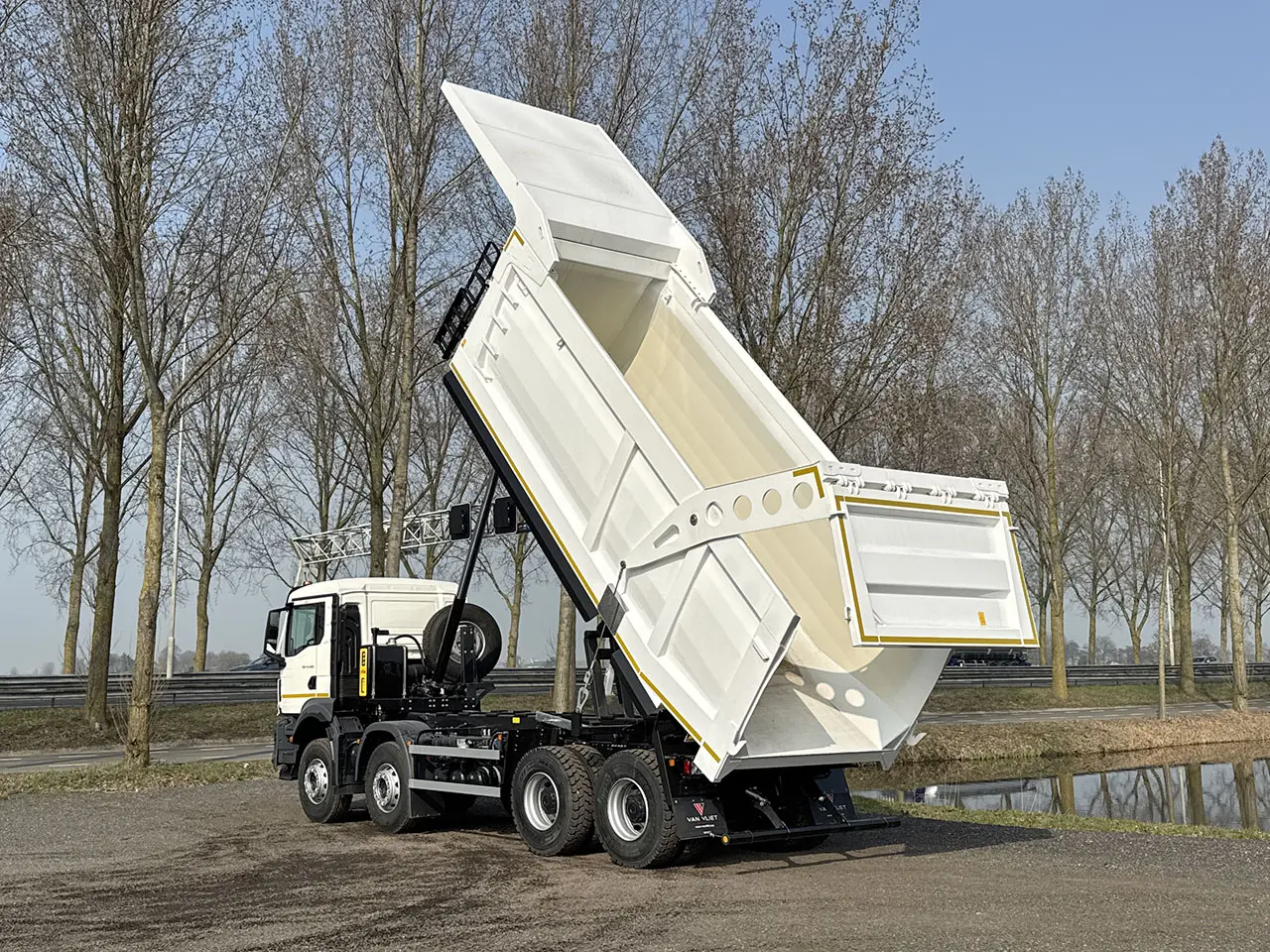

Tailgate opened mechanically using steel cables
Walls - #8 Hardox HB450
Floor - #10 Hardox HB450
Side walls reinforced with bend

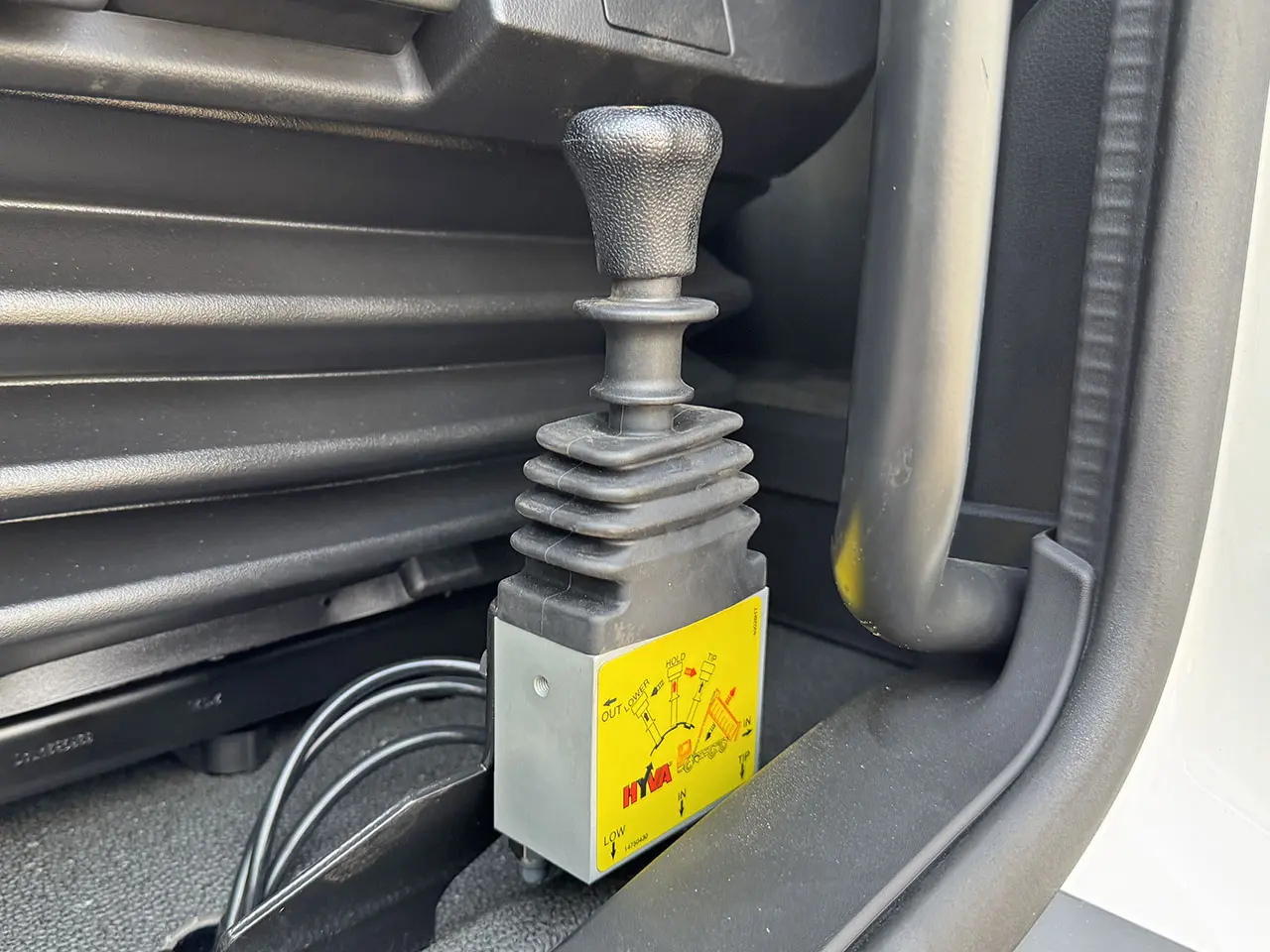

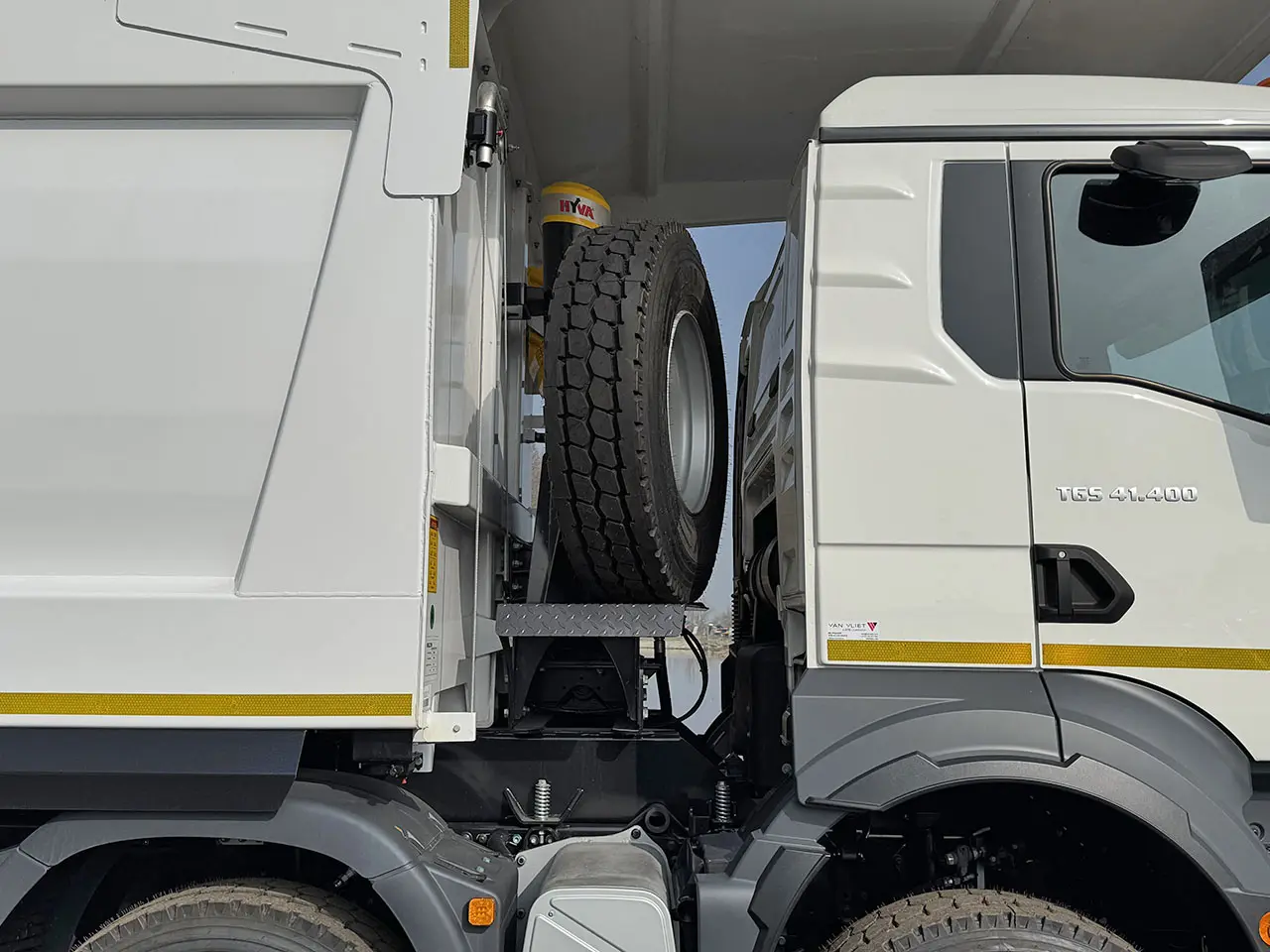

HYVA hydraulic cylinder- high pressure
Complete specification in PDF.
