In stock (1)

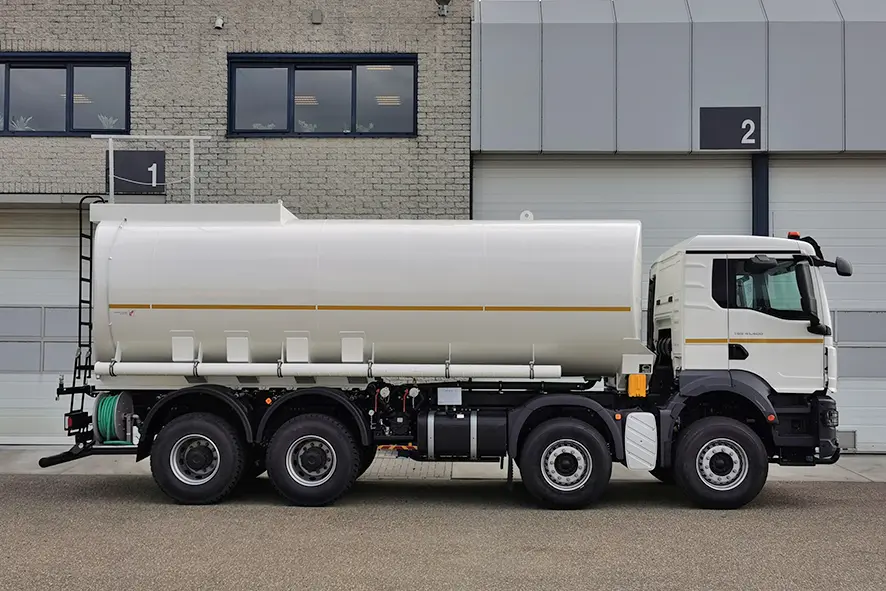

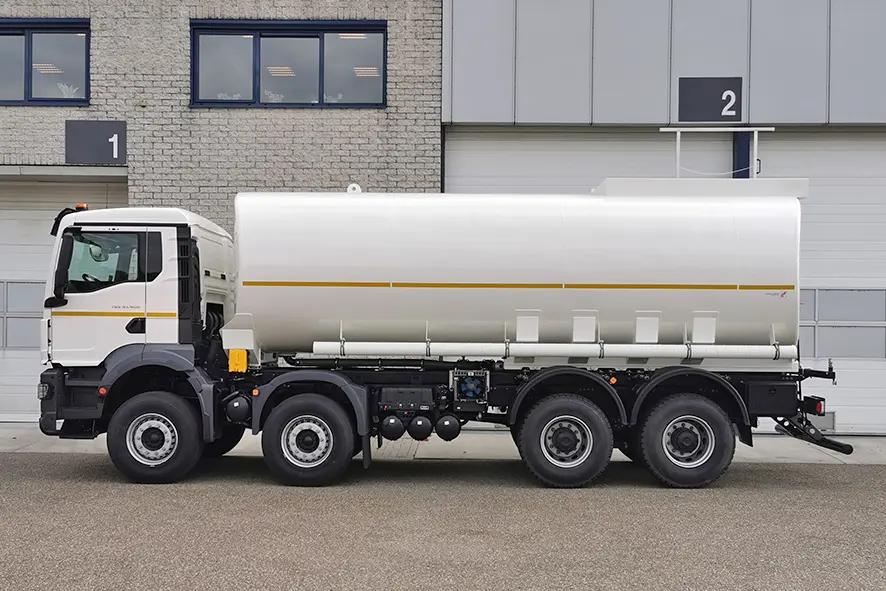

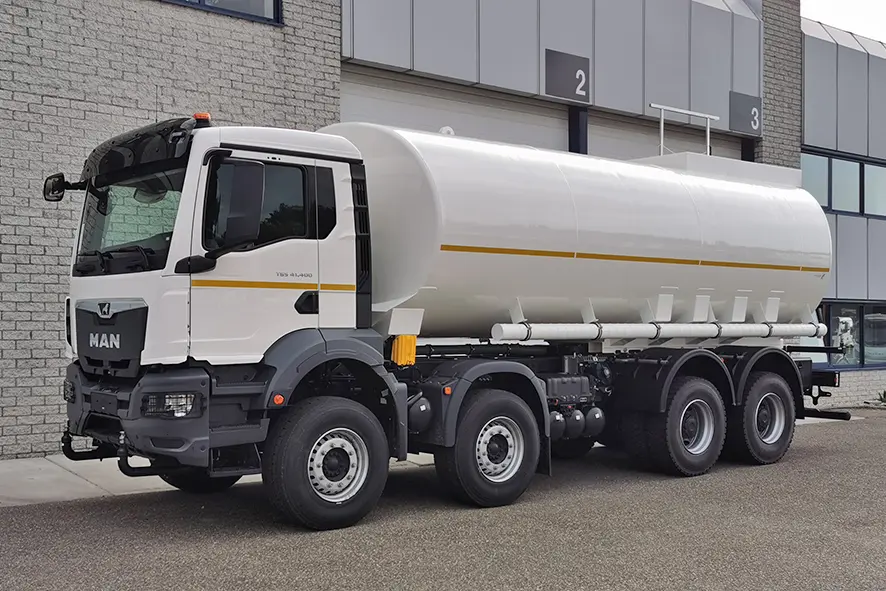

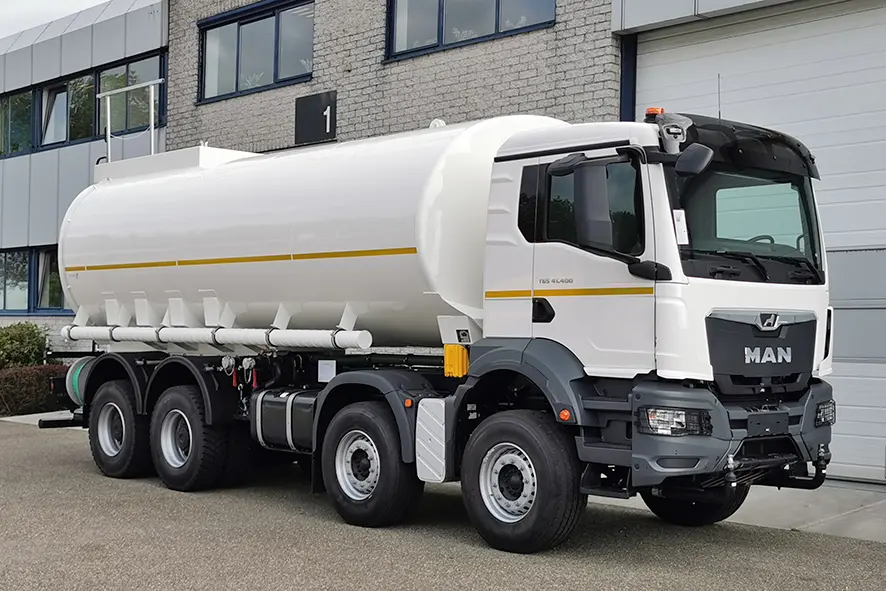

MAN TGS 41.400 BB CH 8x4 Water Tank Truck
8x4
400hp/294kW
EURO-2
Left hand drive
Price on request
Specifications
General
- ID
- VMA1582
- Brand
- MAN
- Construction
- Water Tank Truck
- Construction brand
- Lindner-Fischer
- Construction volume
- 28.000 Ltr.
- Fuel
- Diesel
- Production year
- 2023
- Model year
- 2023
- Vehicle status
- New / Unused
Engine
- Engine type
- D2066LF06
- Emission code
- EURO-2
- Engine power
- 400hp/294kW

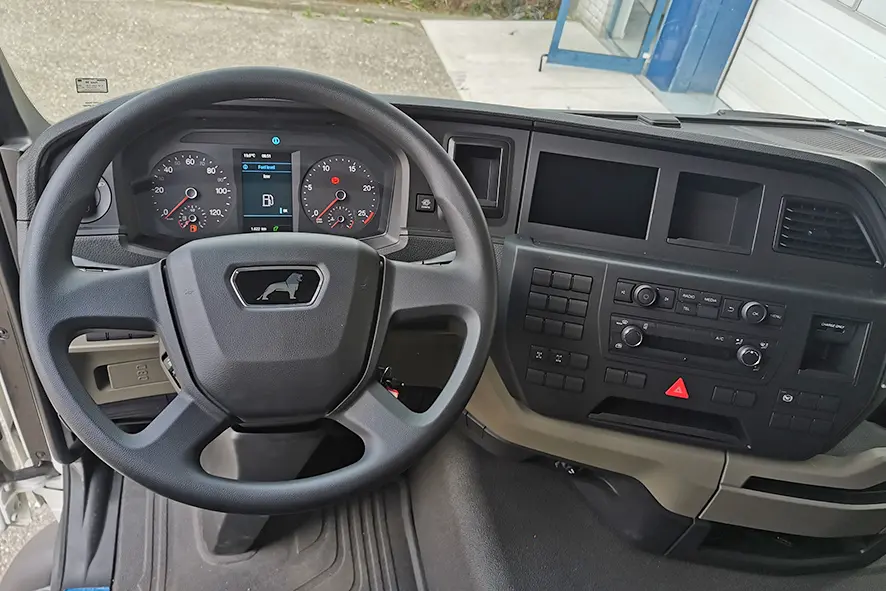

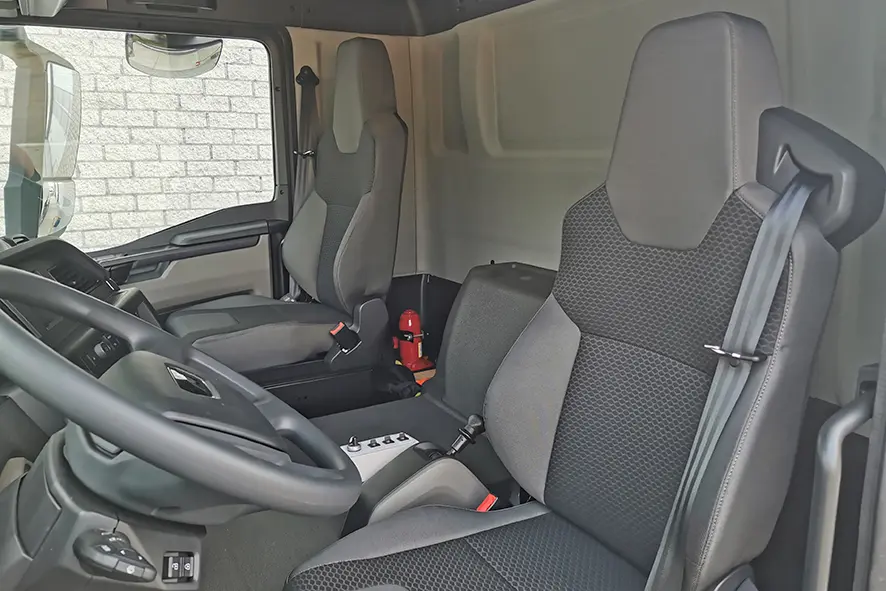

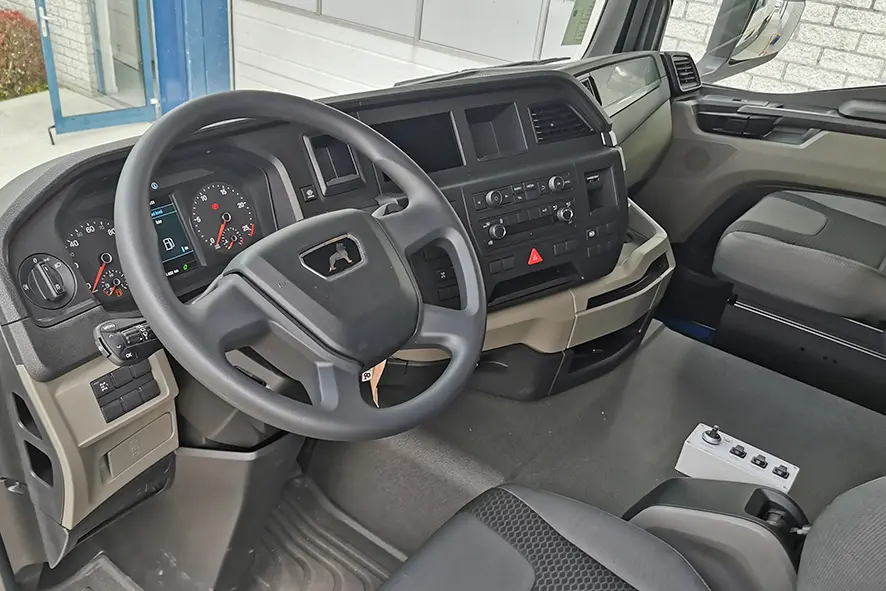

Cabin
- Cabin
- Day
- Steering
- Left hand drive

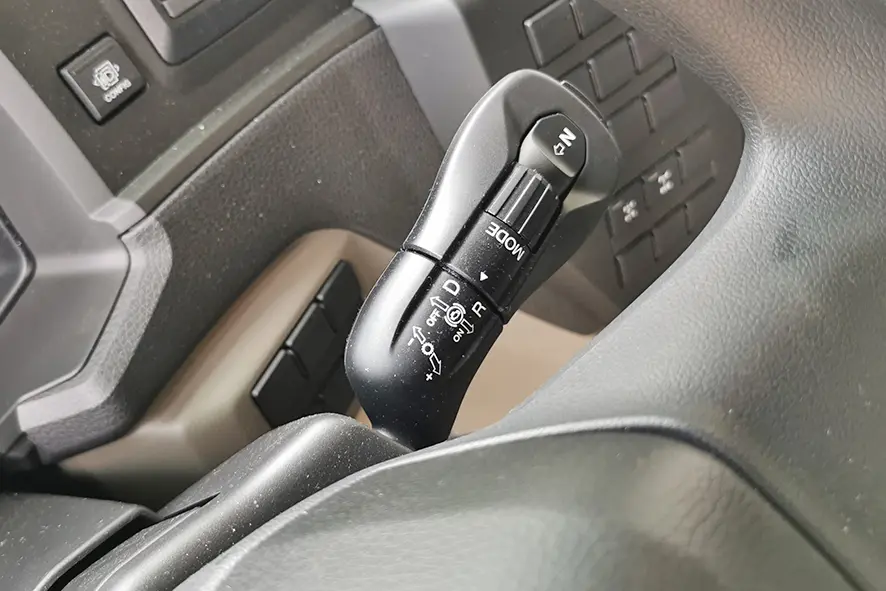

Gearbox
- Transmission
- Automatic
- Gearbox
- TipMatic 12.28 OD
- PTO
- NH/4C
Chassis
- Wheel base
- 2.980 mm
- GVW
- 44.000 kg
- Axle configuration
- 8x4
- Suspension
- Spring
Dimensions
- External dimension
- 8.950 x 2.500 x 3.700 mm
- Empty weight
- 16.000 kg

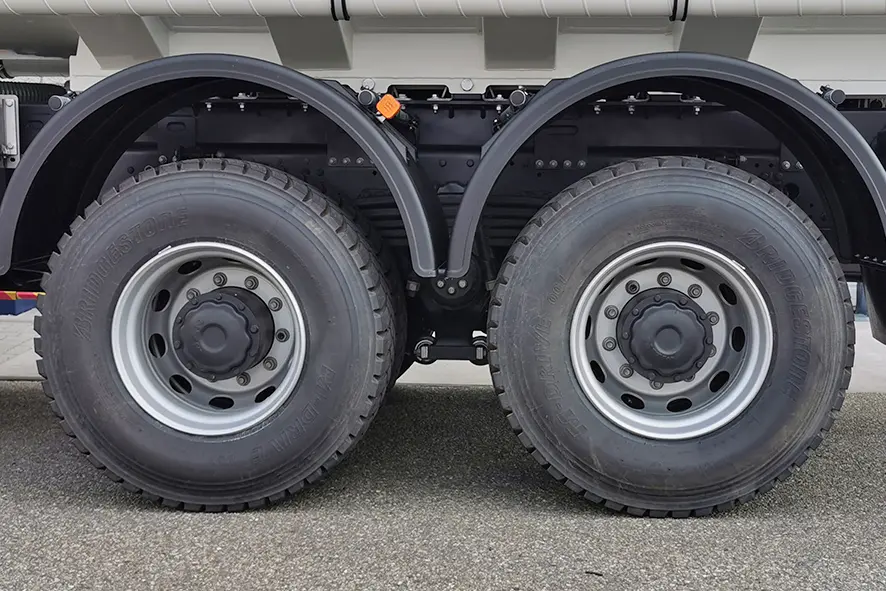

Axles
Axle 1
- Steering
- Yes
- Tires
- Single
- Brakes
- Drum
- Suspension
- Spring
- Driven
- No
- Tire size
- 385/65R22.5
Axle 2
- Steering
- Yes
- Tires
- Single
- Brakes
- Drum
- Suspension
- Spring
- Driven
- No
- Tire size
- 385/65R22.5
Axle 3
- Steering
- No
- Tires
- Double
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes
- Tire size
- 315/80R22.5
Axle 4
- Steering
- No
- Tires
- Double
- Brakes
- Drum
- Suspension
- Spring
- Driven
- Yes
- Tire size
- 315/80R22.5
Remarks
Fuel tank: 300 ltr.Air conditioning

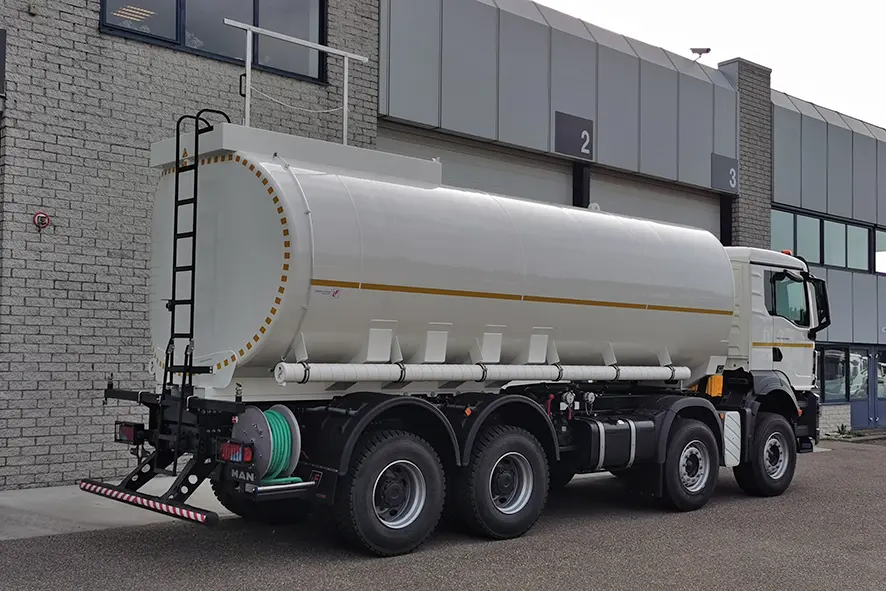

Equipped with 28.000 ltr. Lindner & Fischer water tank:
Type: TA280SW
One compartment
Transport and distribution of drinking water

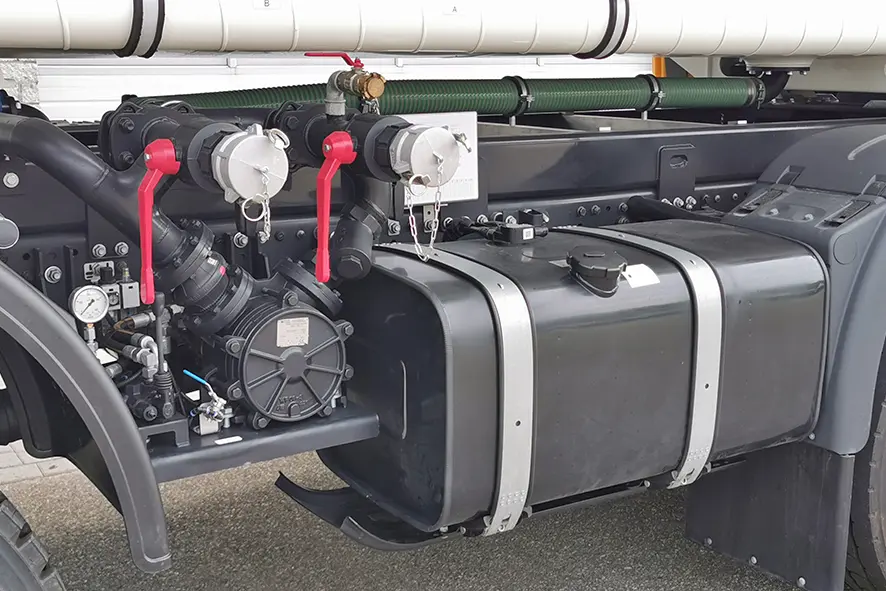

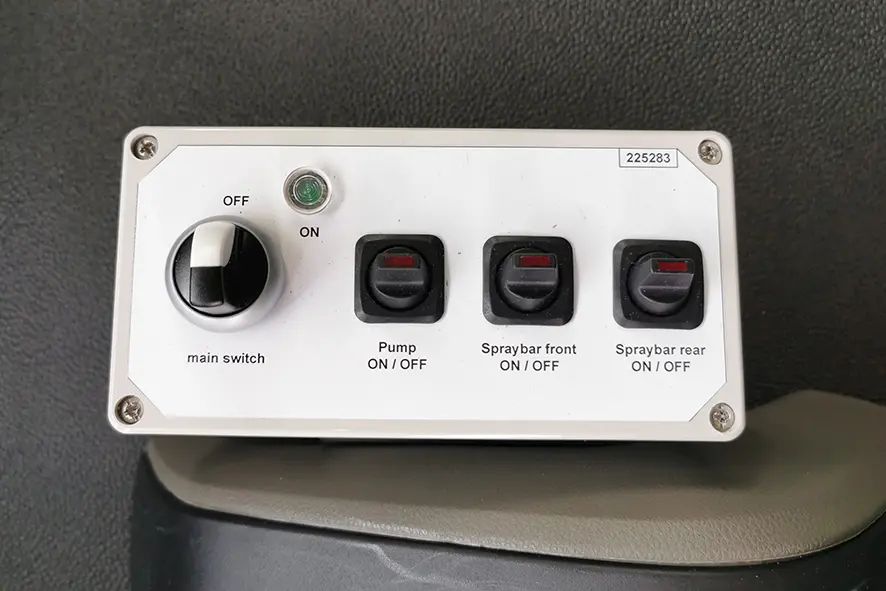

PTO driven water pump

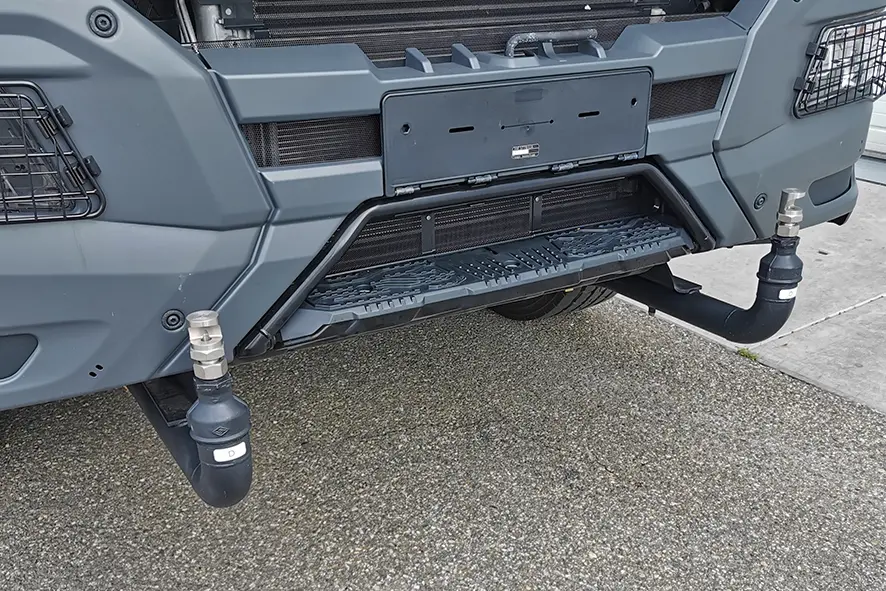

Front and rear mounted spray bar with two special fan-nozzles (frog-type) pressure working
for operation with pump.
Adjustable spraying width with pump from approx. 10 to 12 mtr.

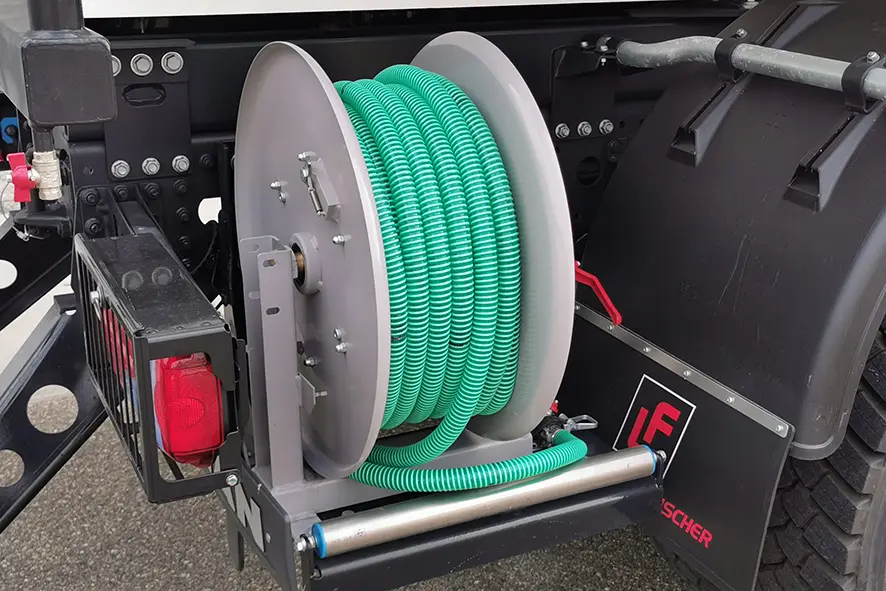

One hose reel, spring loaded, with 20m hose x 1 inch and manual discharge nozzle, mounted at appropriate position.

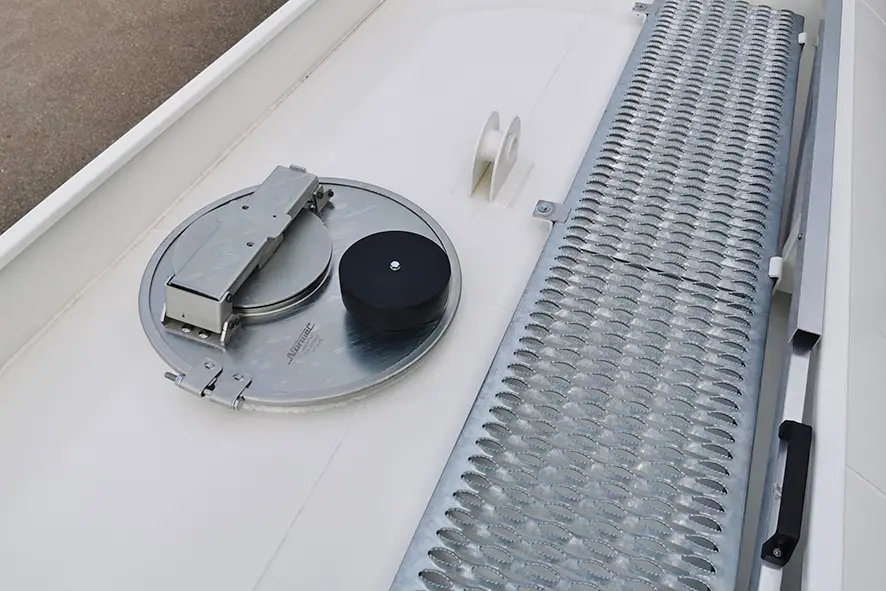

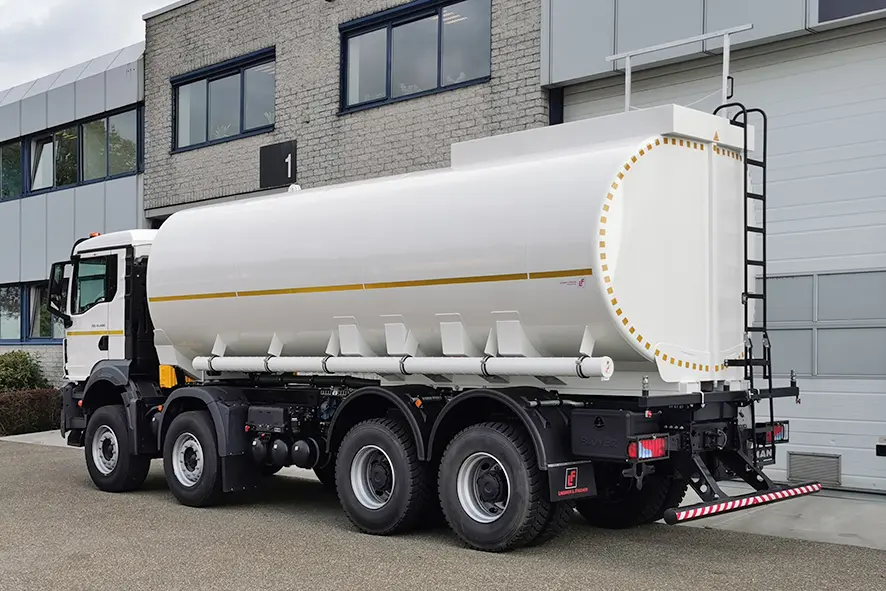

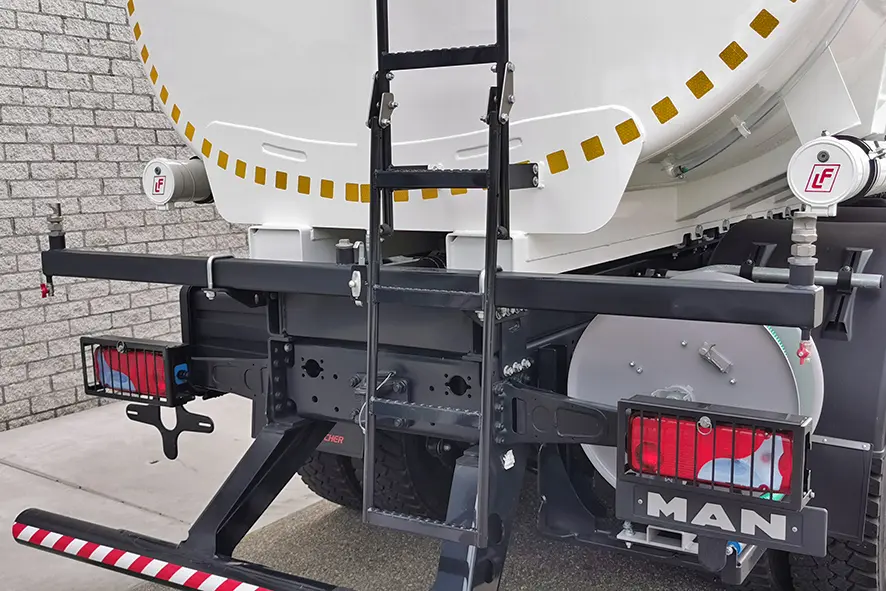

Open mesh walkway on the right-hand side of the manhole cover, with rear mounted foldable access ladder.
Pre-Order Status:
Approximately 10 / 12 weeks delivery time. Please contact us for further information.
Complete specification in pdf.
